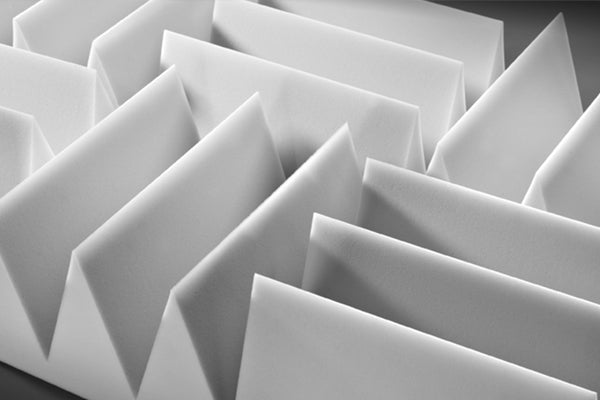

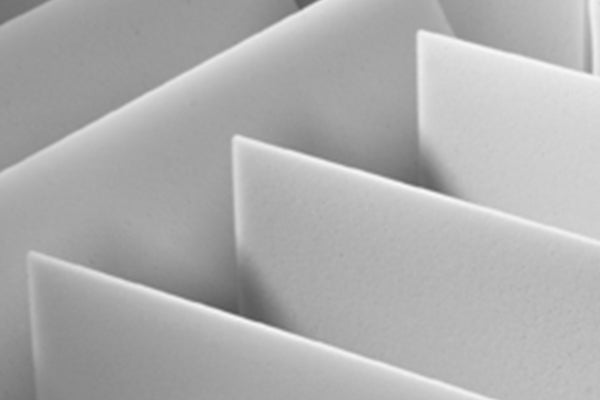

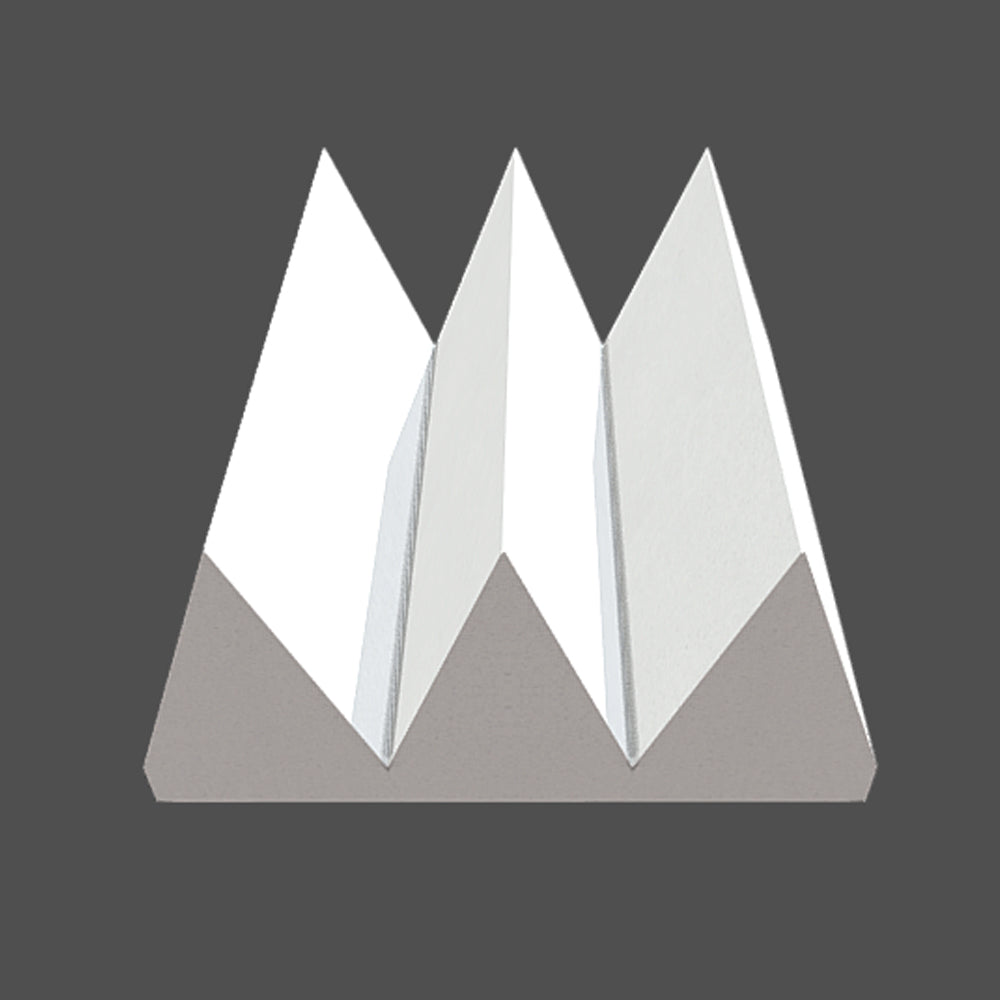

3-Point Acoustic Wedges

Experience unparalleled sound quality with our Melamine Acoustic 3-Point Wedge. Designed for optimal sound diffusion and absorption, these wedges enhance your listening environment by reducing echoes and reverberations. Elevate your experience with precision-engineered acoustics in a sleek, modern design.

Part Number: TA-007
Get A Quote
View full details

In critical listening and interior noise-sensitive spaces where proper sound management is of critical importance, TECHLITE® continues to be at the forefront of acoustics innovation. All of our products provide both superior sound absorption as well as a decorative solution to noise control for any type of interior space.

We’d like to believe we are quite creative here at TECHLITE®, which indeed translates to acoustical and architectural solutions that satisfy both form and function. TECHLITE® 3-Point Wedge Panels are designed to mitigate acoustical problems in large cubic volume spaces such as auditoriums, theaters, gymnasiums, industrial buildings to help comply with OHSA regulations and any large venue where there is reinforced sound such as sports arenas. The wedges are designed at 6″ thick and their acoustical performance in the low frequencies is second to none, boasting a Noise Reduction Coefficient (NRC) 1.25 and are 58% absorptive at 125 Hertz in accordance with ASTM C 423-17 Standard Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method.

The 3-Point Wedge Panels can be direct-applied to ceilings, can be laid in pre-engineered suspension systems and adhered to walls, the latter being their most common application. They can be arranged to create various architectural patterns and effects, and they integrate exceptionally well with interior building mechanical, electrical and plumbing systems.

Acoustic Foam Sound Absorption Chart

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TechLite® foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TechLite® is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free
  • Very lightweight, easy install with construction adhesive or magnetic strip
  • Architecturally intriguing
  • Acoustically-tested in accordance with ASTM C423-17 for Sound Absorption
  • Provides the look of acoustics
  • Class A fire-rated per ASTM E 84
  • Highly sound-absorptive (NRC 1.25)
  • High Light Reflectance
  • LEED points


  • Size 12" x 12", Custom
  • Color Natural White Foam, Light Grey Foam, Custom Coated
  • Coated Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Thickness 6", 8", Custom
  • Material TECHLITE® Flexible Open-Cell Melamine Foam
  • Min. Service Temp. -40°F
  • Max. Service Temp. 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey) ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural) ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
