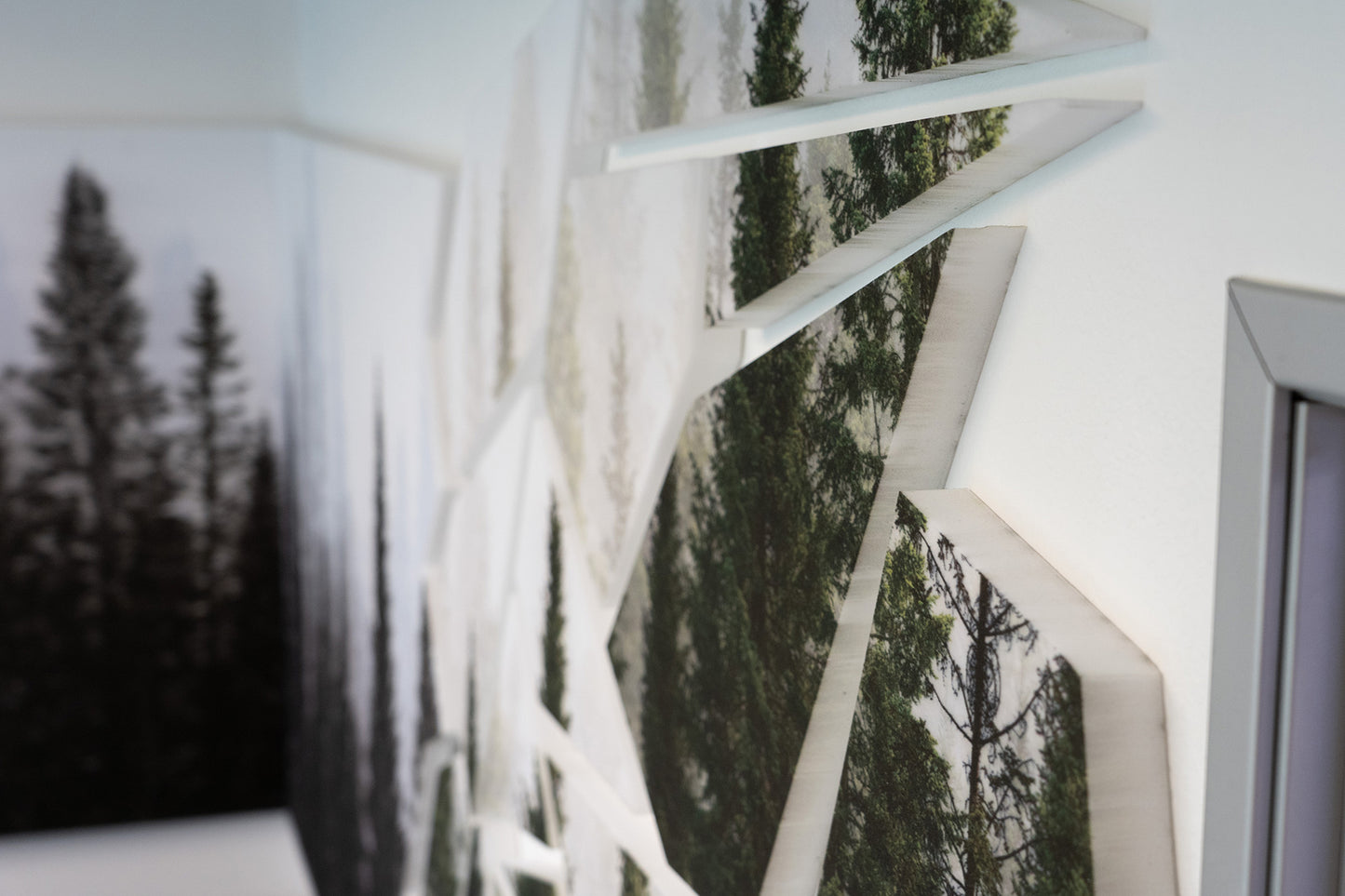

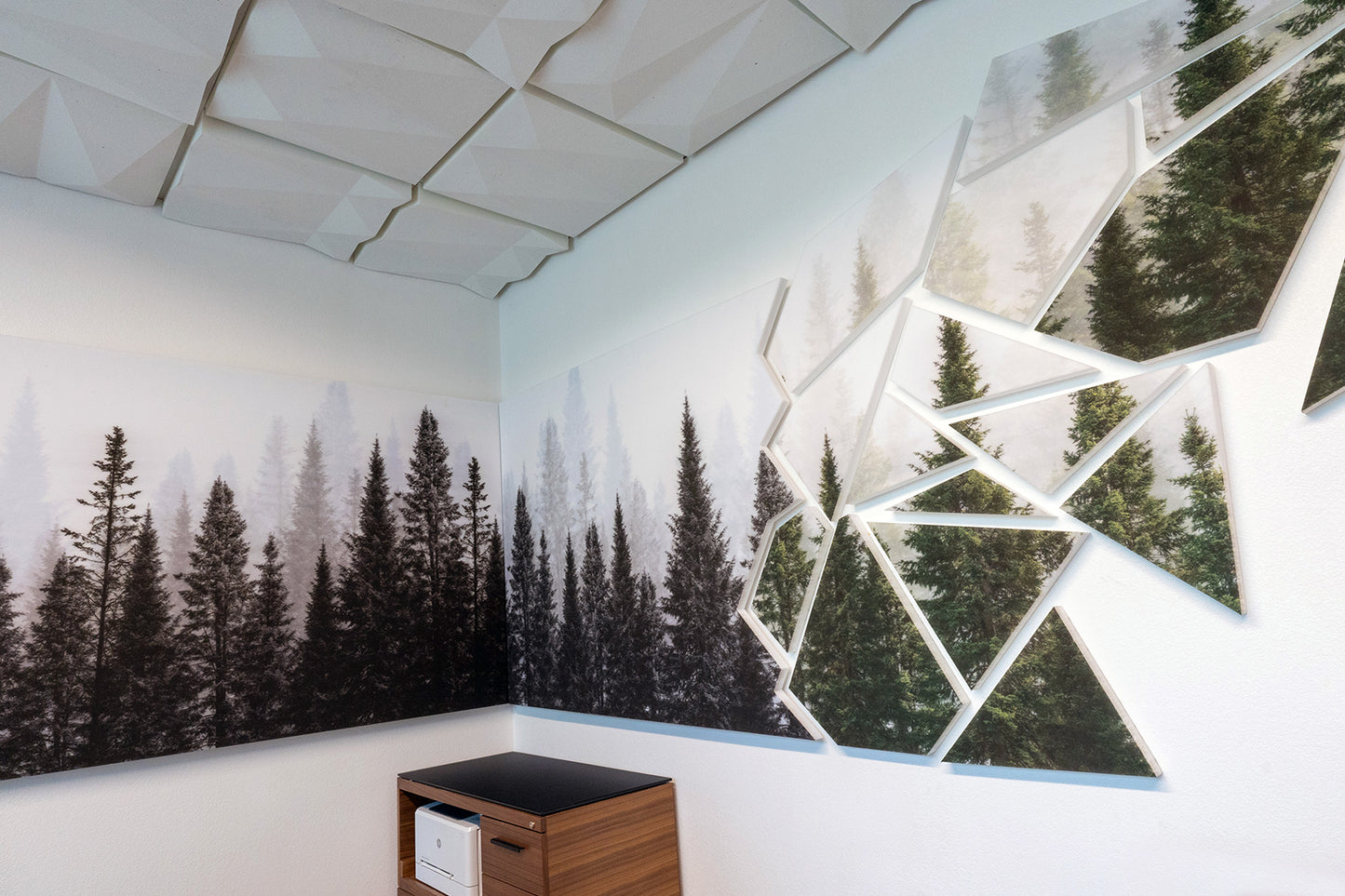

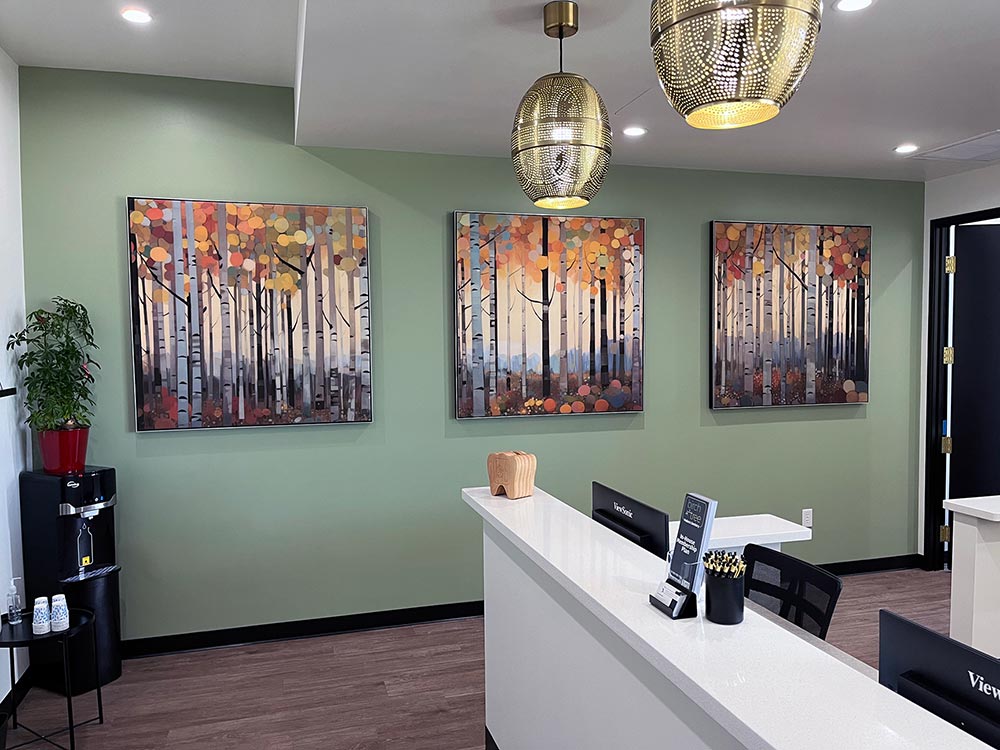

  • Birch Tree Forest Custom Printed Framed Acoustic Panels

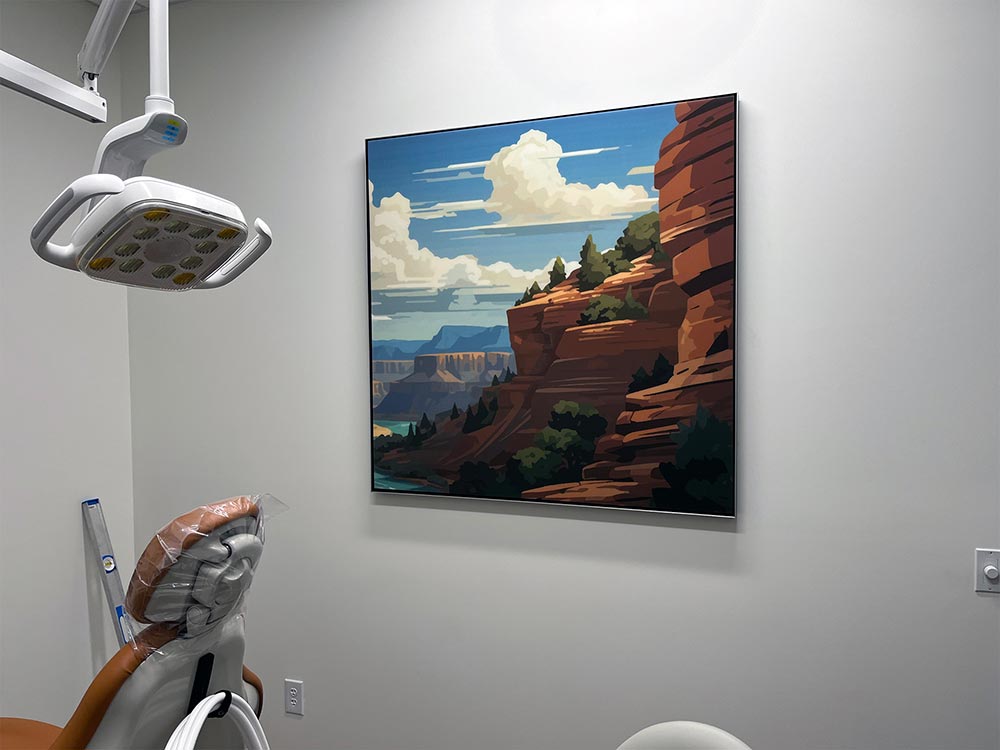

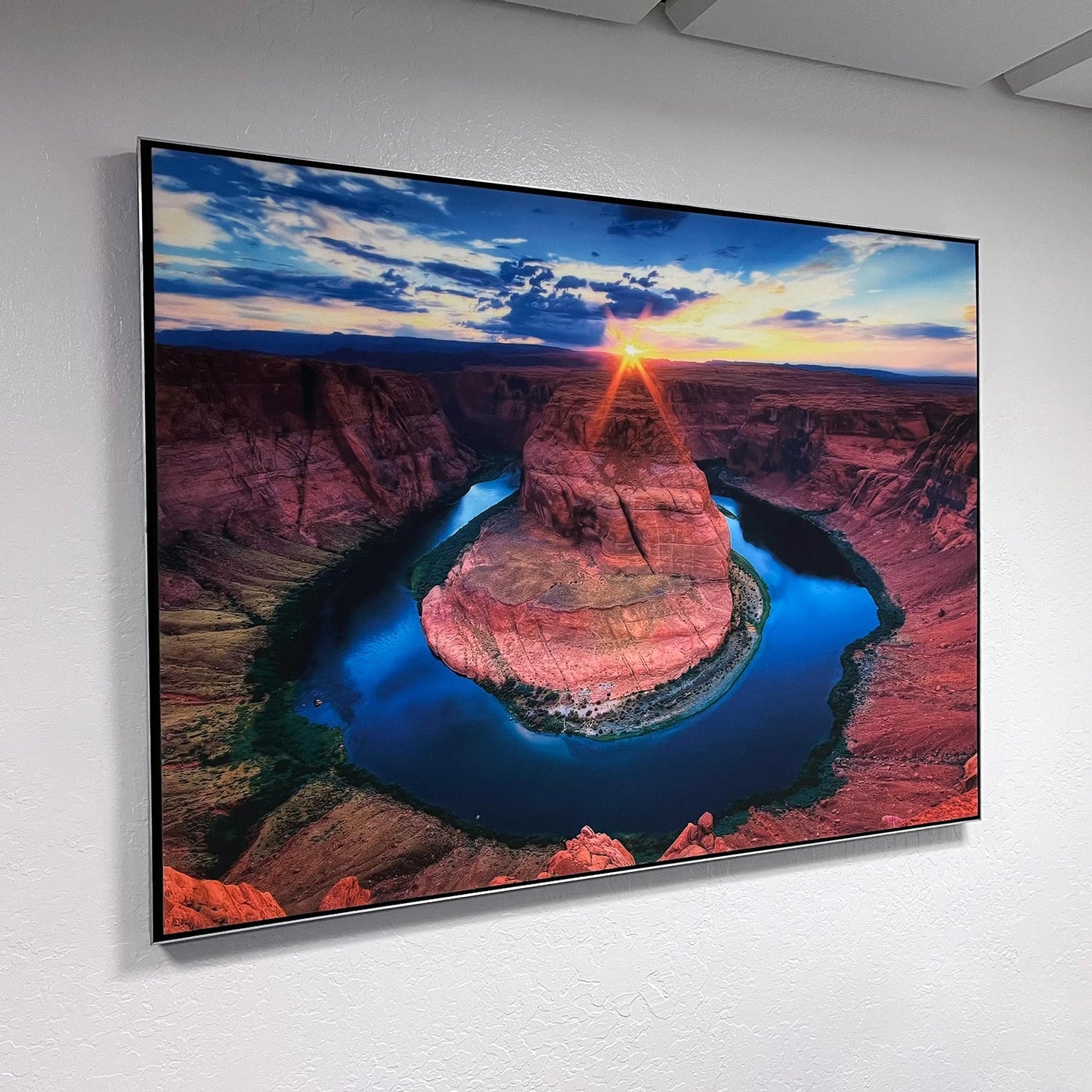

  • Grand Canyon Custom Printed Acoustic Panel

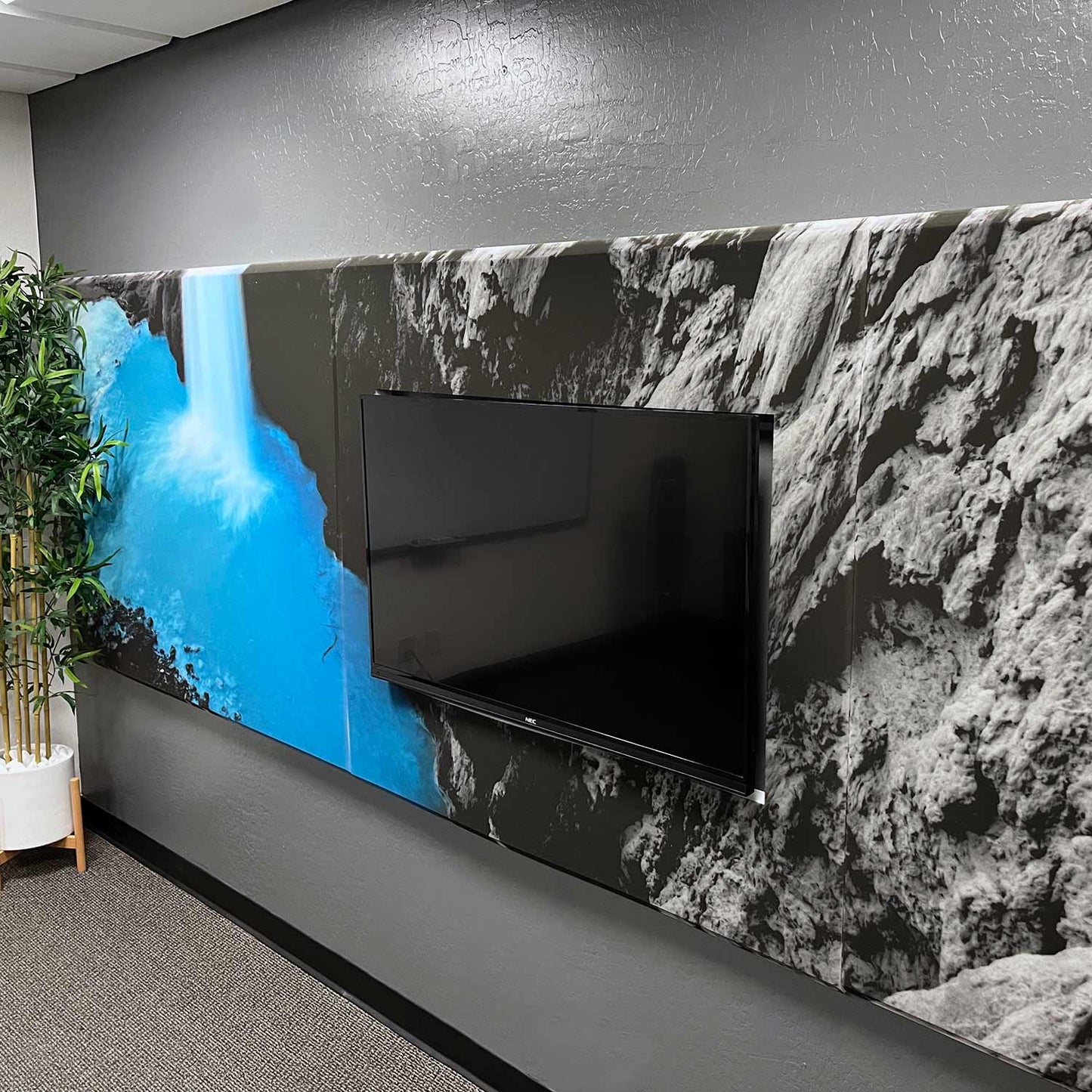

  • Custom Printed Mural Acoustic Foam

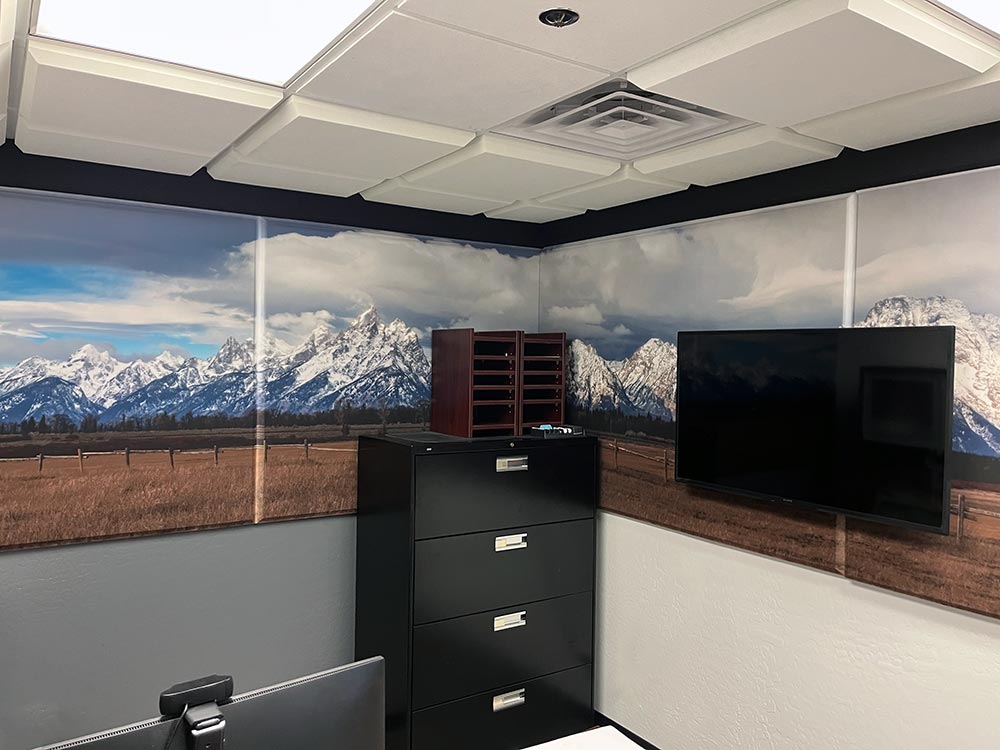

  • Mountain Landscape Custom Printed Acoustic Foam

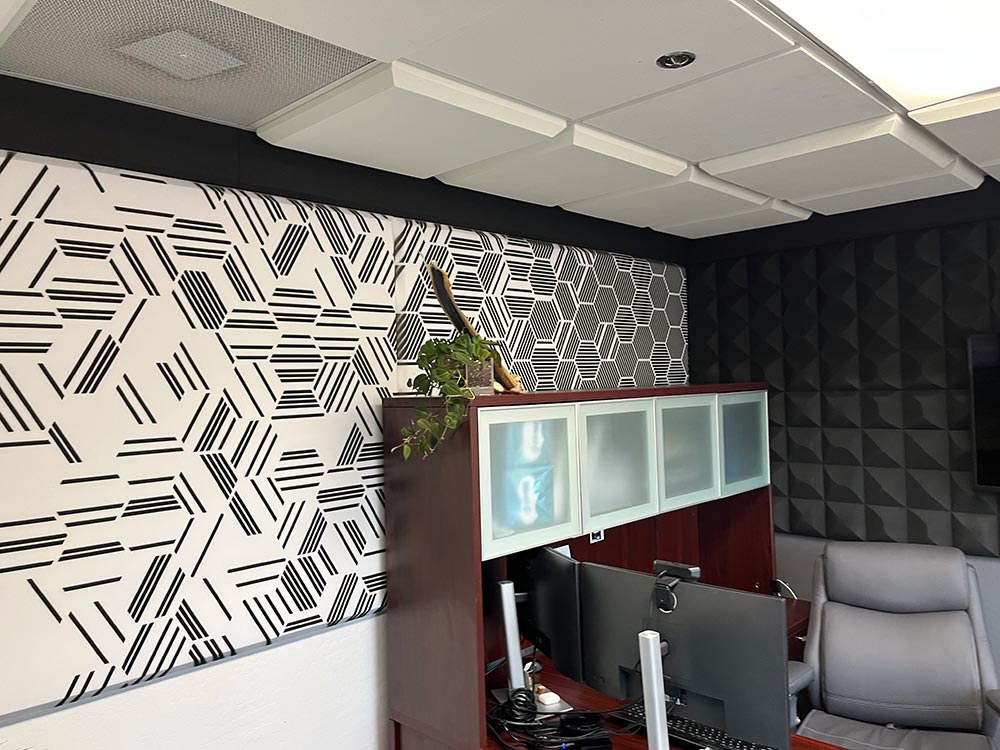

  • Abstract Custom Printed Acoustic Foam

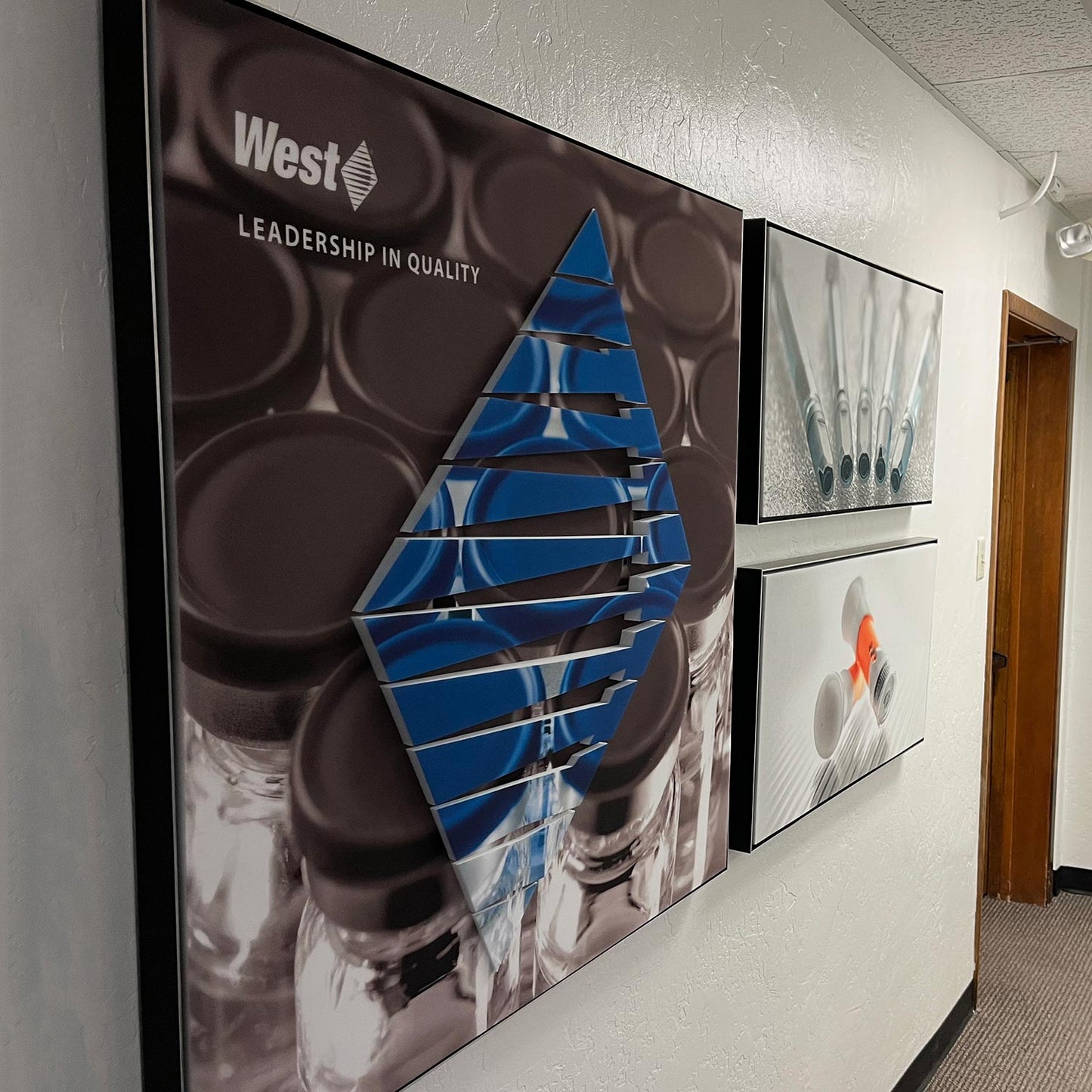

  • Custom Printed Framed Acoustic Foam with Relief

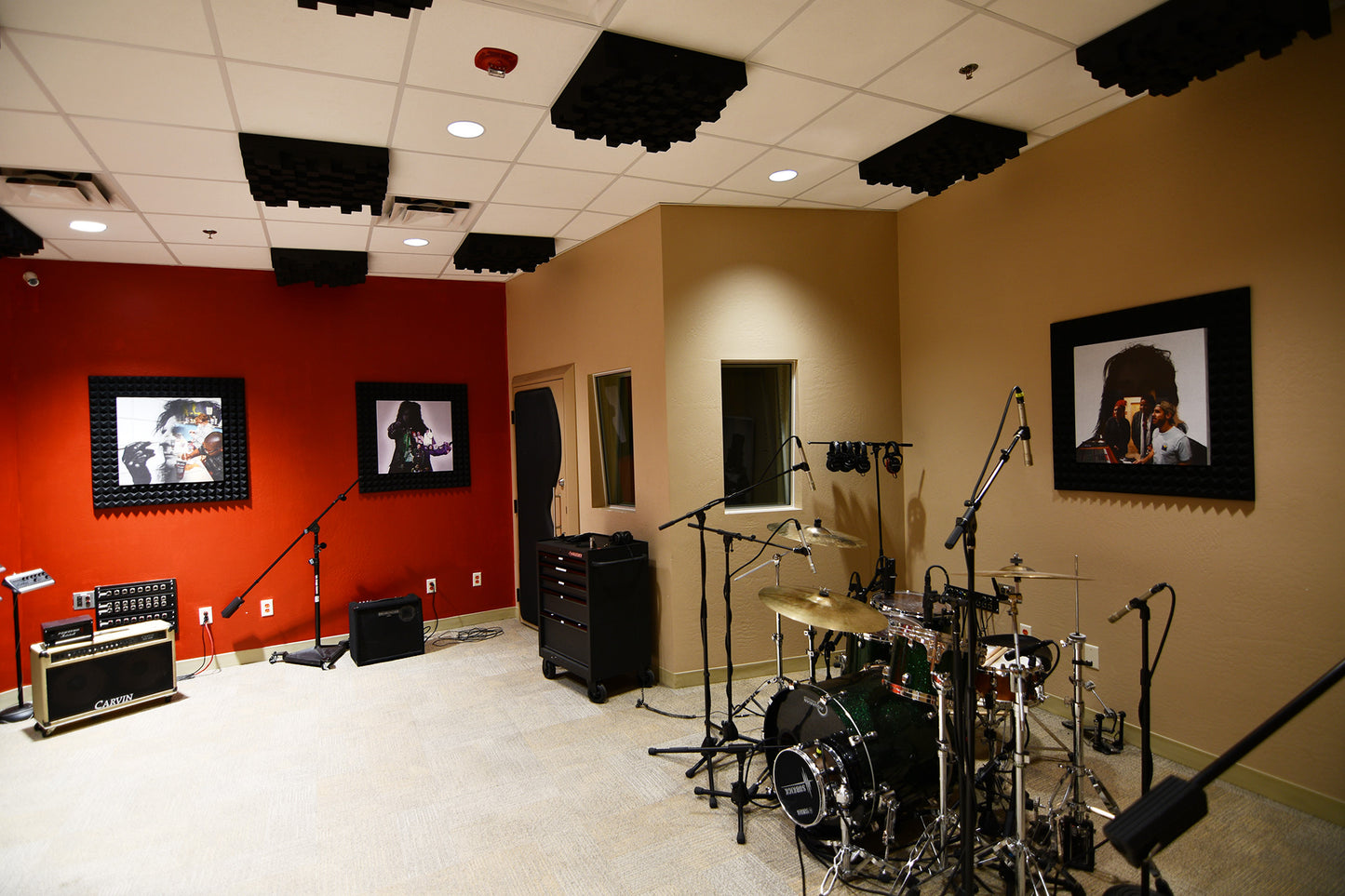

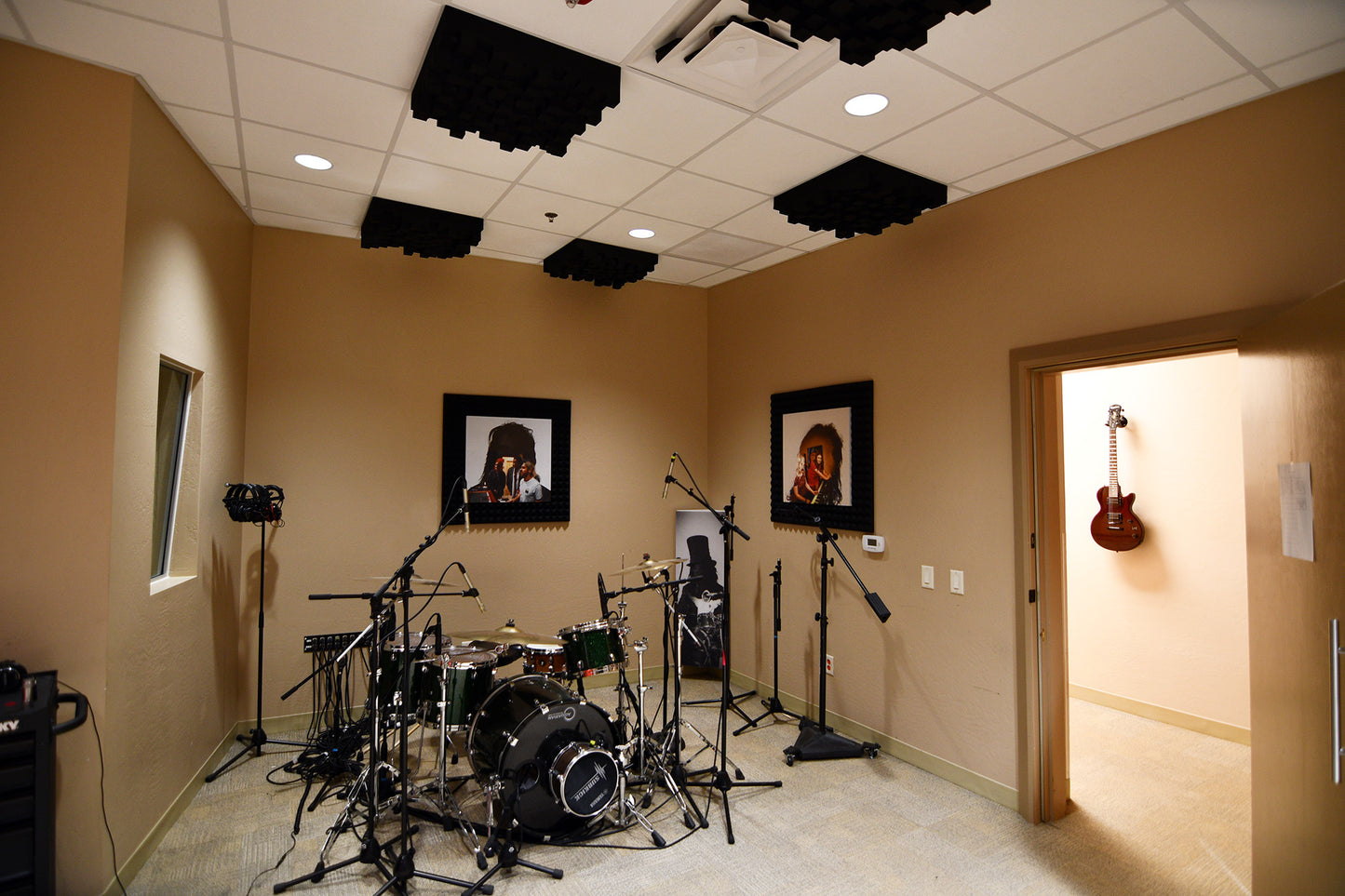

  • Studio Soundproofing with Custom Printing
  • Printed Recording Studio Acoustics
  • Acoustic Foam Sound Absorption Chart
1 13

Custom-Printed Acoustic Panels

Part Number: Custom
Get A Quote
View full details
Enhance the aesthetic appeal of your space while also improving the acoustics by turning your favorite artwork, graphic or logo into a custom-printed acoustic panel. Whether treating recording studios, control rooms, music rooms or open-office areas, TECHLITE® sound-absorbing panels are a perfect option to reduce echo and reverberation, improve speech intelligibility, and spark an immediate visual interest. Need help getting started? TECHLITE Acoustics™ provides consultation, design and custom manufacturing for virtually any sound attenuation application.

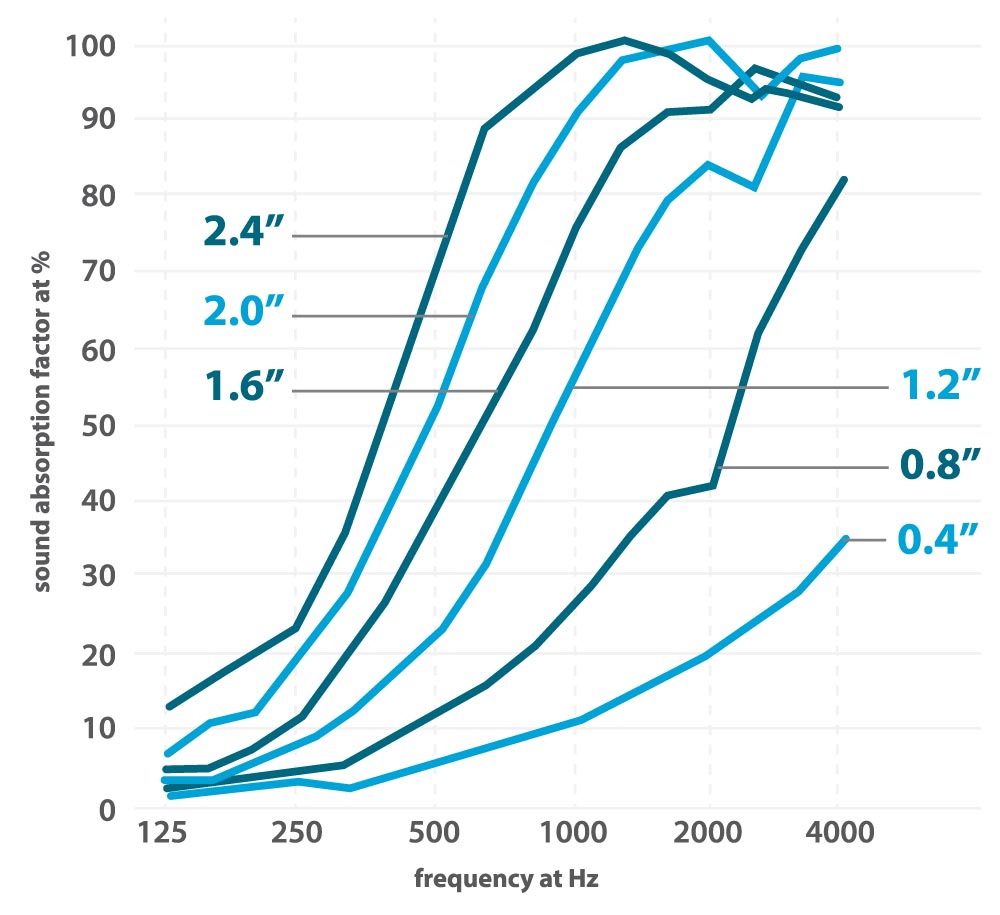

Acoustic Foam Sound Absorption Chart

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free
  • Very lightweight
  • Easy to install
  • Architecturally pleasing
  • Acoustically tested in accordance with ASTM C423-17 for Sound Absorption
  • Meets ASTM E 84 standards
  • Highly sound-absorptive (NRC)


Uses and Applications

  • Post Production and Recording Studios
  • Control Rooms
  • Live Broadcast Studios
  • Editing Suites
  • Live Performance Venues
  • Music Classrooms, Band / Choral Rooms
  • Gymnasiums
  • Open-Office


Downloads

  • ASTM E-84 Test Summary Report - Natural White Melamine
  • ASTM E-84 Test Summary Report - ATC Coating
  • Buy America Certification
  • Basotect G SDS
  • Basotect B SDS
  • Digital Print File Preparation

    • STANDARD VS CUSTOM CUTS

    • STANDARD CUT

      Standard Digitally Printed Acoustic Panels

      Straight cuts only (square/rectangle)

    • CUSTOM CUT

      Custom Shaped Digitally Printed Acoustic Panels

      Any shape or configuration of shapes

    • STRAIGHT EDGES

      Straight Cut Edge Printed Acoustic Panels

      90° white edges with no print

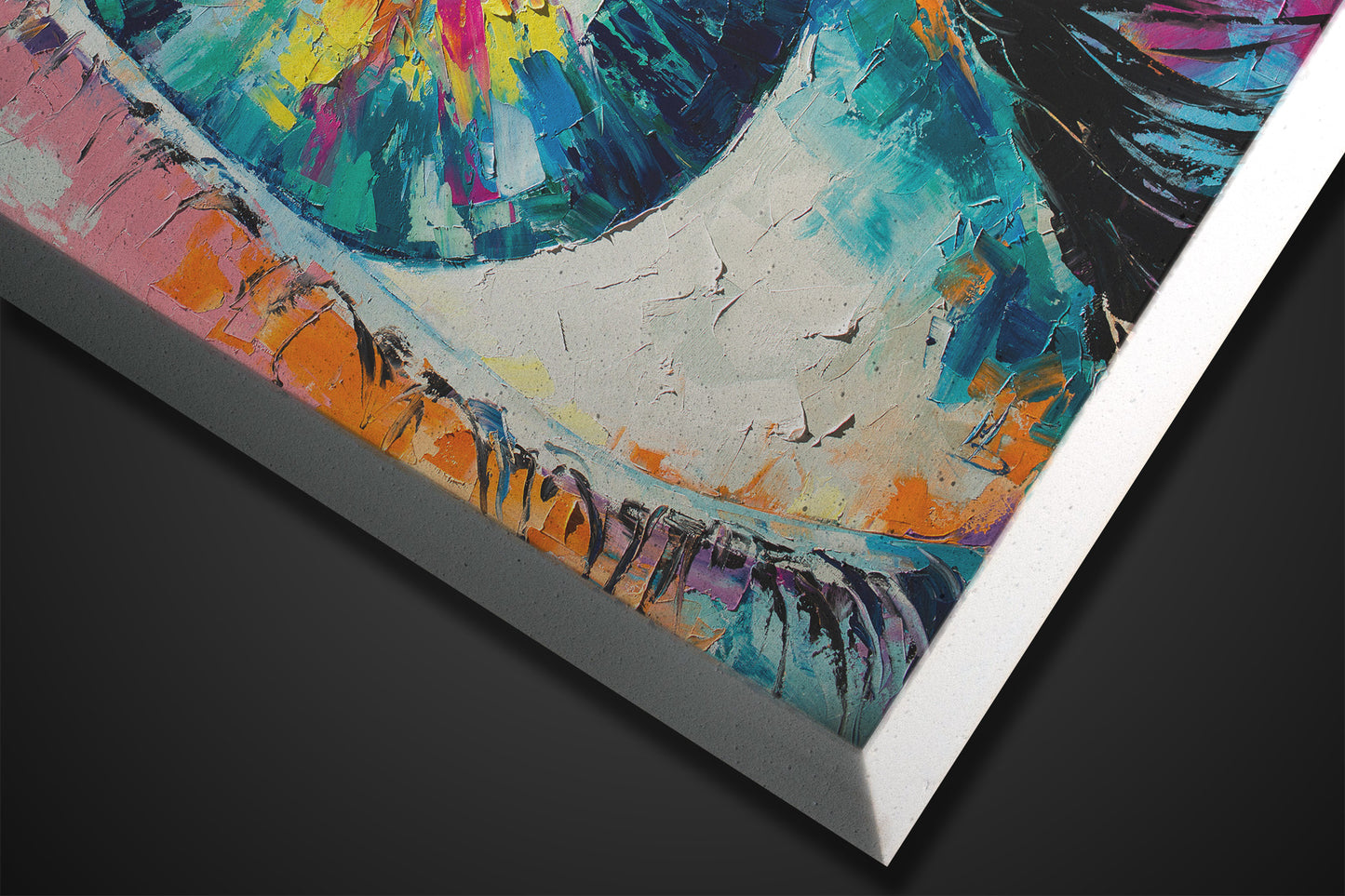

    • BEVELED EDGES

      Beveled Edge Acoustic Digital Printed Panel

      45° printed edges (print on beveled sides will be blurred/out of focus)
    Custom Shaped Digitally Printed Acoustic Panels
    Glue

    CUSTOM CUT

    Any shape or configuration of shapes

    Straight

    STANDARD CUT

    Straight cuts only (square/rectangle)

    Applied

    Applied Ceiling Tiles

    TECHLITE® Applied Ceiling Tiles Are The Natural Choice When You’re Looking For A Way To Combine Contemporary Styling With Exceptional Acoustic Control At A Moderate Price.

    Any shape or configuration of shapes

    HOW TO SET UP YOUR ARTWORK FOR PRINTING

    Proper file setup is crucial for achieving the best results when printing digital designs onto acoustic panels. To ensure clarity and precision, it's essential to provide files in the correct format, typically high-resolution images or vector graphics. Images should have a resolution of at least 300 DPI (dots per inch) to maintain sharpness and detail. Vector files, on the other hand, guarantee scalability without loss of quality, making them ideal for intricate designs. Additionally, it's important to include bleed and trim marks in the design to ensure accurate cutting and alignment during printing and installation. By adhering to these guidelines, you can ensure that your digital printed acoustic panels will have crisp, vibrant designs and a professional finish.

    TRIM AREA: Represents finished foam product dimensions. To be 1” less from frame dimensions. Example: Frame is 24“ x 36”, Foam would be 23“ x 35”.

    SAFE AREA: Keep all important graphics and text at least 1” away from the trim area.

    BLEED AREA: Extend background graphics 0.50” past the trim area. This will ensure that the finished product will be fully printed, edge-to-edge in the event there is any shifting during the cutting process.

    ACCEPTABLE FILE FORMATS: JPEG, TIFF, PDF, PSD (Adobe Photoshop)

    VECTOR FILES ACCEPTED: PDF, AI, and EPS

    FILE RESOLUTION: 300 DPI

    Note: If the image does not have the native resolution required, enlarging it will not increase the pixel count, it will only decrease the quality of the image.
