Pipe Insulation Fittings & Inserts

Discover unparalleled ease of installation with our melamine foam preformed pipe insulation fittings. Engineered to provide the best coverage, these fittings offer quick installation and superior performance. Upgrade your piping system with confidence and ensure long-lasting performance with our high-quality melamine foam pre-formed pipe fittings.

Get A Quote
View full details

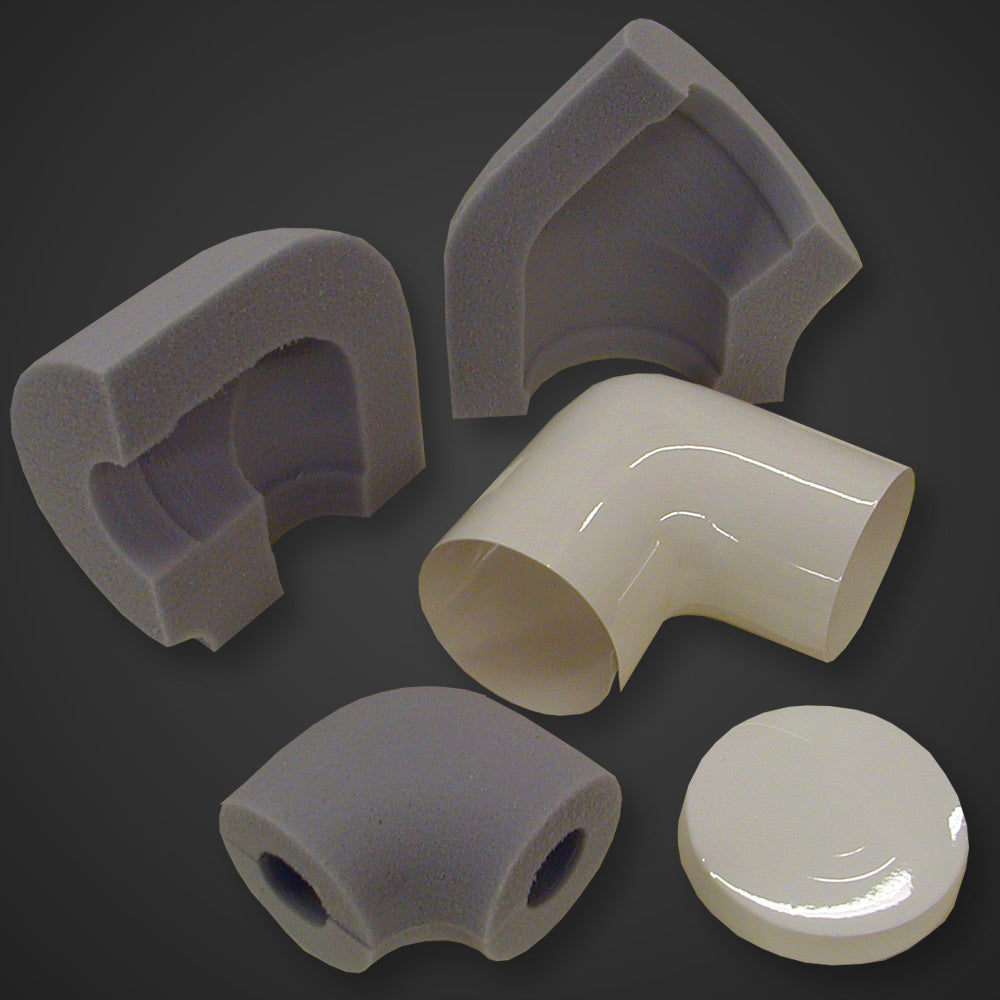

TECHLITE fitting insulation inserts are available in preformed or diaper form. The preformed insulation inserts are precision ground to provide a good fit within the pipe tolerances. The diapers are conditioned at the factory to allow added flexibility to the TECHLITE. Fabricated from high temperature melamine foam, the foam fittings and insulation elbows have a service temperature of -150°F to 350°F. White or color coded low smoke 20 mil PVC fitting covers are also available. The PVC covers are UV inhibited and resistant to harsh weather conditions and many chemicals.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Easy to install
  • No special tools required
  • Color coded
  • Indoor and outdoor use

Uses and Applications

  • 90°s, 45°s, Tee’s
  • Flanges
  • Victaulic’s
  • Many more

Physical Properties

  • Insulation Material: Flexible Open-Cell Melamine
  • Service Temperature: -40°F to 350°F
  • Density: 0.44 ± 0.19 lb/ft3
  • Thermal Conductivity (K Factor) @75°: 0.27 btu-in/hr-ft2-°F
  • Flammability: 25/50 per ASTM E84
  • Standard Thickness: 1″,1.5″, 2″, 2.5″, 3″
