Pipe Lagging

Introducing our premium Melamine and Mass Loaded Vinyl pipe lagging: the ultimate solution for thermal and acoustic insulation. Crafted with high-quality materials, this lagging offers exceptional heat resistance and noise reduction, ensuring efficient energy usage and a quieter environment. Say goodbye to heat loss and unwanted noise – upgrade to our Melamine and Mass Loaded Vinyl pipe lagging today.

Part Number: TA-008
Get A Quote
View full details

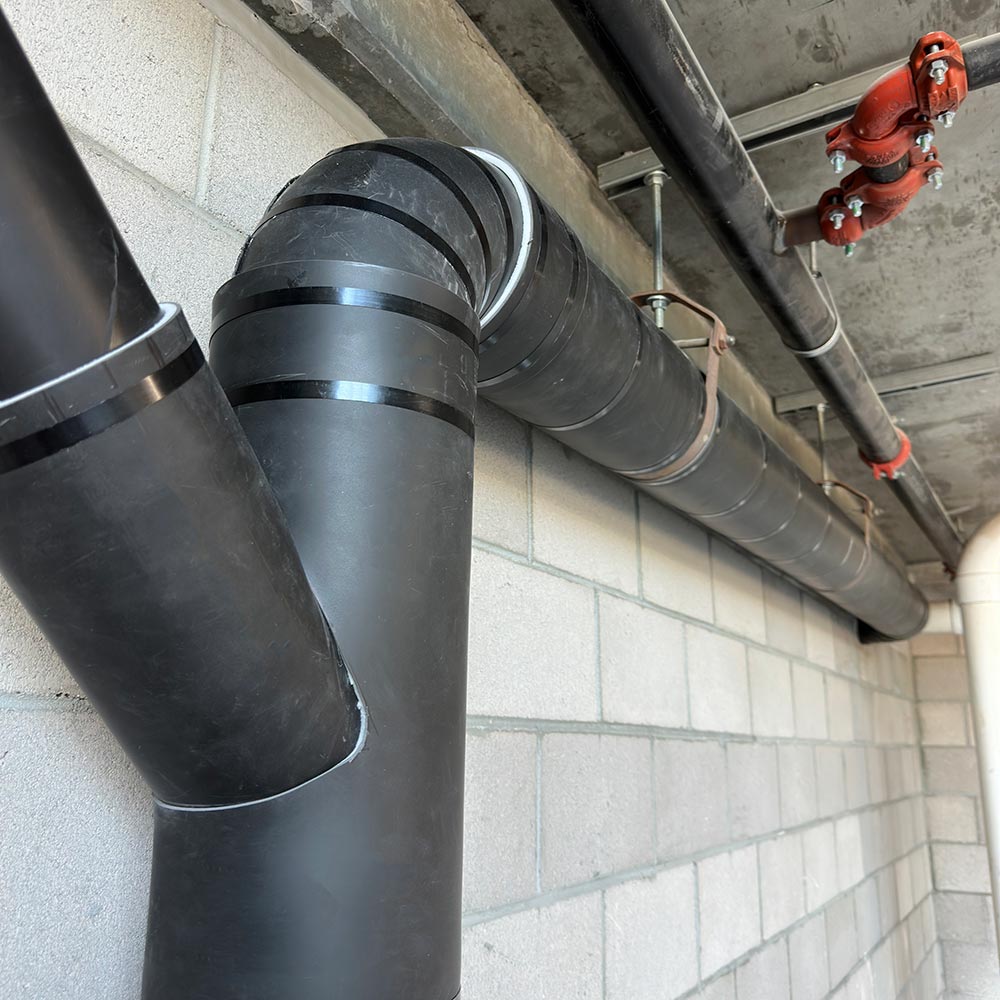

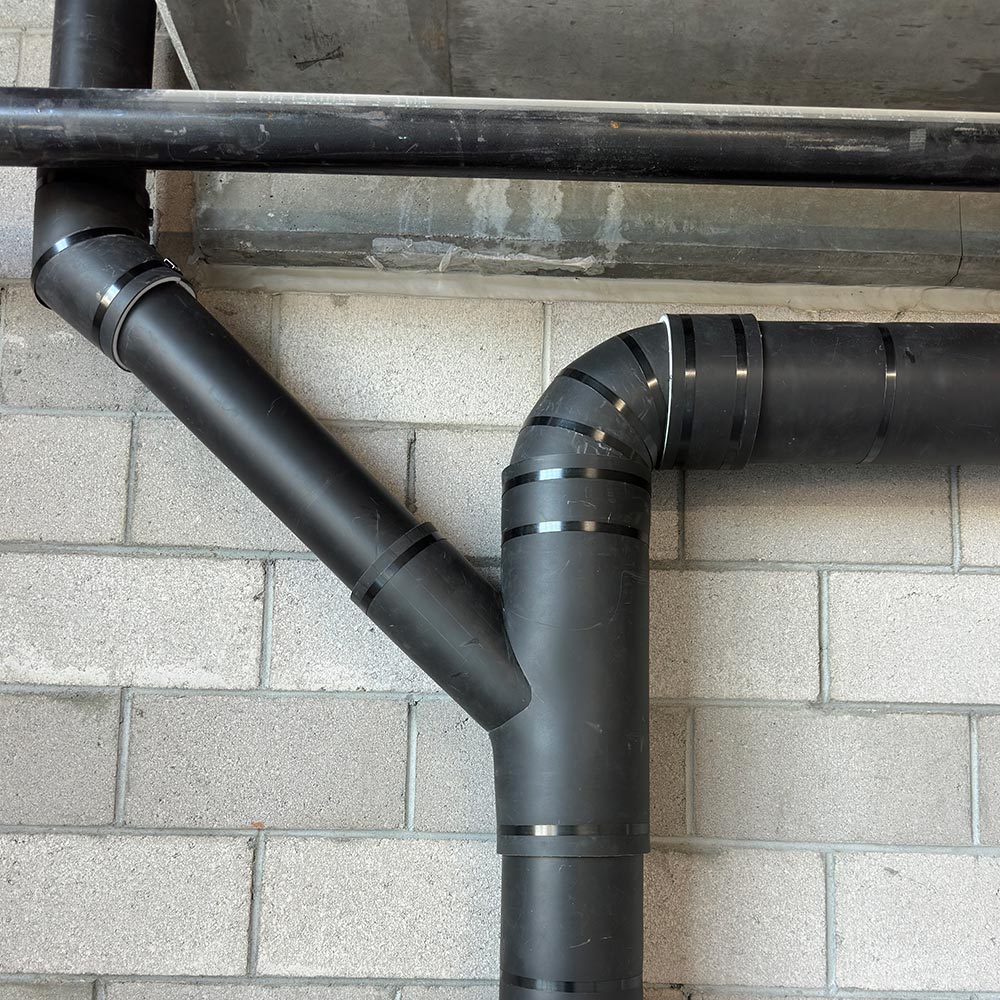

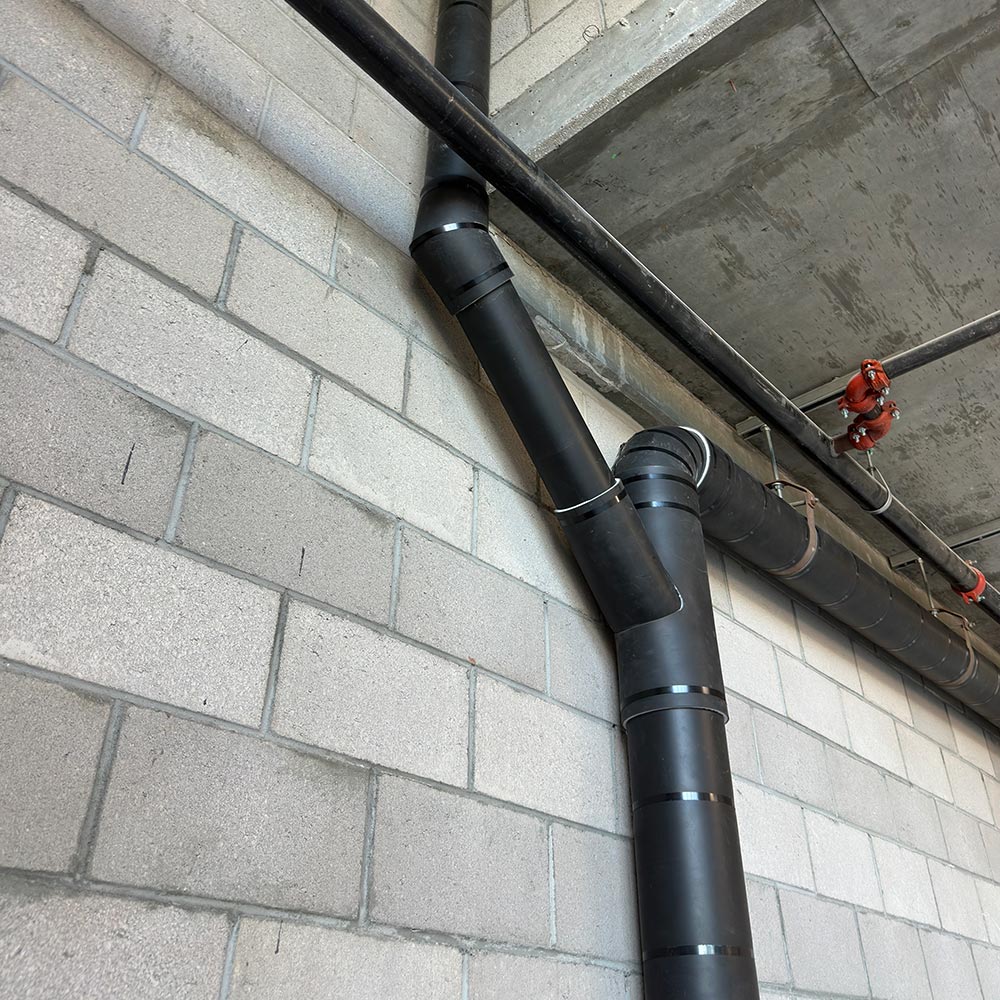

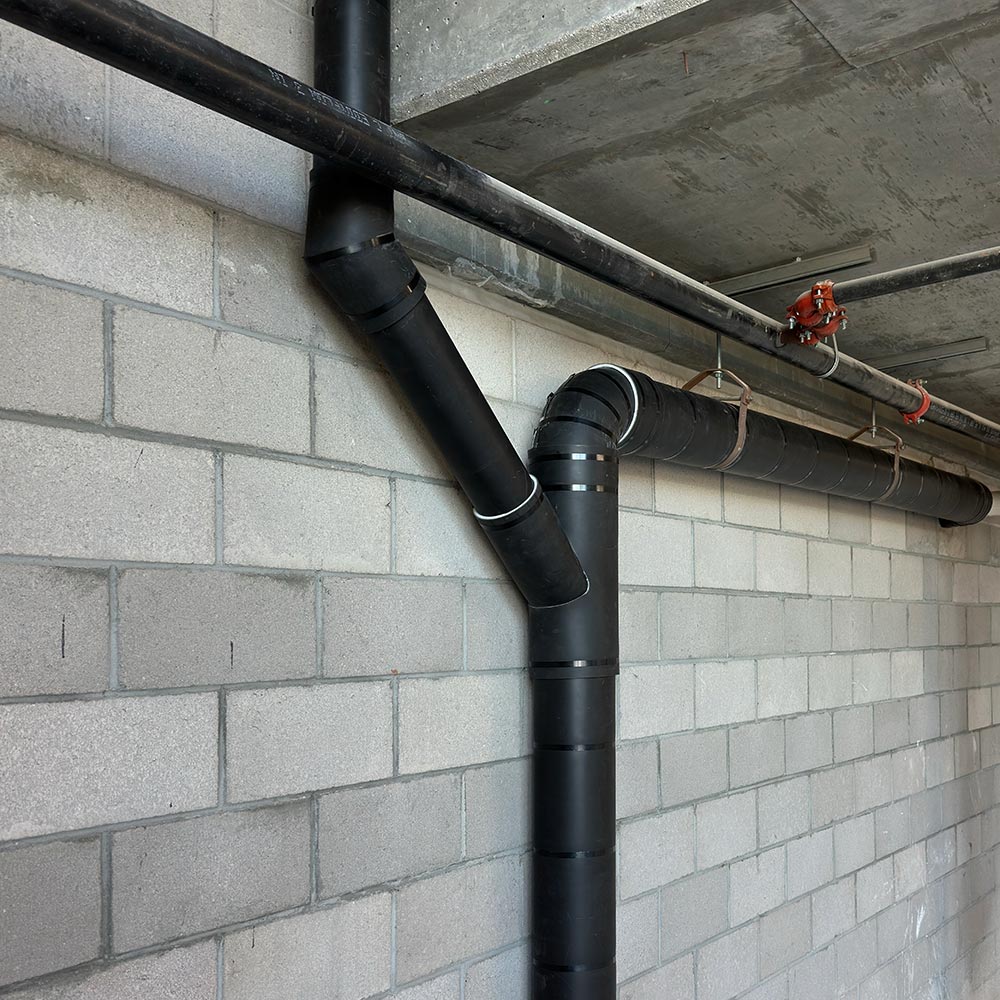

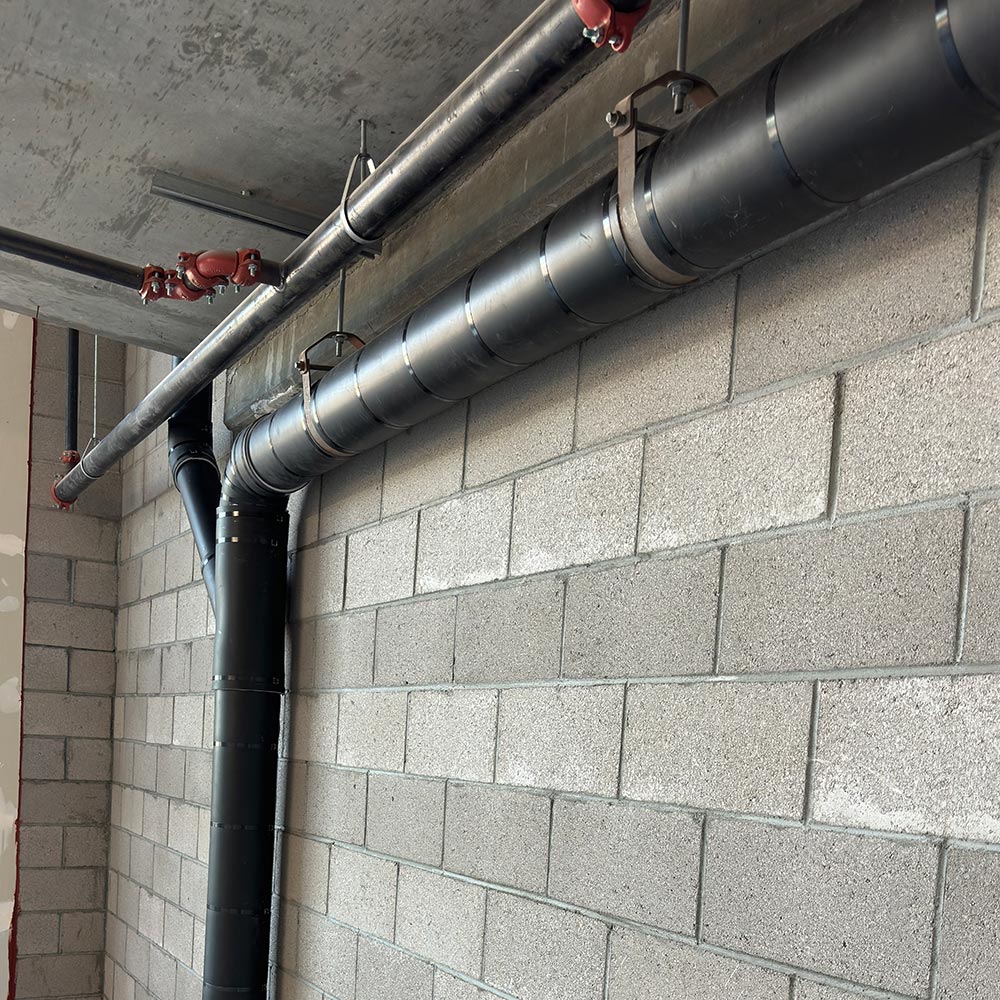

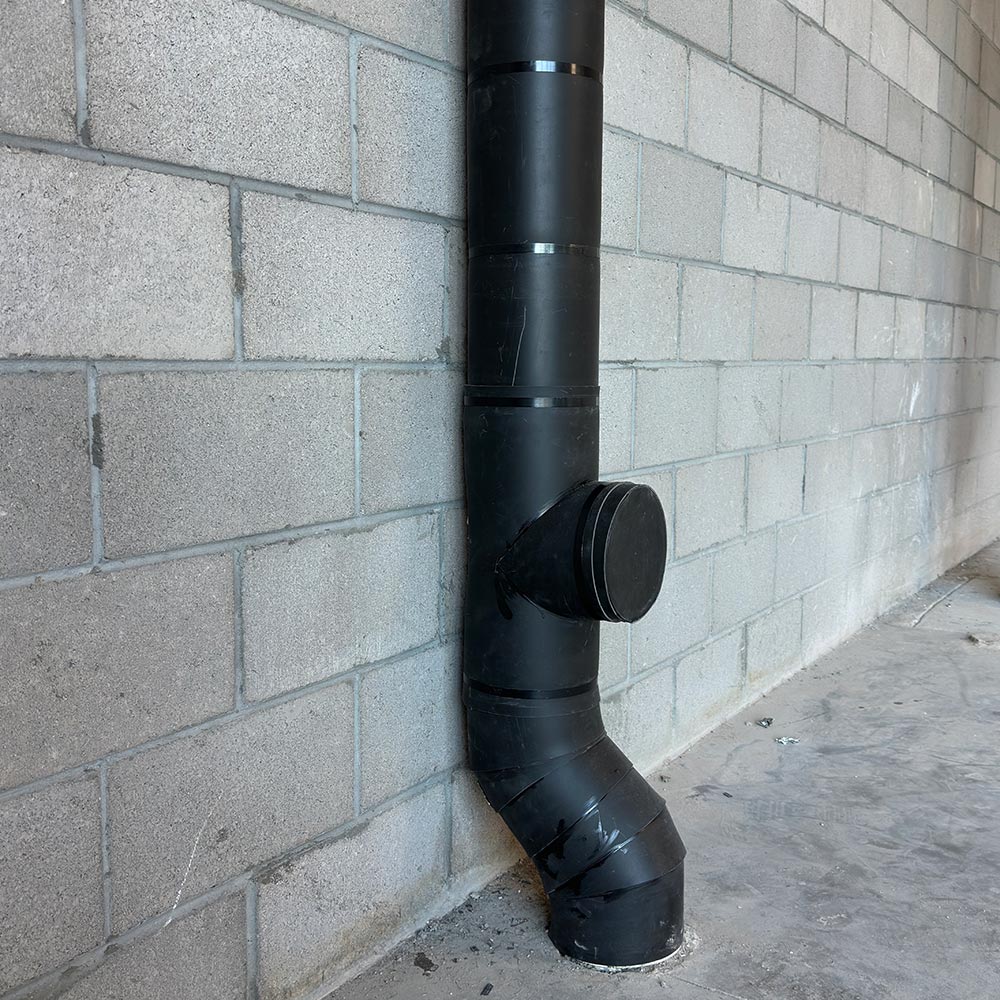

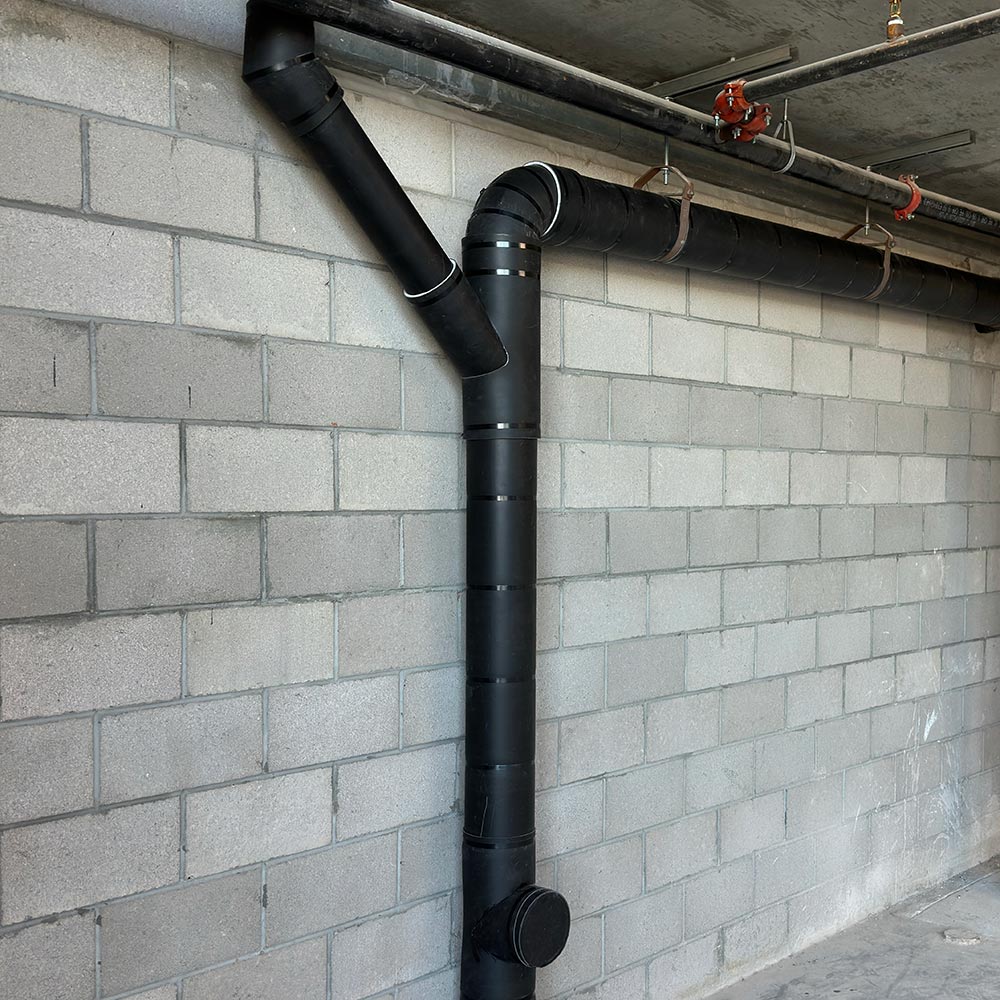

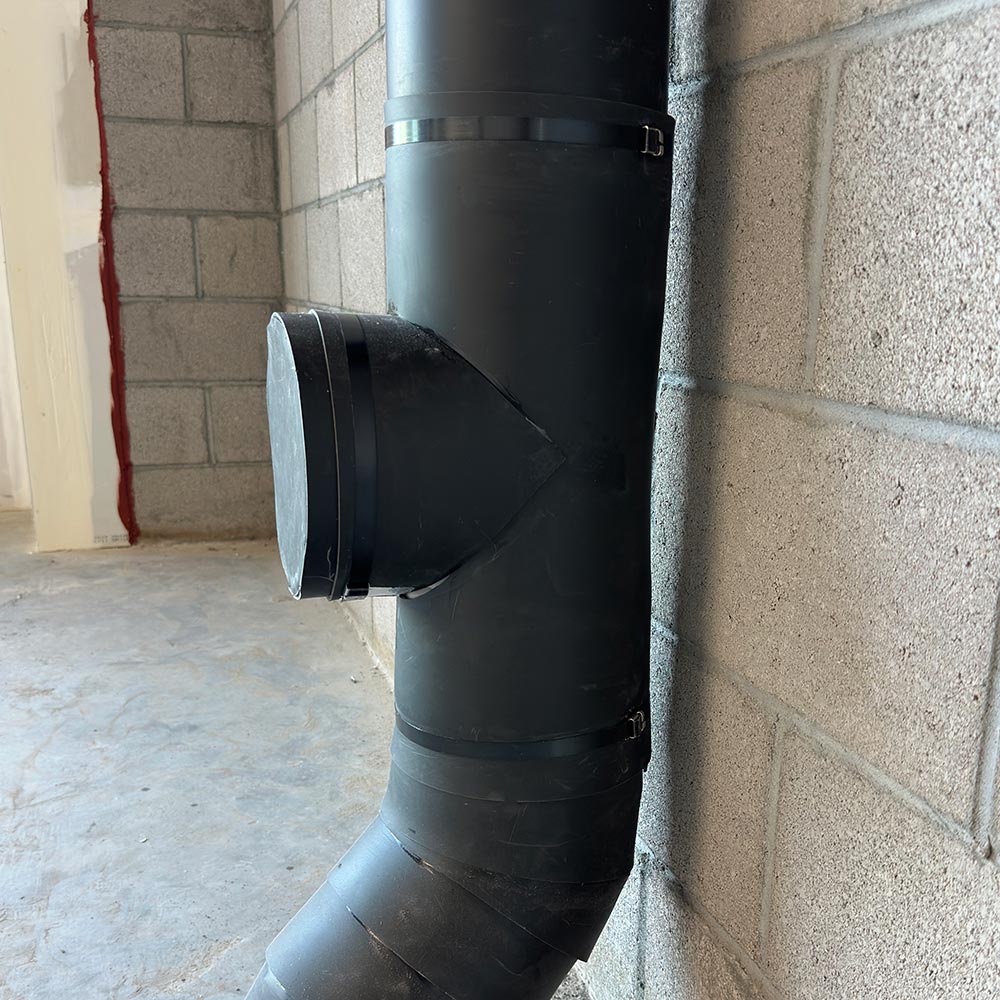

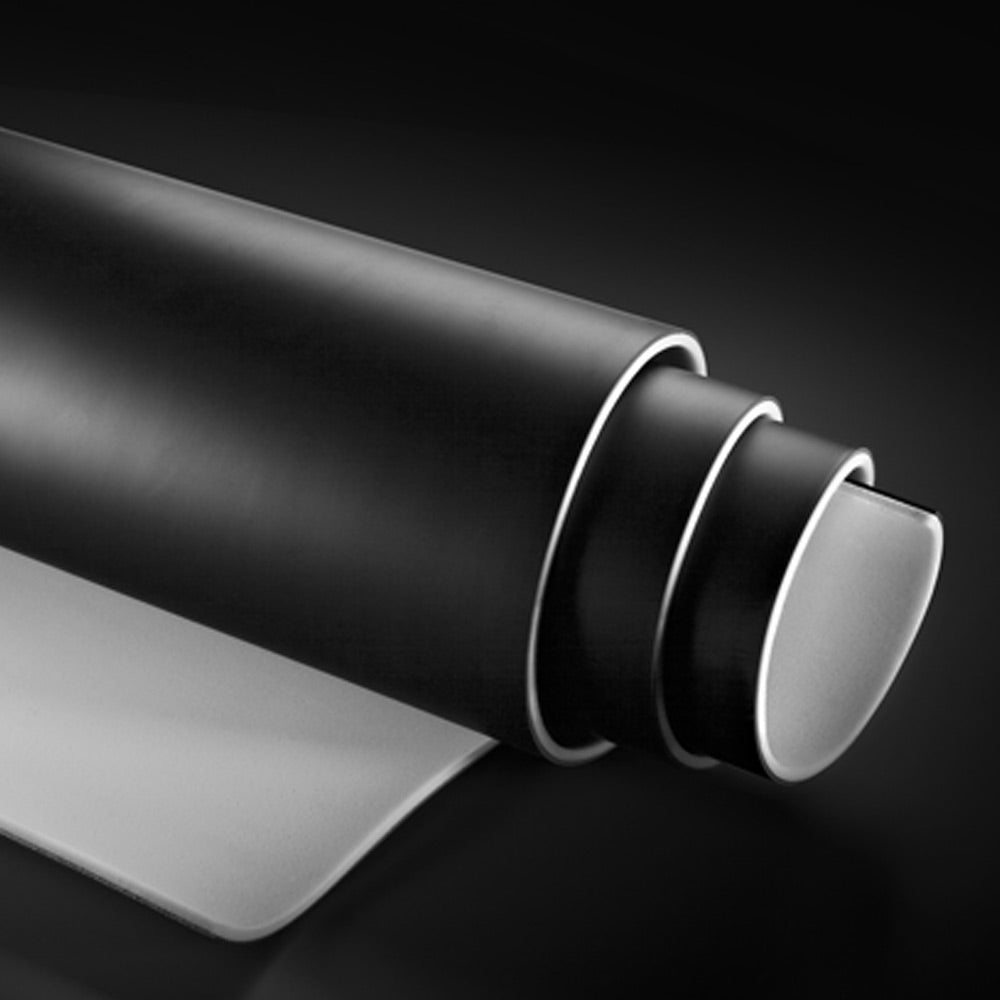

Pipe Lagging is a custom acoustical insulation composite. It consists of an inner layer of our high performance TECHLITE acoustic melamine foam laminated to a thick mass loaded vinyl jacket. As a composite assembly it has exceptional sound attenuation properties.  Typical applications include: pneumatic conveying systems; tubes, pipes, and ducts used in the movement of plastic pellets or metal parts; deburring and deflashing systems in manufacturing plants; frozen peas or other food products used in food processing plants; high pressure steam or gas piping; to insulate walls or enclosures; to protect personnel from noisy machinery and mining equipment such as axial fans and punch cars.  Pipe Lagging is suitable for indoor  or outdoor applications.   *Contact Techlite for details

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Exceptional sound attenuation
  • Impact noise absorption
  • Low frequency sound barrier

Uses and Applications

  • Heavy-duty
  • Large piping and ducts
  • Tanks and vessels

Jacket Specifications

  • Jacket Availability: Pipe Lagging is composed of a mass loaded PVC compound. This is an excellent sound blocking jacket for low frequency noise. The smooth black PVC exterior also provides good chemical resistance.
  • Jacket Material: Mass Loaded Vinyl
  • Jacket Color: Black
  • Service Temperature: MVSS302 Self Extinguishing UL 94-HF-1 Pass

Physical Properties

  • Insulation Material: Flexible Open-Cell Melamine
  • Service Temperature: -40°F to +350°F
  • Density: 0.56 ± 0.06 lb/ft3
  • Thermal Conductivity (K Factor) @75°: 0.25 btu-in/hr-ft2-°F
  • Flammability: N/A
  • Standard Thickness: 1″,1.5″, 2″, 2.5″, 3″
