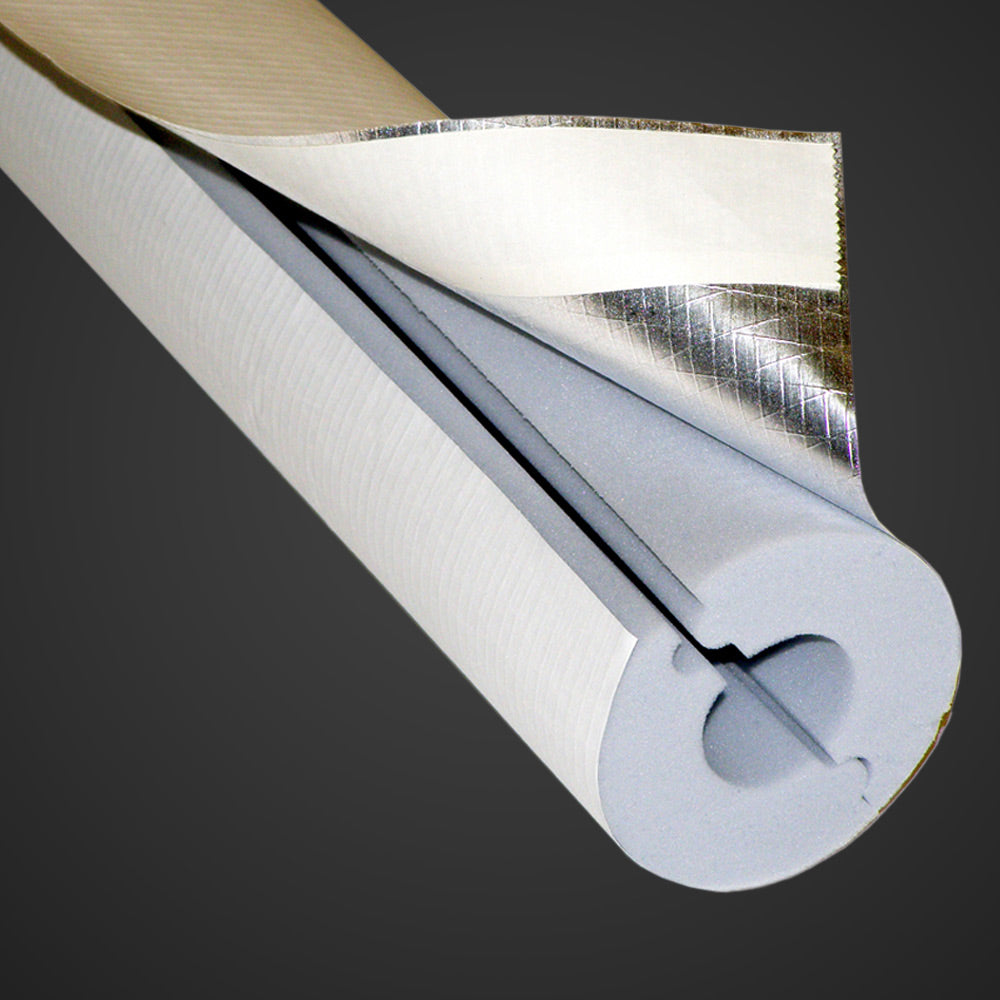

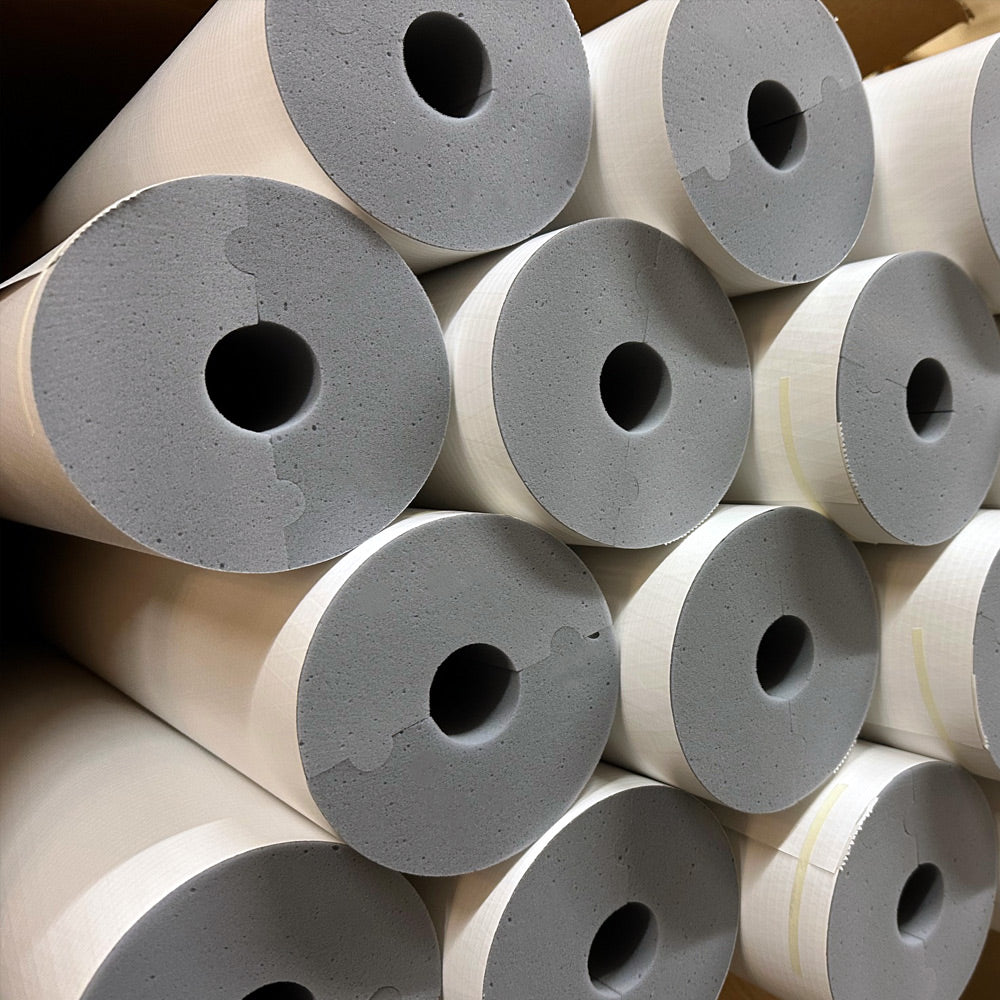

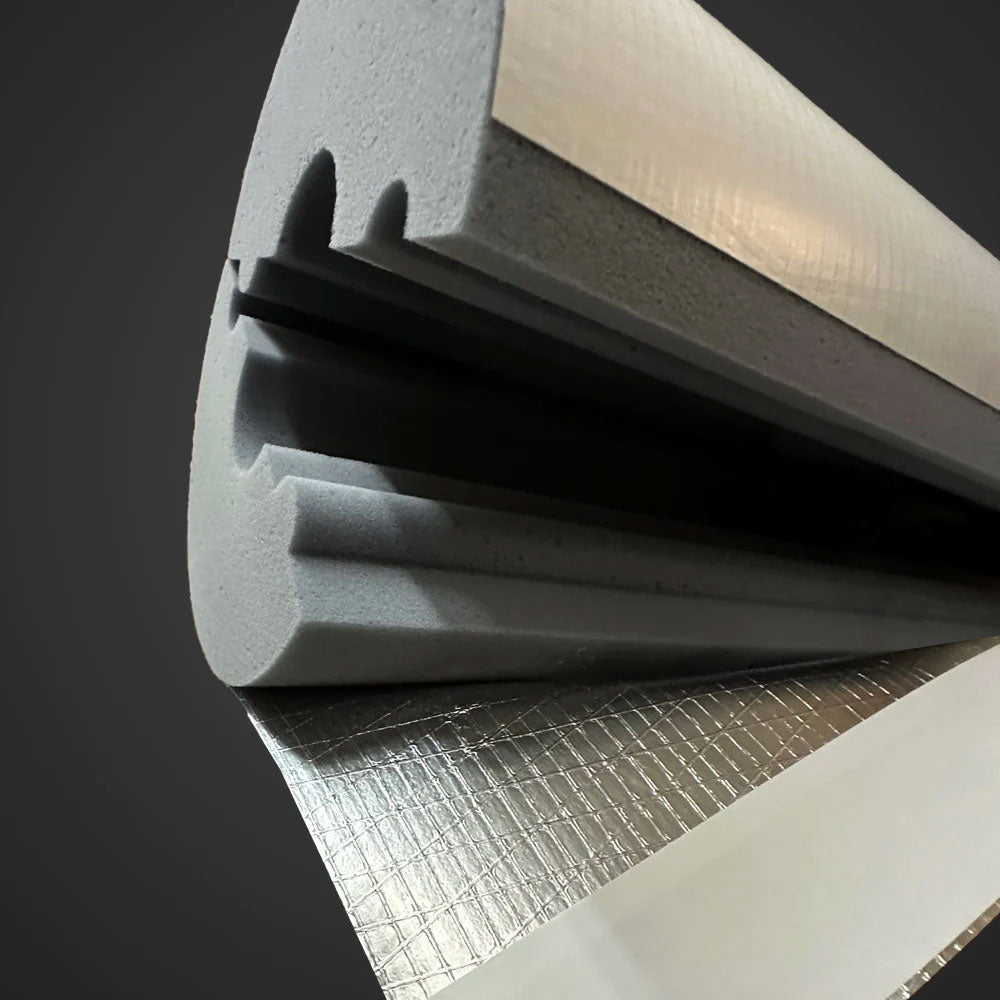

ASJ 79 Series Pipe Insulation

Introducing our premium ASJ79 melamine foam and ASJ pipe insulation, the ultimate solution for thermal protection in piping systems. Crafted with high-quality materials, our insulation offers superior heat resistance and energy efficiency, effectively reducing heat loss and condensation. Upgrade your facilities with our melamine foam and ASJ pipe insulation for reliable, long-lasting performance.

Get A Quote
View full details

TECHLITE ASJ 79 Series pipe insulation is an all service, high performance insulation system developed specifically for the insulation contractor. This system provides the contractor with a lightweight, non-fibrous insulation material that is easy to fabricate and can be installed very efficiently.

When properly installed, TECHLITE ASJ 79 Series is an economical insulation system that can be used in place of conventional insulation materials. This system is also the best candidate for a secondary metal or plastic lagging, as the ASJ will provide only a simple protection against abuse. The “All Service Jacket” System uses a paper/foil/scrim vapor barrier jacket that is permanently laminated to the TECHLITE Insulation and should not be exposed to wash-downs.

ASJ 79 Insulation for Pipes

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Works with field-applied jackets
  • Noise reduction

Uses and Applications

  • Indoor use only
  • Commercial facilities
  • Institutional and industrial facilities

Jacket Specifications

  • Jacket Material: ASJ paper/foil/scrim
  • Thickness: 0.010″
  • Jacket Color: White Only
  • Service Temperature: 25/50 per ASTM E-84
  • Flame spread/smoke development: 0.010″

Physical Properties

  • Insulation Material: Flexible Open-Cell Melamine
  • Service Temperature: -40°F to 350°F
  • Density: 0.44 ± 0.19 lb/ft3
  • Thermal Conductivity (K Factor) @75°: 0.27 btu-in/hr-ft2-°F
  • Flammability: 25/50 per ASTM E84
  • Standard Thickness: 1″,1.5″, 2″, 2.5″, 3″
