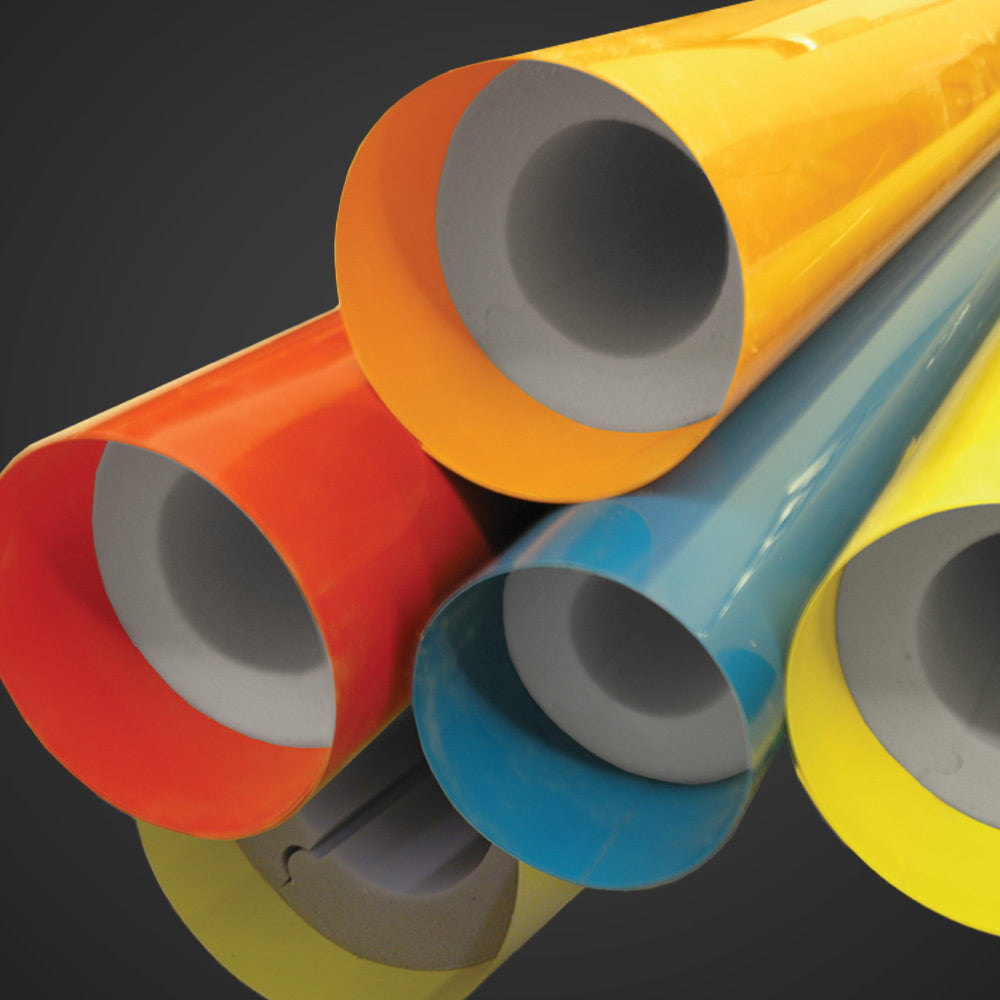

879 Series Pipe Insulation

Techlite  879melamine foam pipe insulation with  sanitary, glossy, semi-rigid jacketing, the ultimate solution for efficient and durable thermal protection. Made in the USA with premium melamine foam, it ensures superior insulation performance while the smooth jacketing guarantees a hygienic and
easy-to-clean surface. Experience peace of mind with our reliable insulation, ideal for a wide range of industrial and commercial sanitary applications.

Get A Quote
View full details

TECHLITE 879 Series is a sanitary insulation system developed for clean room and Bio-Pharma processing environments. Excellent antibacterial and wash down properties are standard features for the 879 Series. This high performance system uses a smooth, semi-rigid PVC exterior jacket that is permanently laminated to our TECHLITE foam insulation.

The mirror smooth finish not only works well, but also looks the part in all Bio-Pharma, clean room, and food processing environments. The TECHLITE 879 Series provides years of clean and sanitary service with its hard, glossy surface that never needs painting, and is the best high performance insulation system on the market.

Energy Efficient 879 Series Pipe Insulation

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Wash-down safe
  • Clean glossy surface
  • Easy to install
  • Available in multi-colors

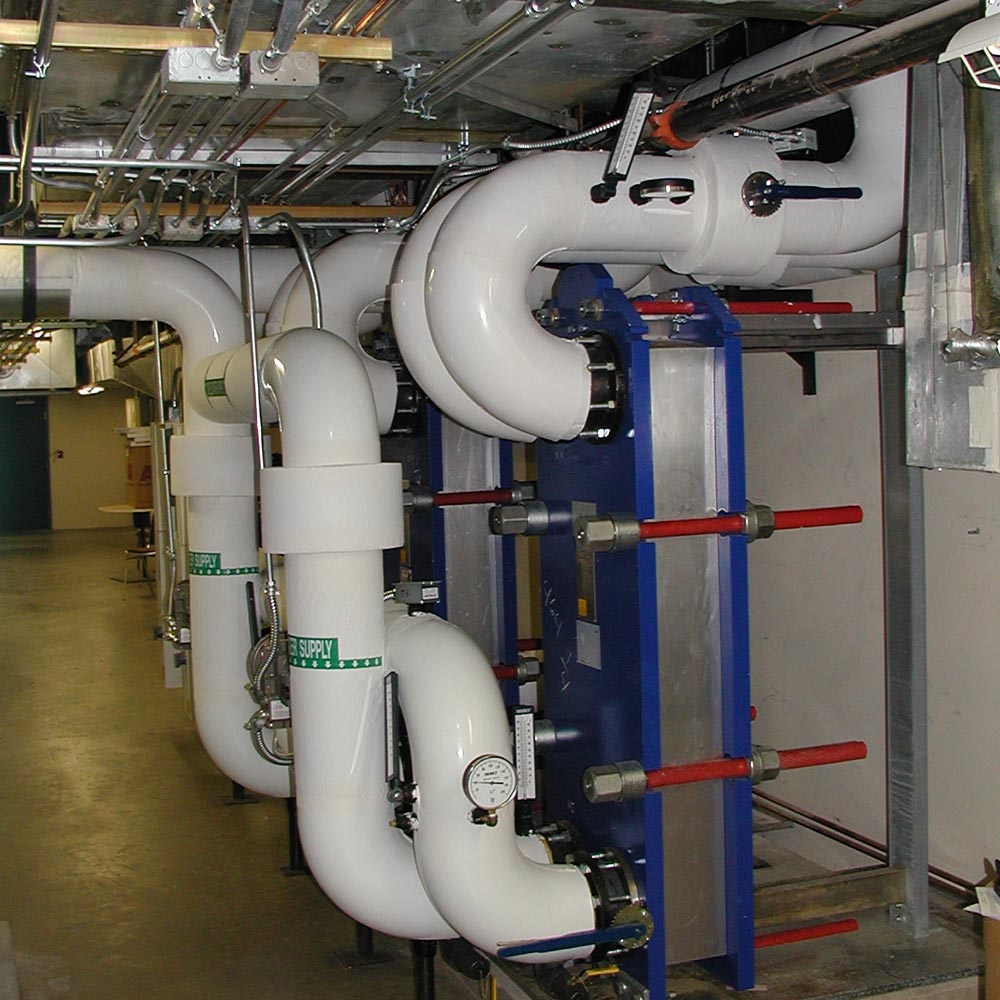

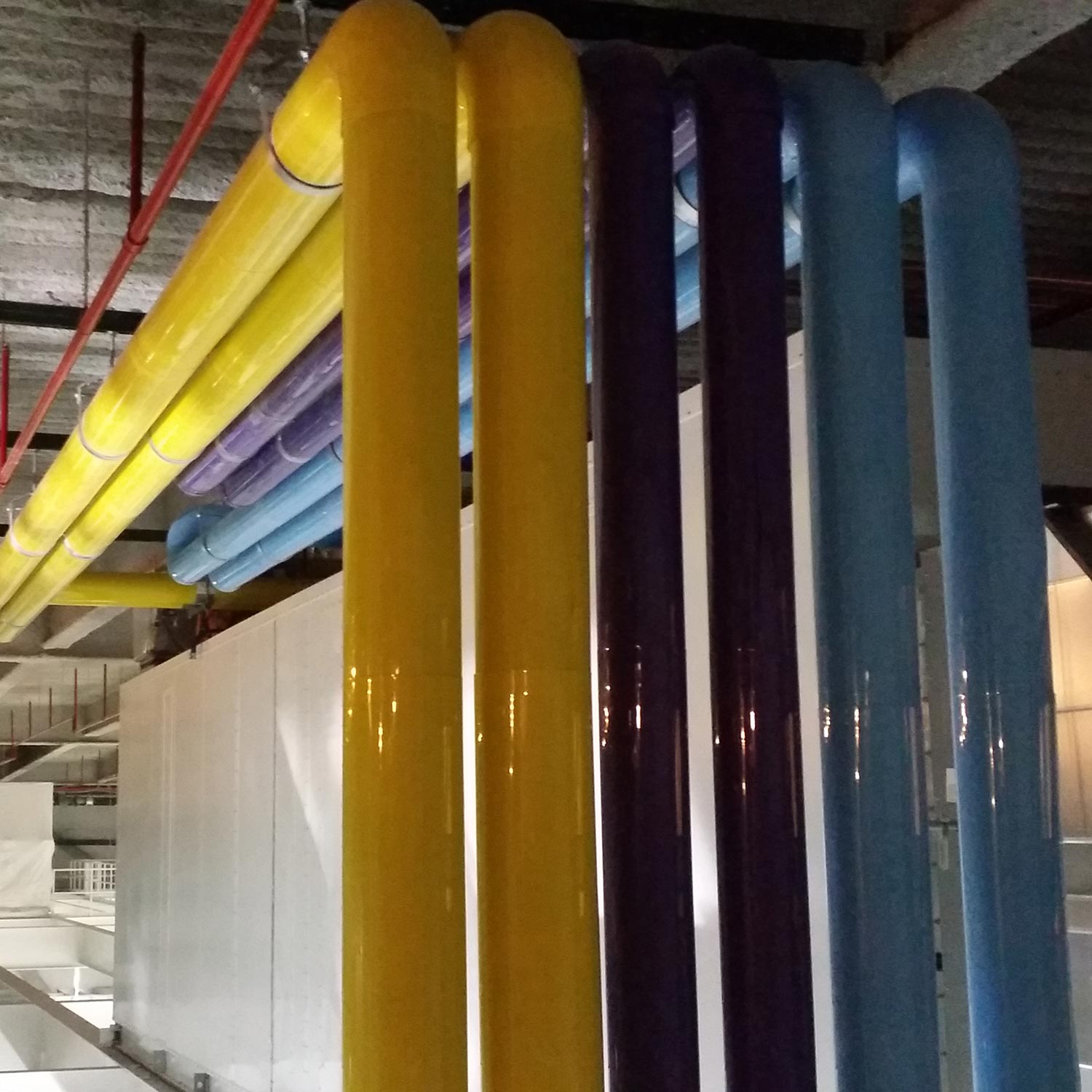

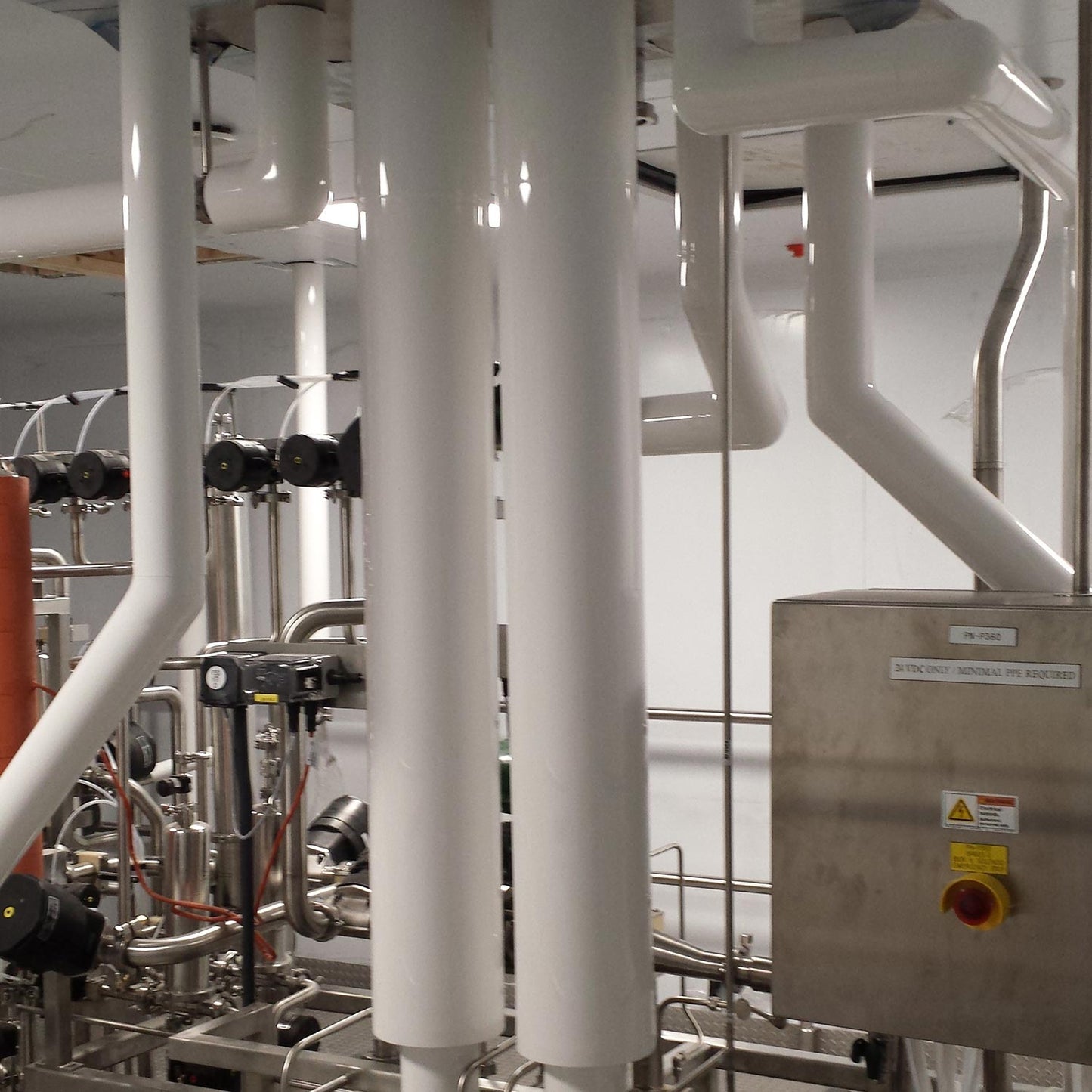

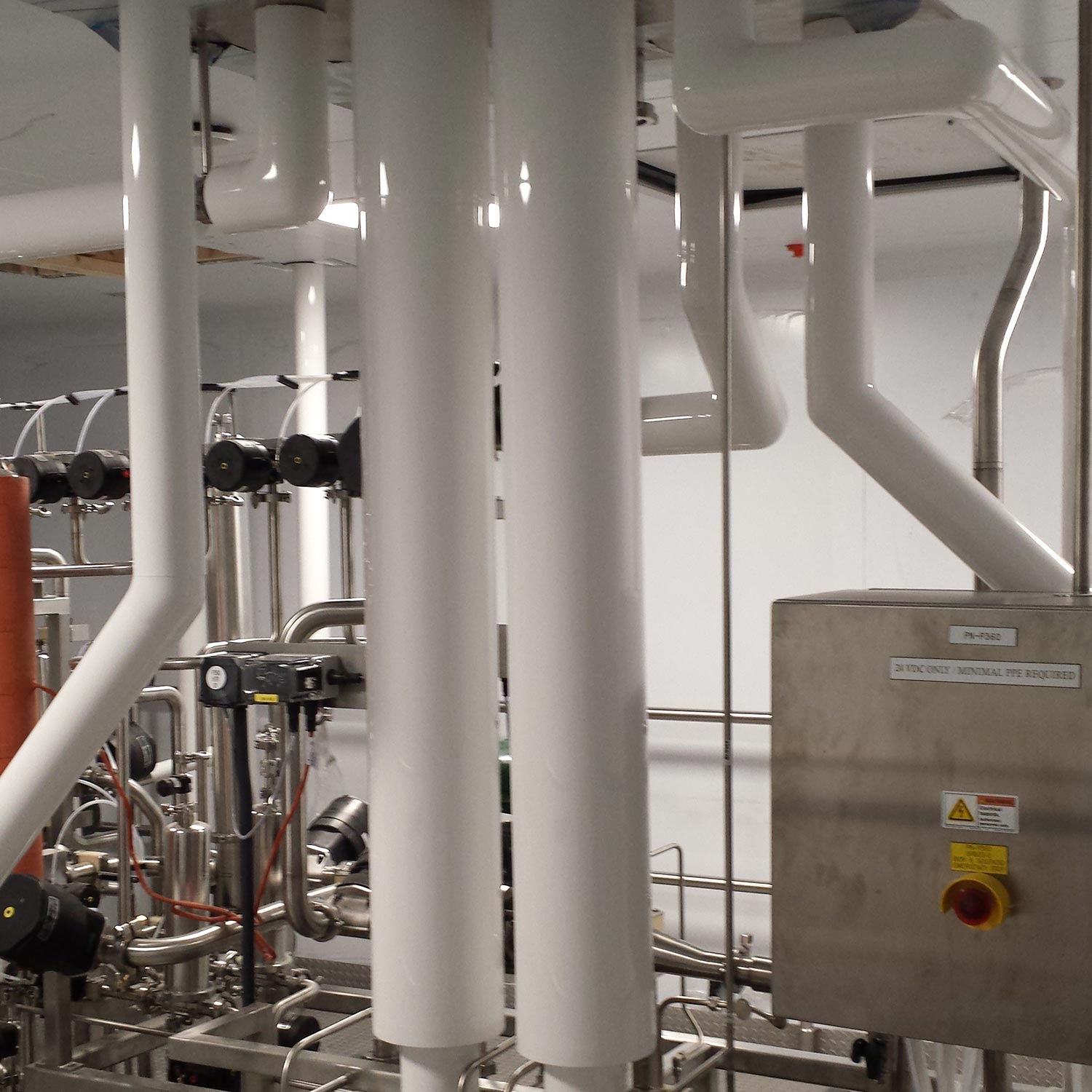

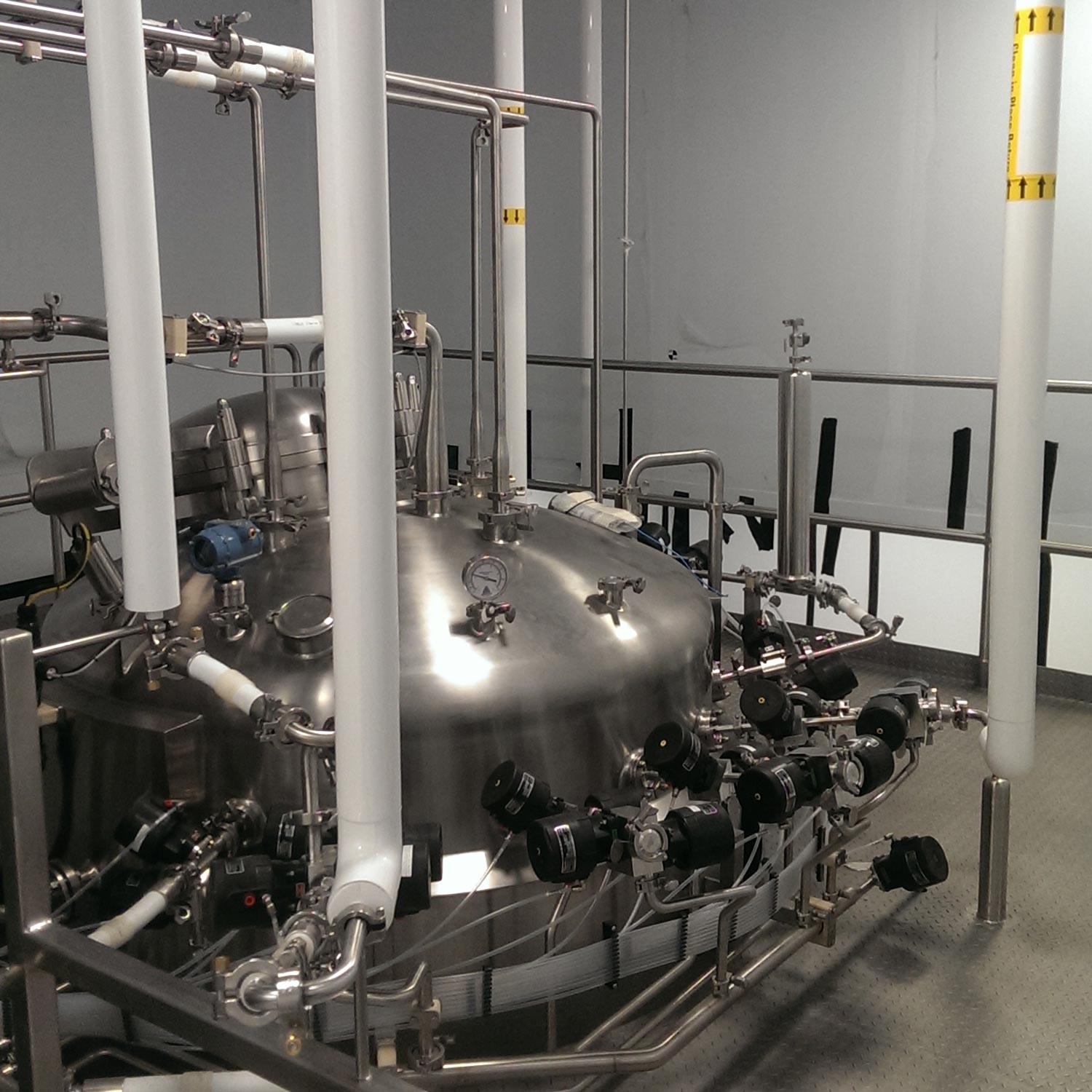

Uses and Applications

  • Sanitary/food processing
  • Pharmaceutical
  • Bio-Pharma
  • Clean room
  • Indoor use only


Jacket Specifications

  • Jacket Material: PVC
  • Thickness: 0.020″
  • Jacket Color: Standard is White (color optional)
  • Service Temperature: 25/50 per ASTM E-84
  • Flame spread/smoke development: 0.020″


Physical Properties

  • Insulation Material: Flexible Open-Cell Melamine
  • Service Temperature: -40°F to 350°F
  • Density: 0.44 ± 0.19 lb/ft3
  • Thermal Conductivity (K Factor) @75°: 0.27 btu-in/hr-ft2-°F
  • Flammability: 25/50 per ASTM E84
  • Standard Thickness: 1″,1.5″, 2″, 2.5″, 3″
