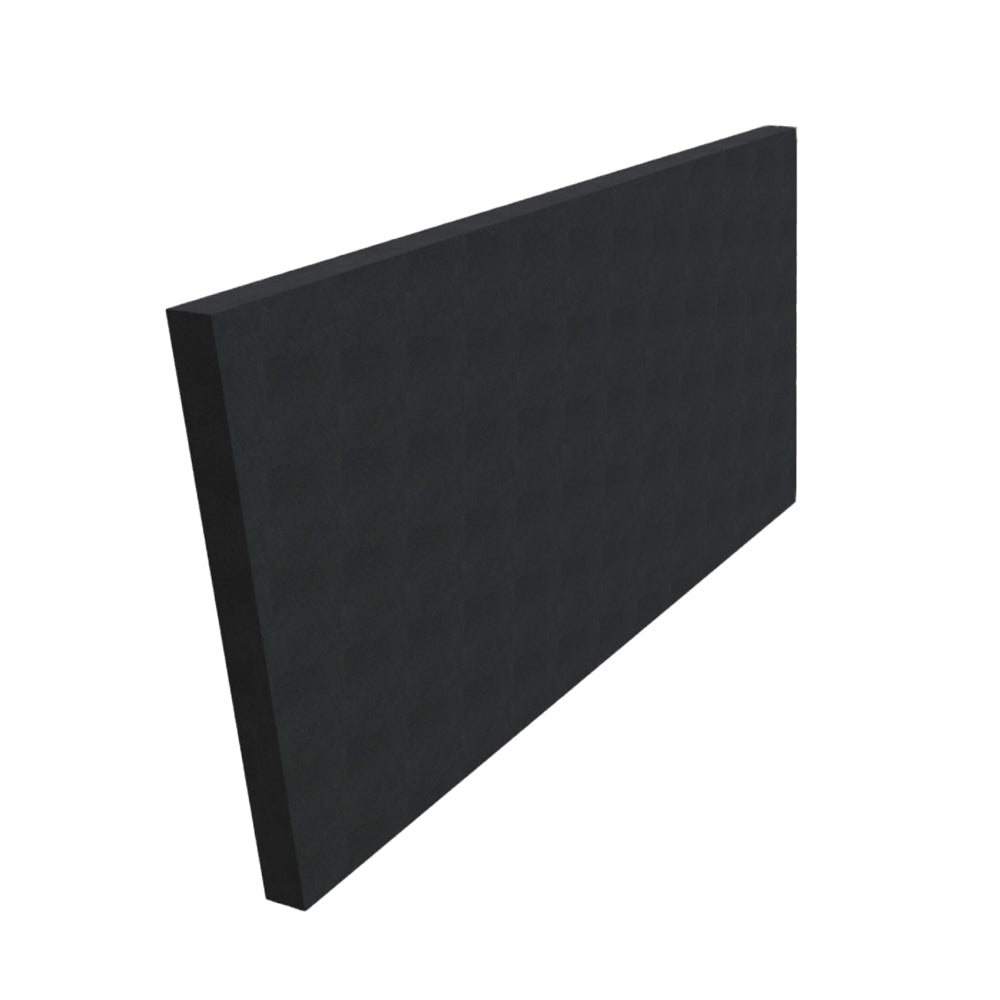

Techlite® Linear Ceiling Baffles in Obsidian are engineered to deliver precise acoustic control while reinforcing strong architectural lines within interior environments. The linear-profile geometry establishes a consistent visual cadence across open ceilings, guiding the eye through the space while simultaneously managing reverberation. For architects, the system defines structure without adding bulk; for interior designers, it introduces alignment and rhythm; for sound engineers, it provides reliable attenuation in large, reflective volumes.
Manufactured utilizing Basotect® Ecobalanced Melamine Foam, these baffles offer a high surface-to-mass efficiency that supports effective sound absorption across key frequency ranges. Their vertically suspended orientation maximizes exposed surface area, allowing sound waves to interact on multiple faces for improved acoustic efficiency. The material meets Class A fire-rated requirements per ASTM E 84, supporting life-safety compliance in commercial and institutional interiors.
Well-suited for open-plan offices, transportation hubs, educational facilities, and performance-driven environments, linear baffles reduce echo buildup and enhance speech intelligibility without requiring full ceiling coverage. Their lightweight composition simplifies installation while maintaining consistent long-term performance. Additionally, the material supports sustainable design goals and may assist in achieving LEED credits through low-emitting material characteristics and responsible material sourcing.
Obsidian™ Coloration & Visual CharacterObsidian™ is a deep, dark charcoal acoustic foam with subtle blue undertones. Depending on lighting conditions, it can range from a rich charcoal gray to a dark navy hue—and when installed in high ceilings or low-light environments, it presents as visually black. The result is an acoustic material that integrates seamlessly into contemporary architecture while delivering the performance Techlite® is known for. For applications requiring an ultimate, rich black appearance, Obsidian™ panels may be coated utilizing Techlite®’s proprietary paint system. [Pictured Right: Obsidian™ foam color under various interior lighting] |
 |
| Finish | Thickness [in] | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| Light Grey | 1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A | |
| Obsidian (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.) |
1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A |
*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.
