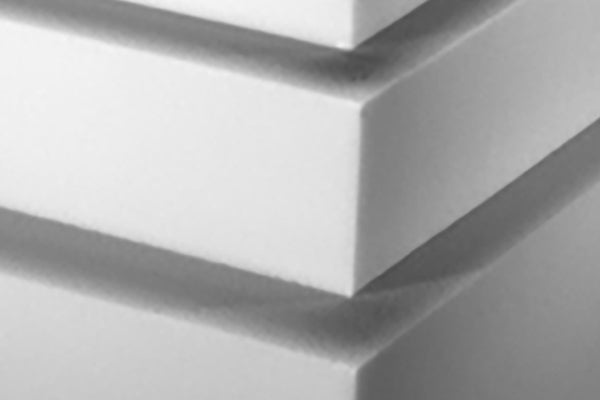

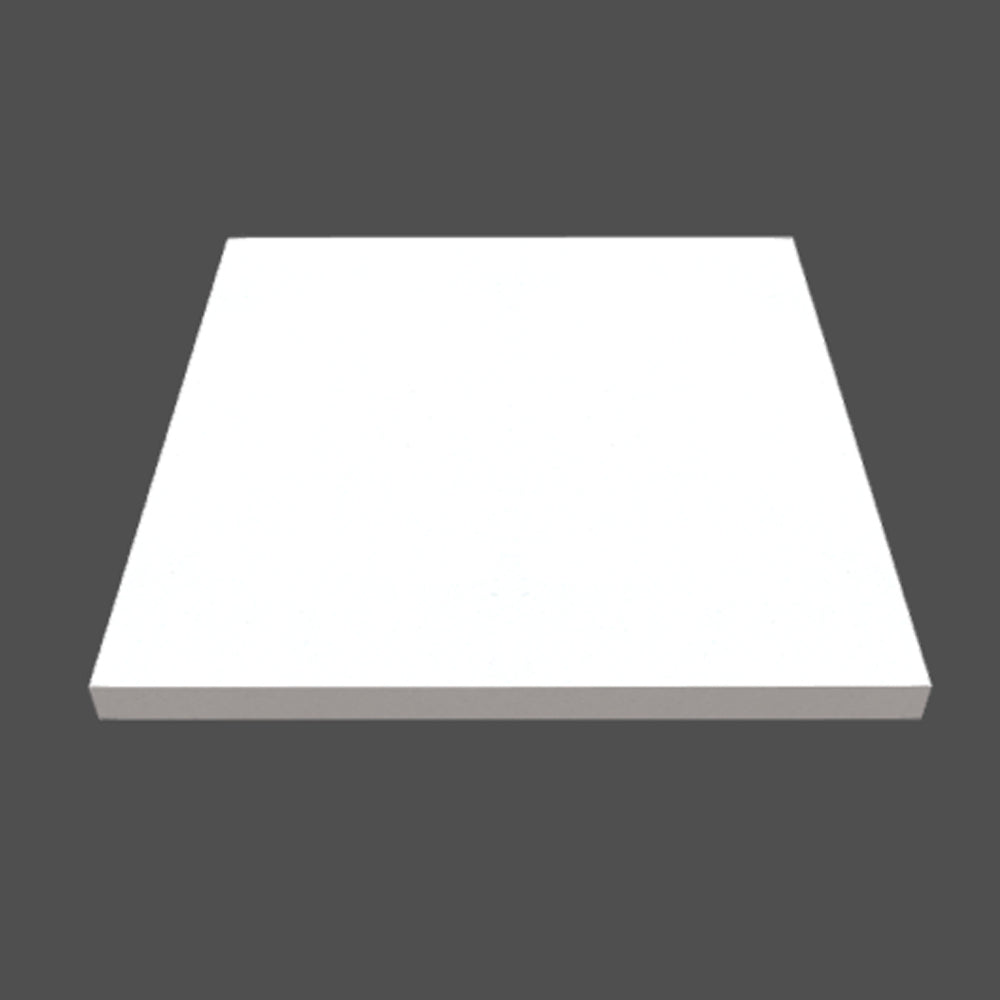

Acoustic Panels

This high performance foam has a wide temperature range, low smoke and flame properties and is available in several sizes and shapes to fit any design or décor.

Part Number: TA-001-AP
Architectural: Ceilings and Walls
Size: 24" x 24"; 24" x 48"; 24" x 72"; 24" x 96"; 48" x 48"; 48" x 96";
Custom Capabilities: Coating, Size, Thickness
Availability: Made to Order/Special Order
Lead Time: Standard: 2-3 Weeks; Custom: 4-8 Weeks
Expand all
Get A Quote

Content:Basotect® EcoBalanced Melamine Foam
Color:Natural White or Light Grey
Thickness:0.50", 1.0", 1.5", 2.0", 2.5", 3.0", Custom
Coating Options:Pitch Black, Hushed Grey, White Noise, Custom

Indoor & Outdoor:Indoor
Applications:Ceiling and Walls
Installation:Adhesive Applied
Maintenance: Acoustic Foam Cleaning Instructions

Flammability (Natural White):ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
Flammability (Light Grey):ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
Minimum Operating Temperature:-40°F
Maximum Operating Temperature:350°F
Density:Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3

View full details

Techlite® Acoustic Panels provide a versatile solution for controlling reverberation, improving speech intelligibility, and enhancing occupant comfort across a wide range of interior environments. Manufactured utilizing Basotect® EcoBalanced melamine foam, these lightweight panels deliver exceptional sound absorption while maintaining a clean, modern aesthetic suitable for commercial, educational, hospitality, healthcare, and performance spaces. Available in a variety of sizes, thicknesses, profiles, colors, and custom configurations, Techlite® Acoustic Panels can be integrated into both new construction and renovation projects to address specific acoustic objectives without compromising design intent.

Unlike conventional acoustic treatments that are often limited to basic functionality, Techlite® Acoustic Panels are engineered to become an integral part of the architectural environment. Their open-cell melamine foam construction provides high-performance absorption across a broad range of frequencies, helping reduce excessive reverberation, improve communication clarity, and create more comfortable interior spaces. Whether used as a subtle design element or a prominent architectural feature, Techlite® Acoustic Panels offer architects, interior designers, and acoustical consultants the flexibility to balance aesthetics, performance, and code compliance within a single solution.

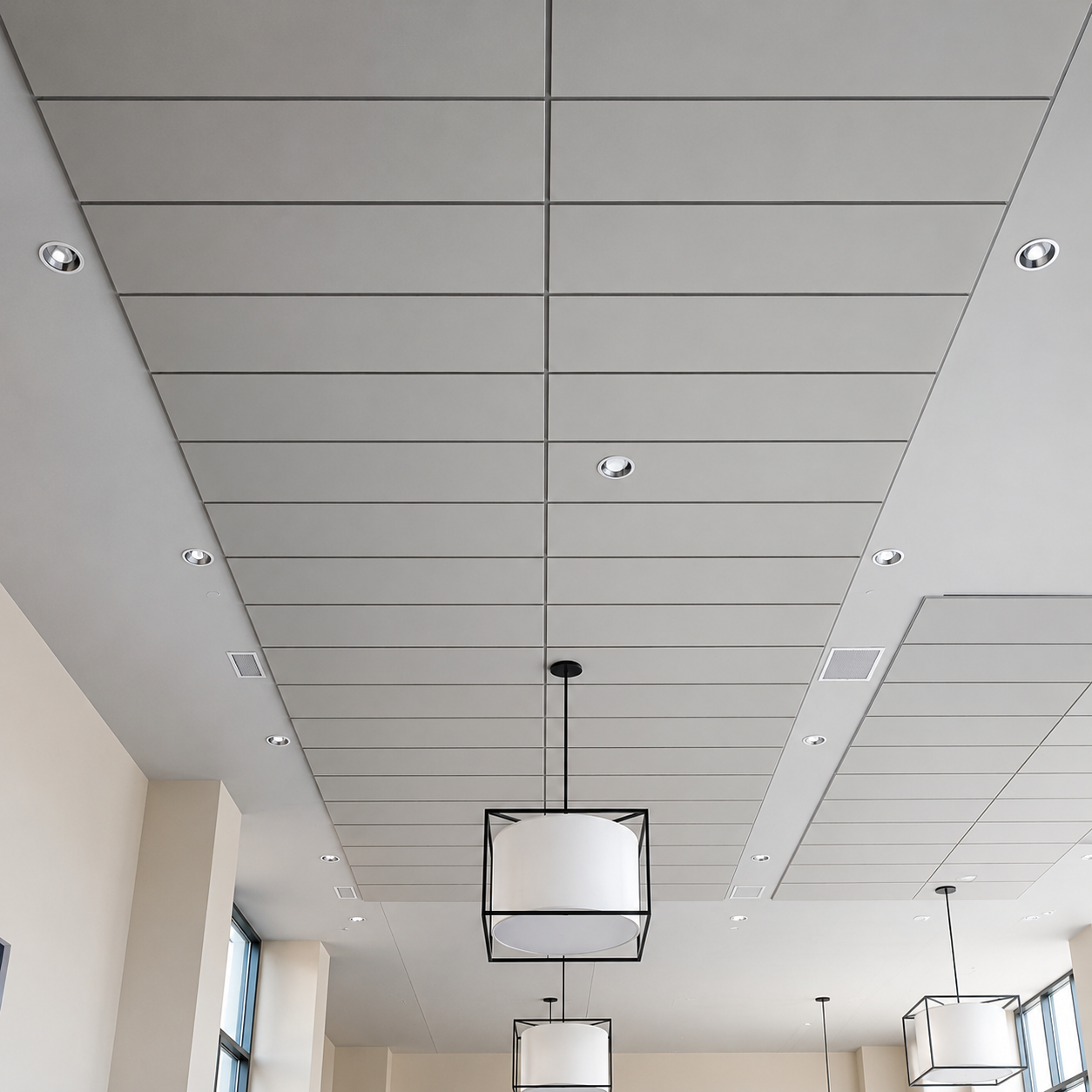

MelamineFoamAcousticPanels

Sound Absorption Coefficient [Sabins / ft²]

Finish Thickness [in] 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
White 1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
Light Grey 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Obsidian
(Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)
1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Absorption results tested in accordance to ASTM C 423-09a

Sound Absorption

Sound Absorption Testing to ASTM Standard C423-09a indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TechLite® foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TechLite® is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Absorbs and reduces noise
  • Very low-density/lightweight
  • Excellent thermal properties
  • Class A fire-rated (ASTM E 84)
  • Easy to install


Uses and Applications

  • Industrial applications
  • OEM uses
  • Aerospace and defense
  • Automotive
  • OSHA compliance
  • Fitness centers


Specifications

  • Size: 24" x 48", 24" x 72", 24" x 96", 48" x 48", 48" x 96", 24" x 24", Custom
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Pitch Black, Hushed Grey, White Noise, Custom
  • Thickness: 0.5", 1", 1.5", 2", 2.5", 3", Custom
  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
