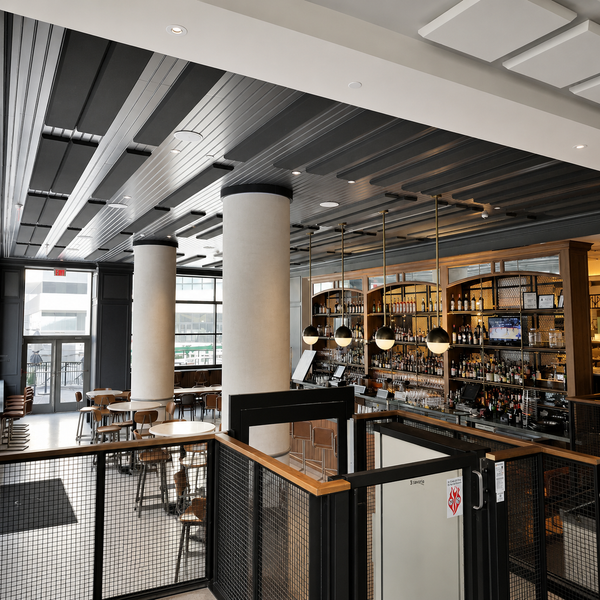

  • Basotect® Melamine Acoustic Tiles

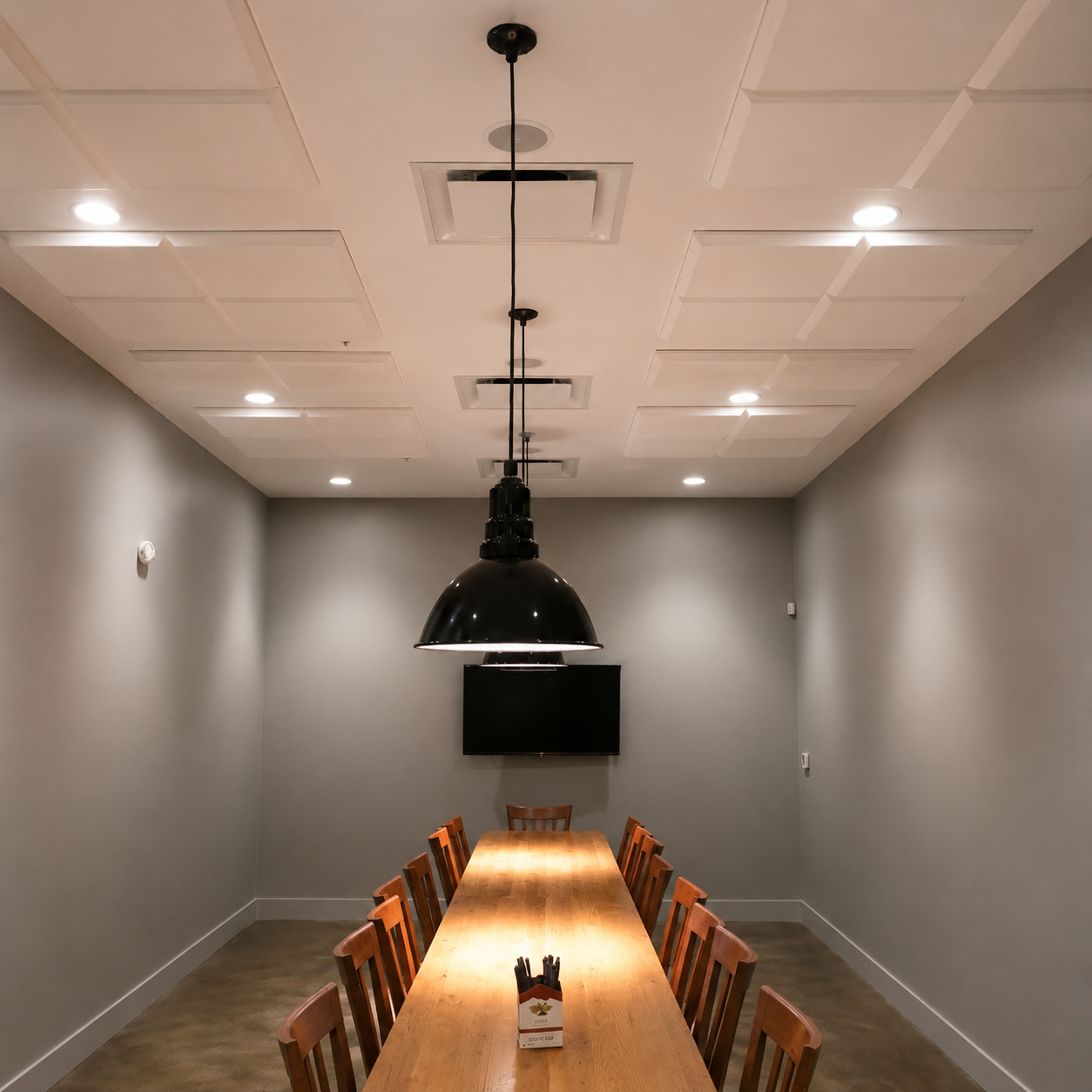

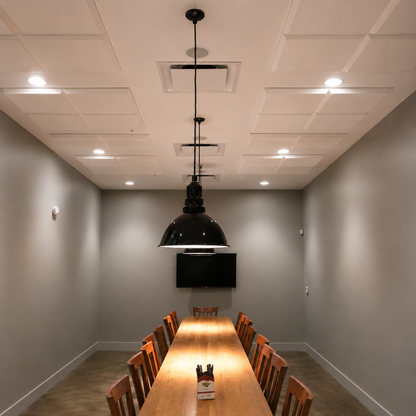

  • Applied Acoustic Ceiling Tiles

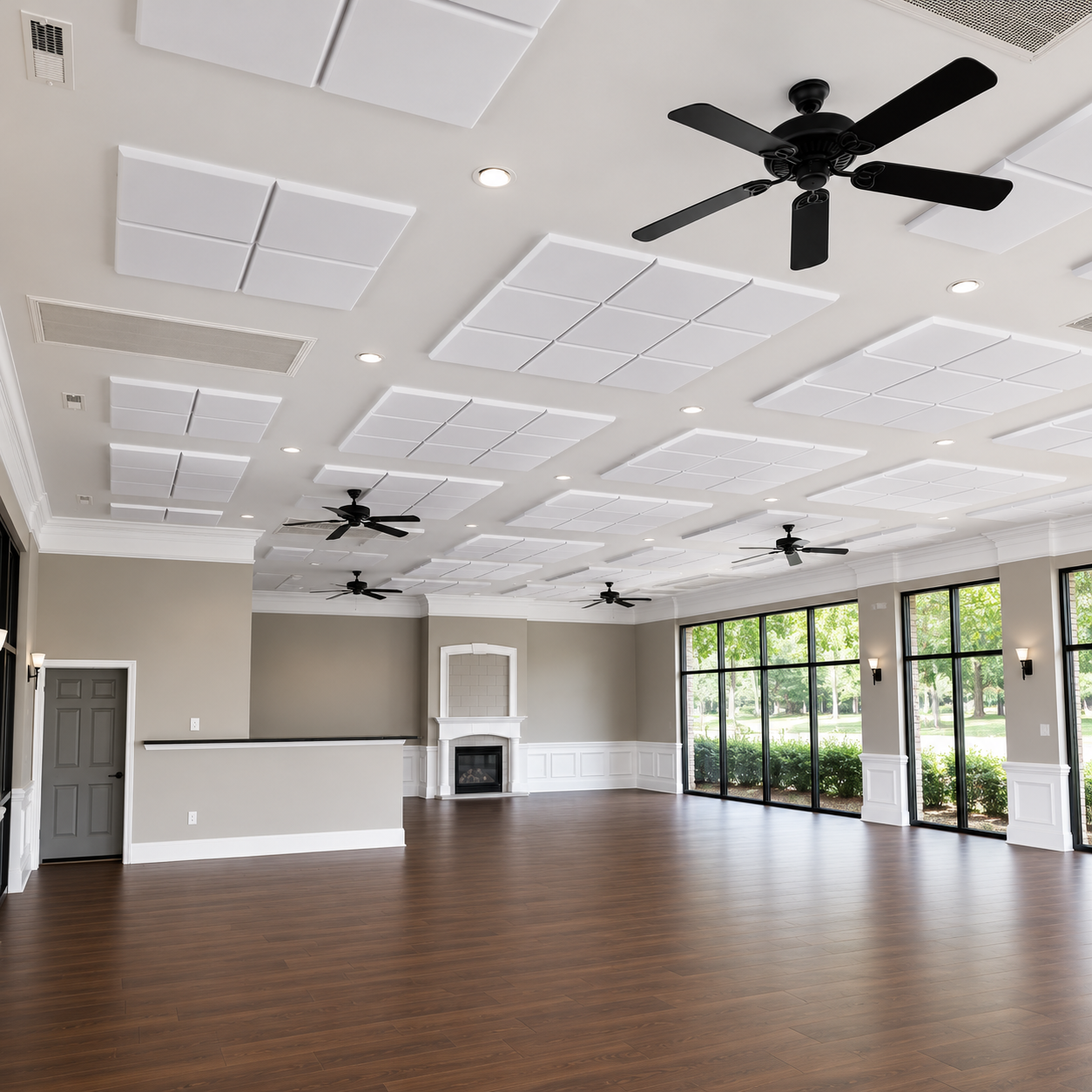

  • White Coated Applied Acoustic Ceiling Tiles

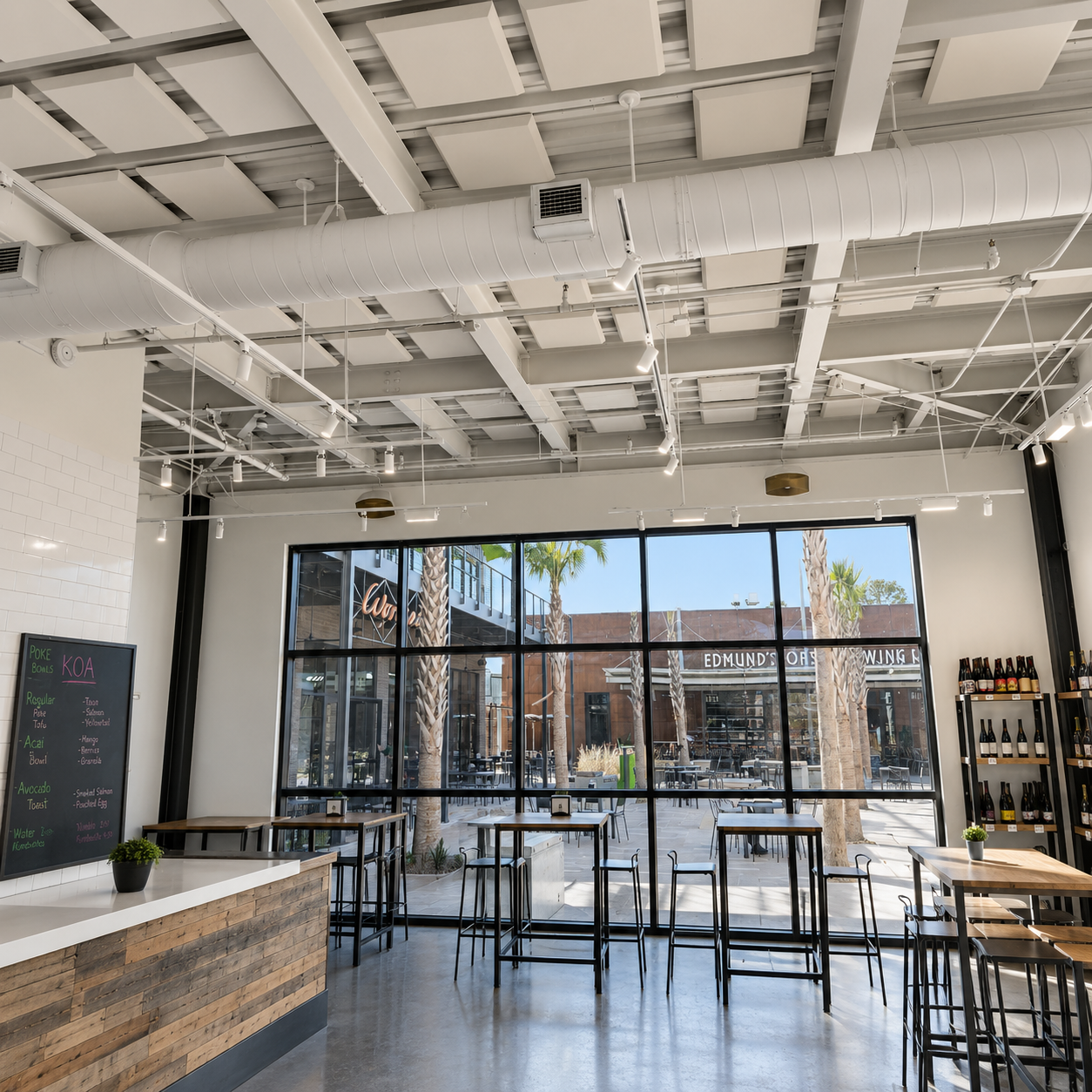

  • Melamine Foam Acoustic Tiles

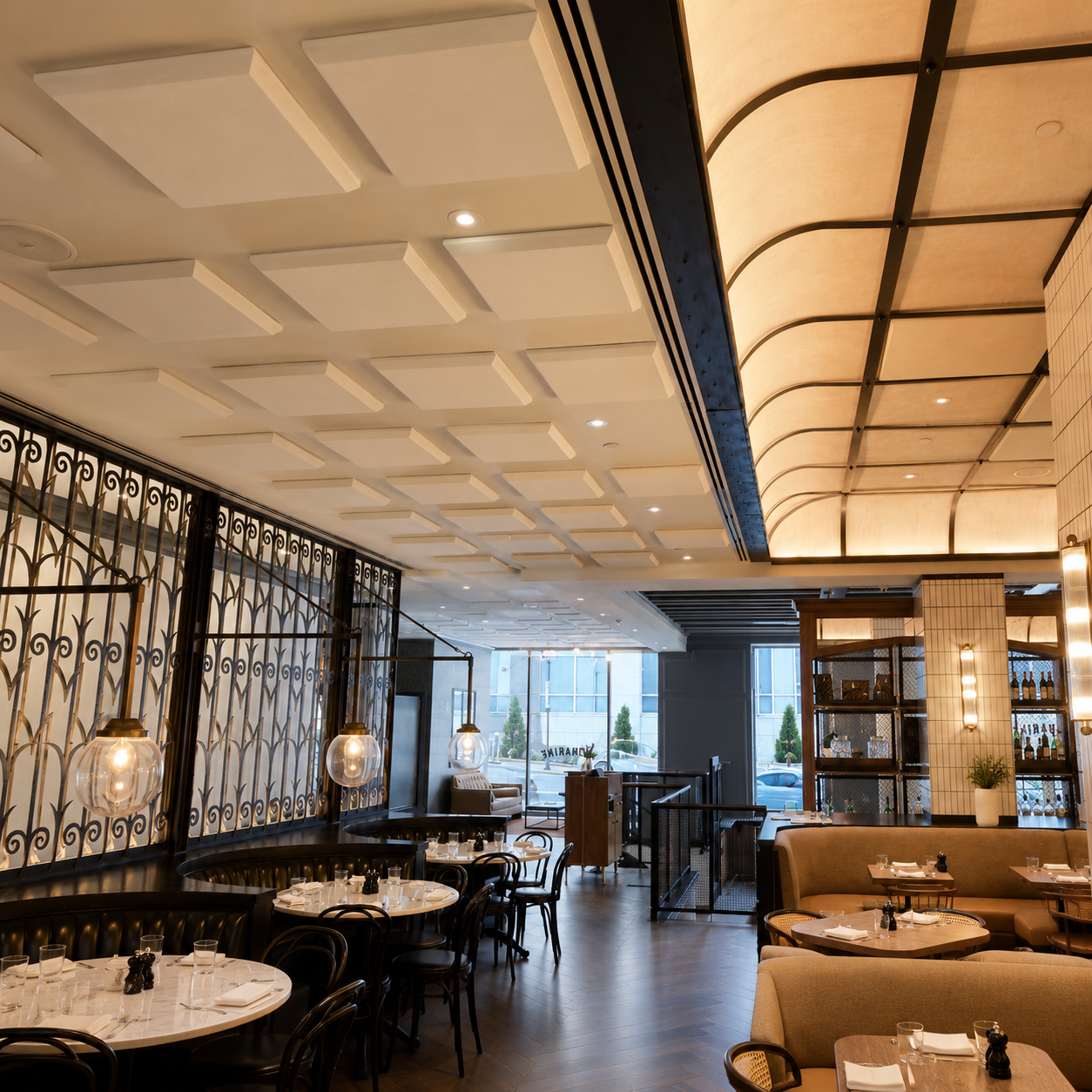

  • Restaurant Sound Dampening

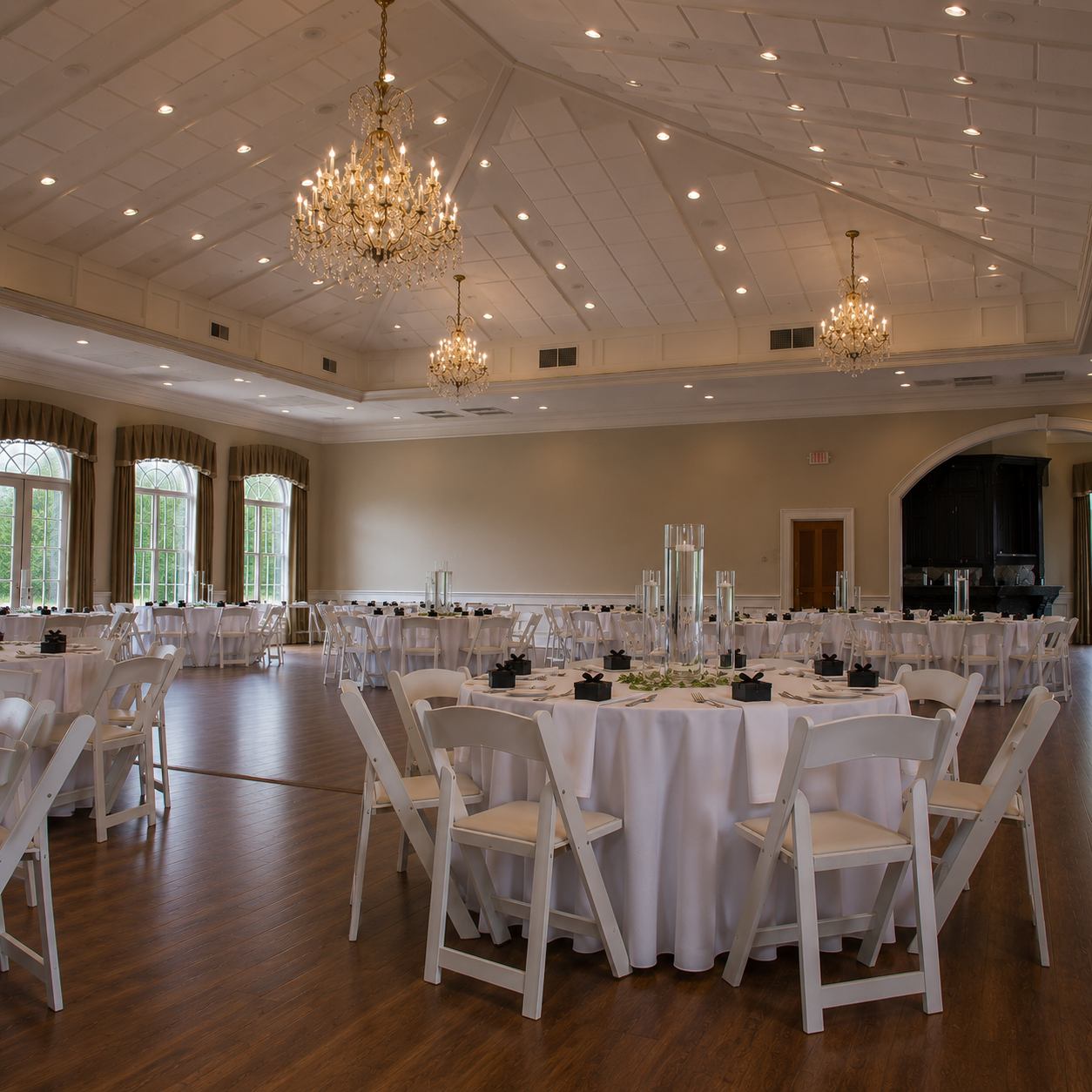

  • Wedding Venue Acoustic Ceiling Tiles
1 8

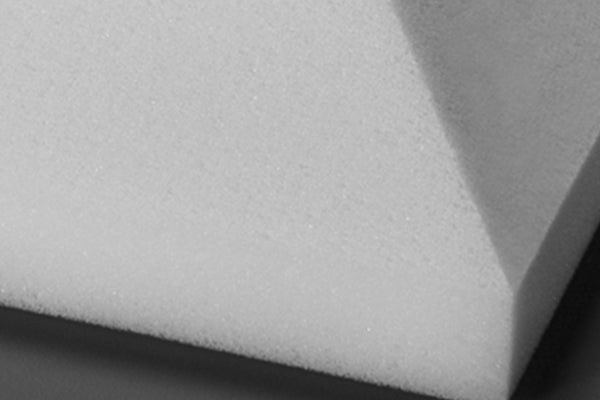

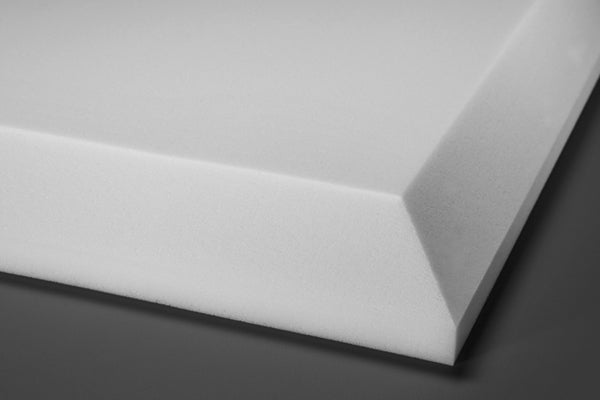

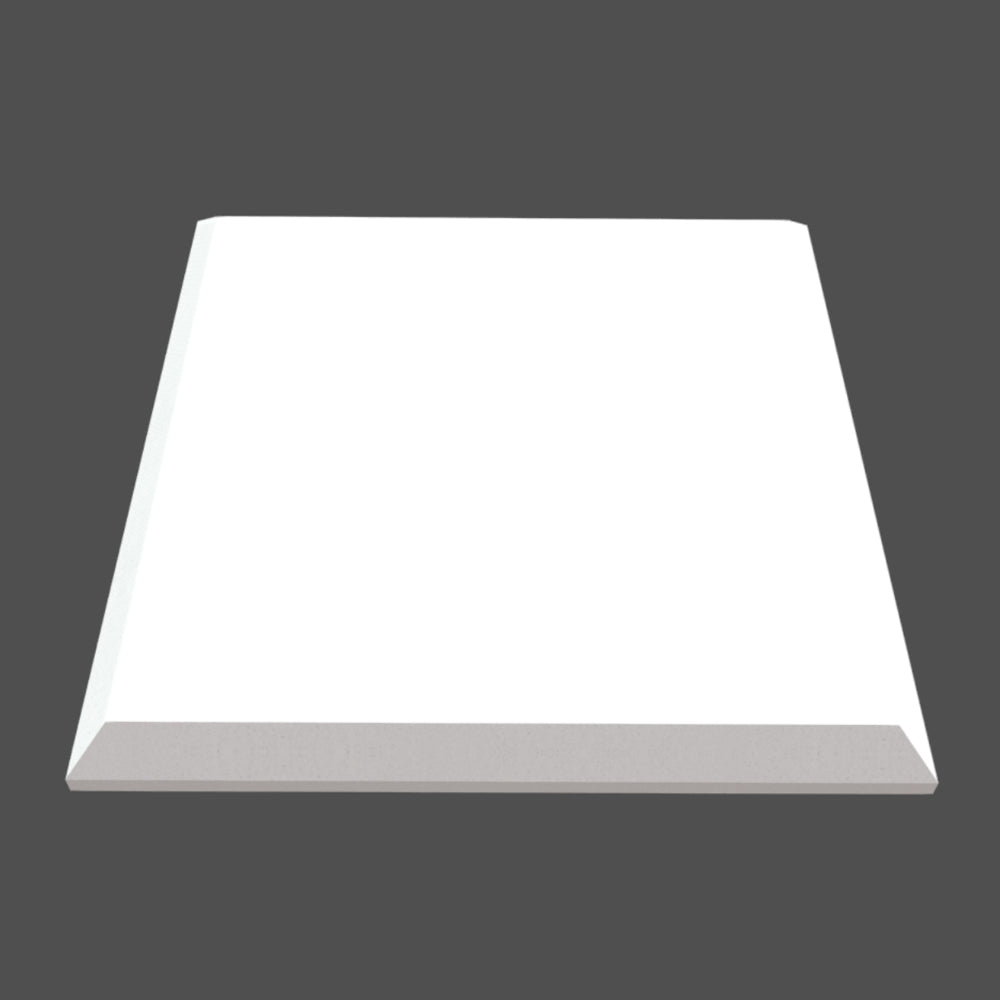

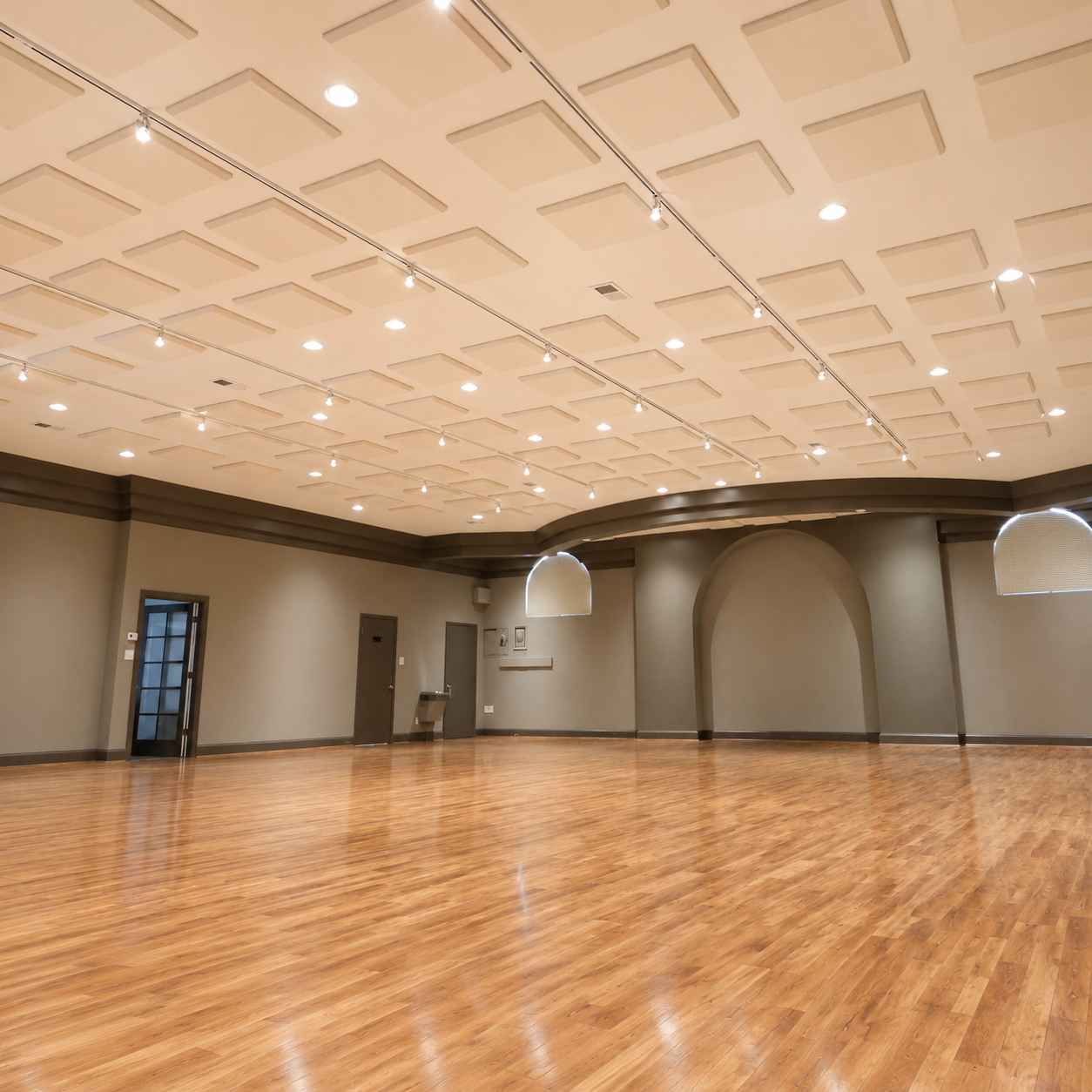

Applied Acoustic Ceiling Tiles

If you’re looking for aesthetic flair, sound absorption and functionality at an affordable price, TECHLITE®Applied Ceiling Tiles are designed to deliver.

Part Number: TA-015-AP
Architectural: Ceiling/Suspended Ceiling; Wall Tiles
Size: 23" x 23" (Installs over 24" x 24"); 23" x 47" (Installs over 24" x 48")
Custom Capabilities: Coating, Size, Thickness
Availability: Made to Order/Special Order
Lead Time: Standard: 2-3 Weeks; Custom: 4-8 Weeks
Expand all
Get A Quote

Content:Basotect® EcoBalanced Melamine Foam
Color:Natural White or Light Grey
Thickness: 1.75"
Coating Options:Pitch Black, Hushed Grey, White Noise, Custom

Indoor & Outdoor:Indoor
Applications:Ceiling/Suspended Ceiling, Fits 15/16″ T-grid system
Installation:Adhesive Applied to Existing Ceiling Tiles, Fits 15/16″ T-grid system
Maintenance: Acoustic Foam Cleaning Instructions

Flammability (Natural White):ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
Flammability (Light Grey):ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
Minimum Operating Temperature:-40°F
Maximum Operating Temperature:350°F
Density:Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • ASTM E-84 Test Summary Report - Natural White Melamine
  • ASTM E-84 Test Summary Report - ATC Coating
  • Buy America Certification
  • Basotect G Technical Information Sheets
  • Basotect B Technical Information Sheets
  • Acoustic Foam Cleaning Instructions

    • Explore the Obsidian Option.

    Applied Acoustic Ceiling Tiles - Obsidian™

    Applied Acoustic Ceiling Tiles In Obsidian™
    Obsidian™ ceiling tiles designed for direct application, delivering clean aesthetics and controlled acoustics.
    View full details

    TECHLITE® Applied Ceiling Tiles Are The Natural Choice When You're Looking For A Way To Combine Contemporary Styling With Exceptional Acoustic Control At A Moderate Price.

    TECHLITE® Applied Ceiling Tiles are built from lightweight TECHLITE® foam, making for easy installation and excellent sound absorption across all frequencies. If you’re looking for aesthetic flair, sound absorption and functionality at an affordable price, TECHLITE® Applied Ceiling Tiles are designed to deliver. Their combined attributes make them a unique and welcome architectural option.

    The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

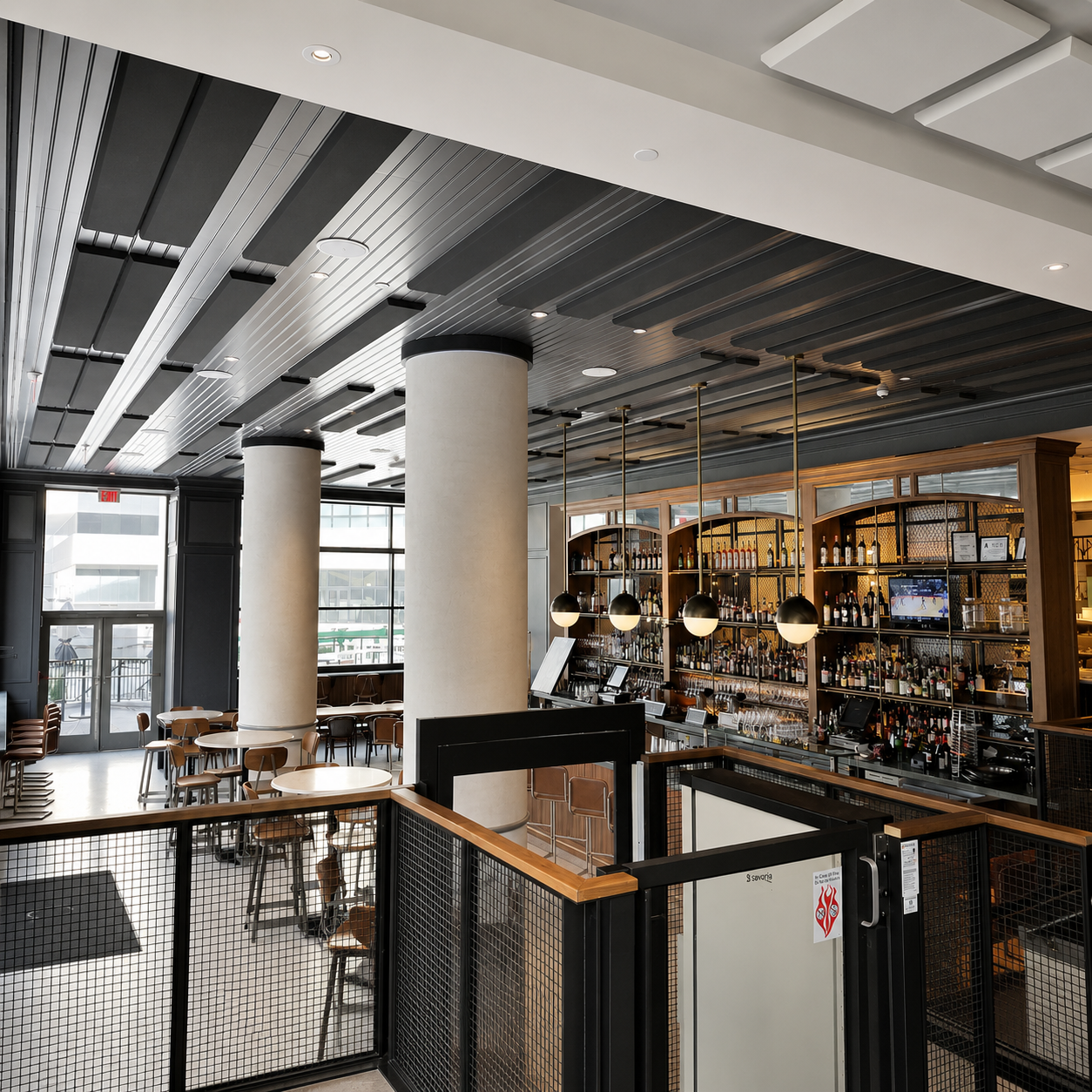

    Basotect® Melamine Acoustic Tiles

    Sound Absorption Coefficient [Sabins / ft²]
    Finish Thickness [in] 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
    White 1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
    2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
    3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
    Light Grey 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
    2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
    3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
    Obsidian
    (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)    		 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
    2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
    3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
    Absorption results tested in accordance to ASTM C 423-09a

    Sound Absorption

    Sound Absorption Testing to ASTM Standard C423-09a indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TechLite® foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TechLite® is an excellent choice for your application.

    *The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

    Additional Information

    Benefits and Highlights

    • Absorbs and reduces noise
    • Very low-density/lightweight
    • Excellent thermal properties
    • Class A fire-rated (ASTM E 84)
    • Easy to install
    • Fits 15/16″ T-grid system


    Uses and Applications

    • Offices
    • Lobbies
    • Restaurants
    • Schools
    • Fitness facilities


    Downloads

  • ASTM E-84 Test Summary Report - Natural White Melamine
  • ASTM E-84 Test Summary Report - ATC Coating
  • Buy America Certification
  • Basotect G Technical Information Sheets
  • Basotect B Technical Information Sheets
  • Acoustic Foam Cleaning Instructions

    • Specifications

    • Size: 23"x23", 23"x48", 24"x24", 24"x48" Custom
    • Color: Natural White Foam, Light Grey Foam, Custom Coated
    • Coated: Pitch Black, Hushed Grey, White Noise, Custom
    • Thickness: 1.75", Custom
    • Material: TECHLITE® Flexible Open-Cell Melamine Foam
    • Minimum Service Temp: -40°F
    • Maximum Service Temp: 350°F
    • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
    • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
    • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
