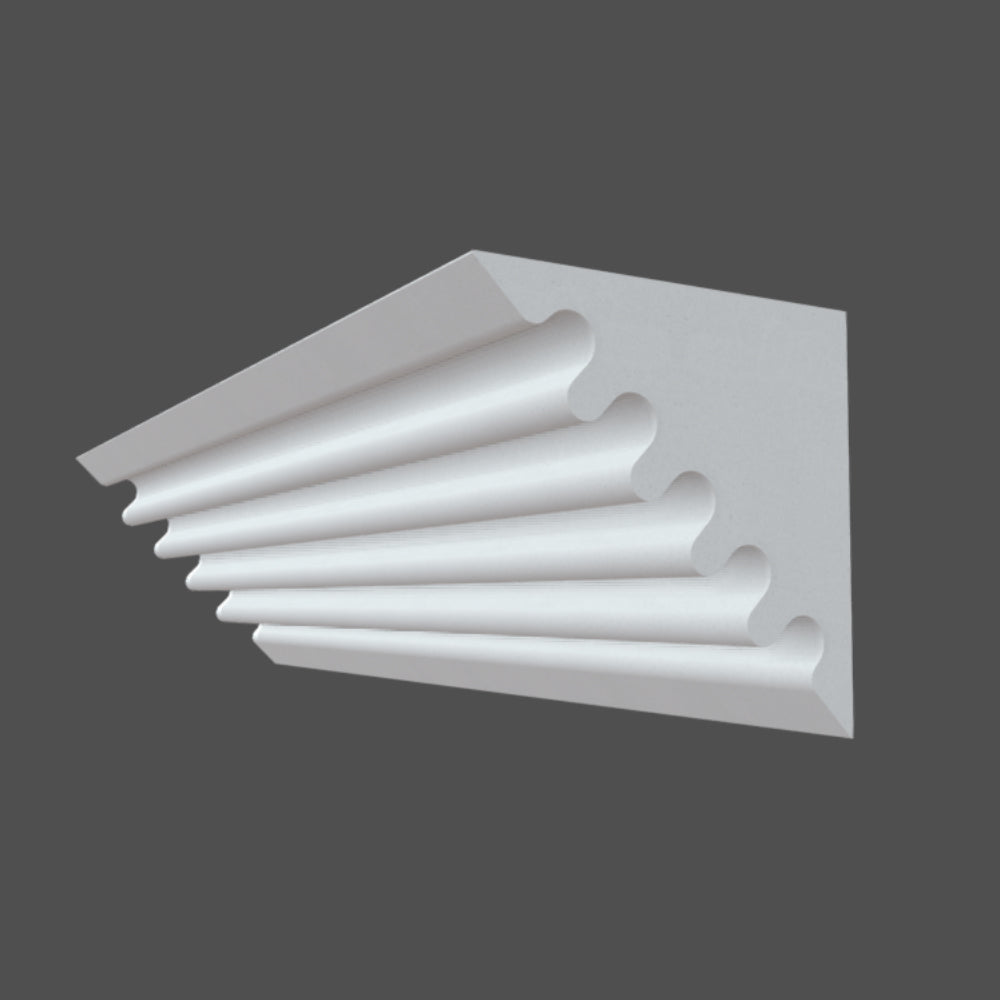

Studio Acoustic Corner Wave Bass Traps

Techlite Studio Wave bass trap features a ripple profile that efficiently manages low-frequency sound waves.

Part Number: TA-EA-020-001-1248-WHITE
Get A Quote
View full details

The Techlite Studio Wave bass trap is a cutting-edge acoustic treatment solution engineered to effectively manage low-frequency sound waves within recording studios, home theaters, and other critical listening environments. Crafted with precision using advanced materials and design principles, this bass trap offers unparalleled performance in attenuating bass frequencies that often plague untreated rooms, resulting in muddy mixes and inaccurate sound reproduction. Its innovative wave-like profile maximizes surface area for absorption while minimizing physical footprint, making it an ideal choice for spaces where space efficiency is paramount.

Constructed from melamine foam, the Techlite Studio Wave bass trap not only delivers exceptional acoustic performance but also adds a touch of aesthetic sophistication to any room. Its modular design allows for versatile installation options, whether mounted on walls or placed strategically in corners to target problematic bass buildup areas. With its superior absorption capabilities and sleek design, the Techlite Studio Wave bass trap stands as a testament to innovation in acoustic treatment technology, empowering audio professionals and enthusiasts alike to achieve pristine sound environments for their creative endeavors.

Acoustic Foam Sound Absorption Chart

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Ripple profile
  • Lightweight
  • Modular design
  • Targets low frequency bass waves
  • Provides effective sound absorption for room corners
  • Easy Install


Uses and Applications

  • Post Production and Recording Studios
  • Control Rooms
  • Live Broadcast Studios
  • Editing Suites
  • Vocal / Isolation Booths
  • Live Performance Venues
  • Music Classrooms
  • Band Practice / Choral Rehearsal Rooms


Specifications

  • Size: Bass trap is available in 48" lengths for
    wall corners and 24" lengths for ceiling corners.
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Material: Mass Loaded Vinyl, TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
