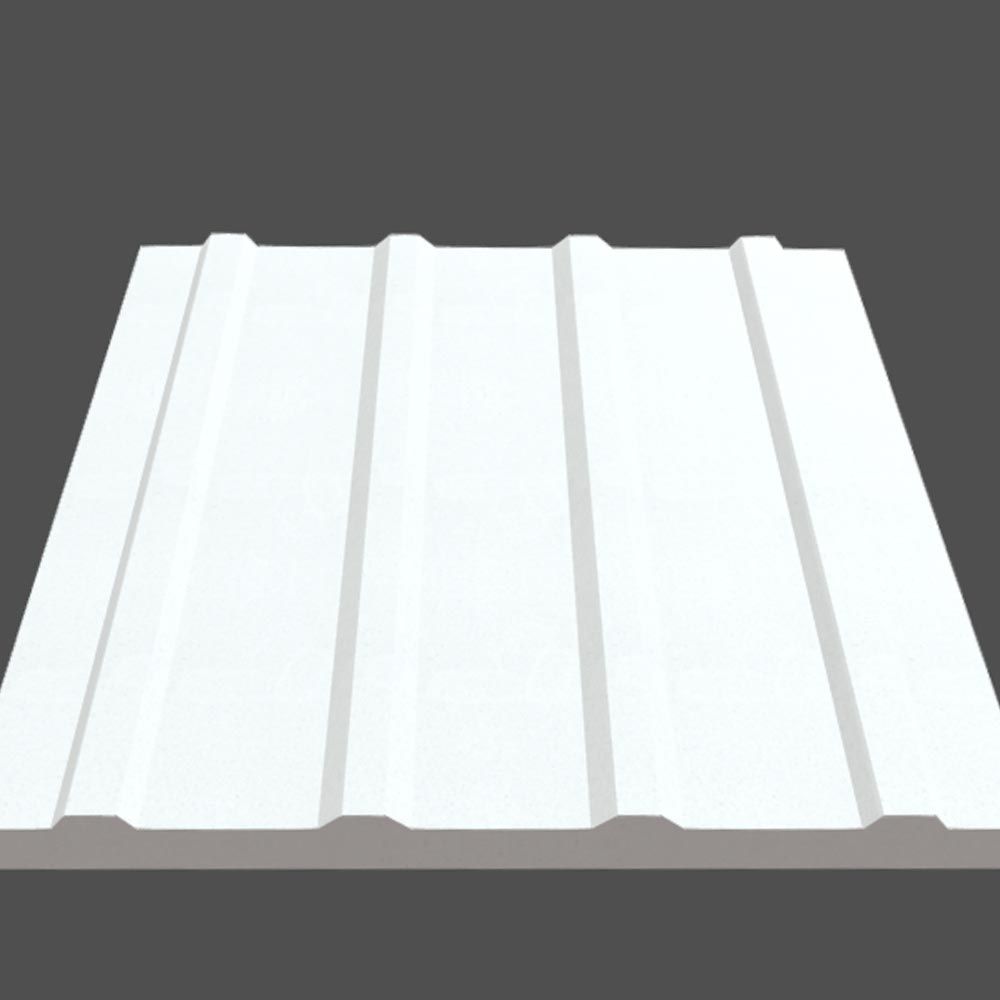

Designer Rails Acoustic Panel

Acoustic panel with simple industrial profile.

Part Number: TA-EA-038-2424-200-014-001-WHITE
Get A Quote
View full details

Experience pristine sound quality with the Techlite Designer series Rails profile melamine acoustic foam panels. Crafted for those seeking a straightforward yet highly effective acoustic treatment solution, the Rails profile brings a touch of sophistication to any professional space.

Designed with subtlety in mind, the Rail panels seamlessly integrate into any environment, ensuring that your office or conference room maintains its aesthetic appeal while benefiting from superior sound control.

The innovative Rails profile not only enhances the acoustics of your space but also adds a modern, sleek look that complements contemporary design styles. Whether you're conducting meetings or working on projects, enjoy an environment free from distracting echoes and reverberations.

Made from high-quality melamine acoustic foam, these panels are engineered to deliver exceptional sound absorption, ensuring that your space remains conducive to productivity and focus. Say goodbye to unwanted noise disruptions and hello to a more comfortable and efficient working environment with Techlite Designer series Rails profile acoustic foam panels.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell melamine foam
  • Subtle profile
  • Continuous pattern
  • Lightweight
  • Cost-effective
  • Same NRC as 1.5"-thick acoustic sheet


Specifications

  • Size: Panel is available in 24" x 24" for general wall applications, or 23" x 23" for applied grid ceiling tiles. Call for custom sizing options
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
