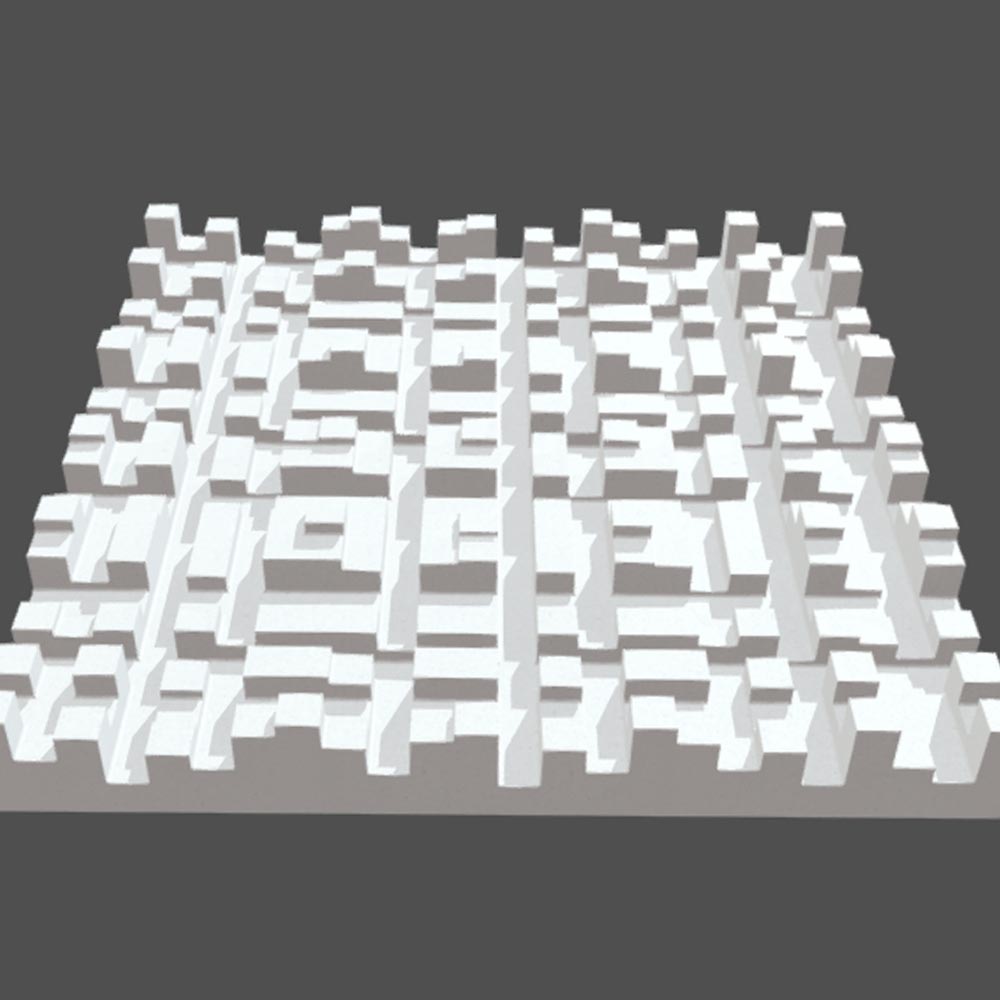

  • Designer Skyline Diffuser Acoustic Tile

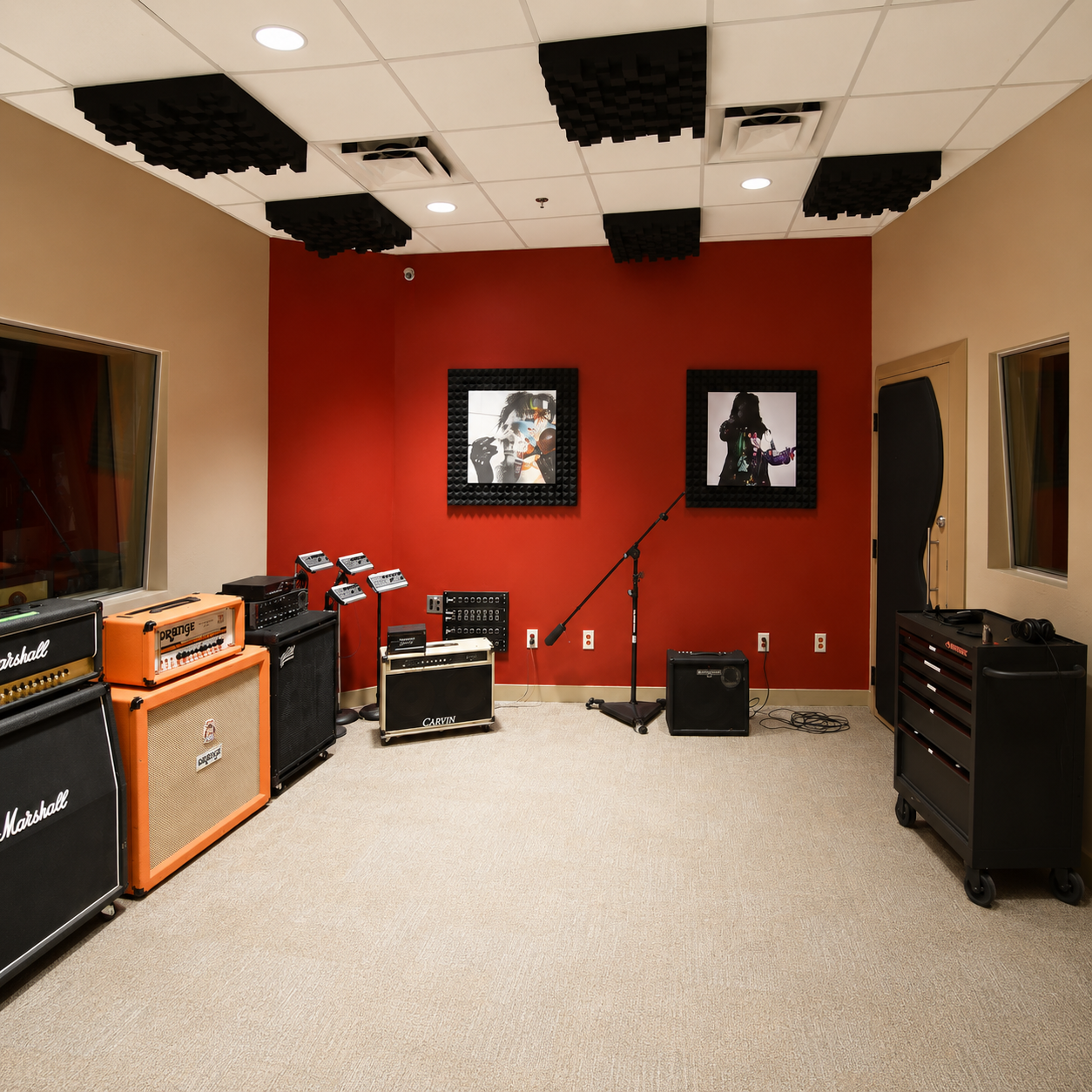

  • Skyline Designer Acoustic Ceiling Tiles Installed at Alice Coopers Solid Rock Teen Center
1 2

Designer Skyline Acoustic Panel

Lightweight acoustic panel that mimicks wooden block panels

Part Number: TA-EA-038-2424-300-009-001-WHITE
Architectural: Ceiling/Suspended Ceiling; Wall Tiles
Size: 23"x23 (Applied Ceiling Grid Tiles), 24"x24" (General Wall Applications)
Custom Capabilities: Color Coating & Size
Availability: Made to Order/Special Order
Lead Time: Standard: 2-3 Weeks; Custom: 4-8 Weeks
Expand all
Get A Quote

Content:Basotect® EcoBalanced Melamine Foam
Color:Natural White or Light Grey
Coating Options:Pitch Black, Hushed Grey, White Noise, Custom

Indoor & Outdoor:Indoor
Applications:Ceiling/Suspended Ceiling; Wall Tiles
Installation:Drop-In Ceiling Tile or Adhesive Applied
Maintenance:Acoustic Foam Cleaning Instructions

Flammability (Natural White):ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
Flammability (Light Grey):ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
Minimum Operating Temperature:-40°F
Maximum Operating Temperature:350°F
Density:Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Buy America Certification
  • Basotect G Technical Information Sheets
  • Basotect B Technical Information Sheets
  • Acoustic Foam Cleaning Instructions

    • Explore the Obsidian Option.

    Designer Skyline Acoustic Panel - Obsidian

    Designer Skyline Diffuser Acoustic Tile In Obsidian™
    Dimensional acoustic panel in Obsidian.
    View full details

    Introducing the Techlite Designer series Skyline profile, a revolutionary solution for those seeking cost-effective alternatives to traditional wooden panels. Crafted from our signature melamine foam, these panels boast a unique block-style profile that adds a touch of sophistication to any space.

    The Skyline profile panels are designed to provide exceptional acoustic performance while maintaining a sleek and modern aesthetic. Each panel is carefully carved from high-quality melamine foam, ensuring durability and long-lasting performance.

    What sets the Skyline profile apart is its versatility. These panels can be stacked in virtually any orientation, allowing for the creation of captivating, non-repeating patterns that can span entire walls or ceilings. Whether you're looking to create a visually stunning focal point or enhance the acoustic properties of your space, the Skyline profile delivers.

    Ideal for studios, offices, conference rooms, and more, these panels offer an affordable way to improve sound quality while adding a touch of style. Say goodbye to the limitations of traditional panels and embrace the endless possibilities of the Skyline profile from Techlite Designer series.

    Sound Absorption Coefficient [Sabins / ft²]
    Finish Thickness [in] 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
    White 1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
    2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
    3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
    Light Grey 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
    2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
    3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
    Obsidian
    (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)    		 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
    2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
    3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
    Absorption results tested in accordance to ASTM C 423-09a

    Sound Absorption

    Sound Absorption Testing to ASTM Standard C423-09a indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TechLite® foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TechLite® is an excellent choice for your application.

    *The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

    Additional Information

    Benefits and Highlights

    • Open-cell melamine foam
    • Block diffuser profile
    • Non-continuous pattern
    • Diffuser type profile
    • Cost-effective
    • Same NRC as 2"-thick acoustic sheet


    Downloads

  • Buy America Certification
  • Basotect G Technical Information Sheets
  • Basotect B Technical Information Sheets
  • Acoustic Foam Cleaning Instructions

    • Specifications

    • Size: Panel is available in 24" x 24" for general wall applications, or 23" x 23" for applied grid ceiling tiles. Call for custom sizing options
    • Color: Natural White Foam, Light Grey Foam, Custom Coated
    • Coated: Pitch Black, Hushed Grey, White Noise, Custom
    • Material: TECHLITE® Flexible Open-Cell Melamine Foam
    • Minimum Service Temp: -40°F
    • Maximum Service Temp: 350°F
    • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
    • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
    • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
