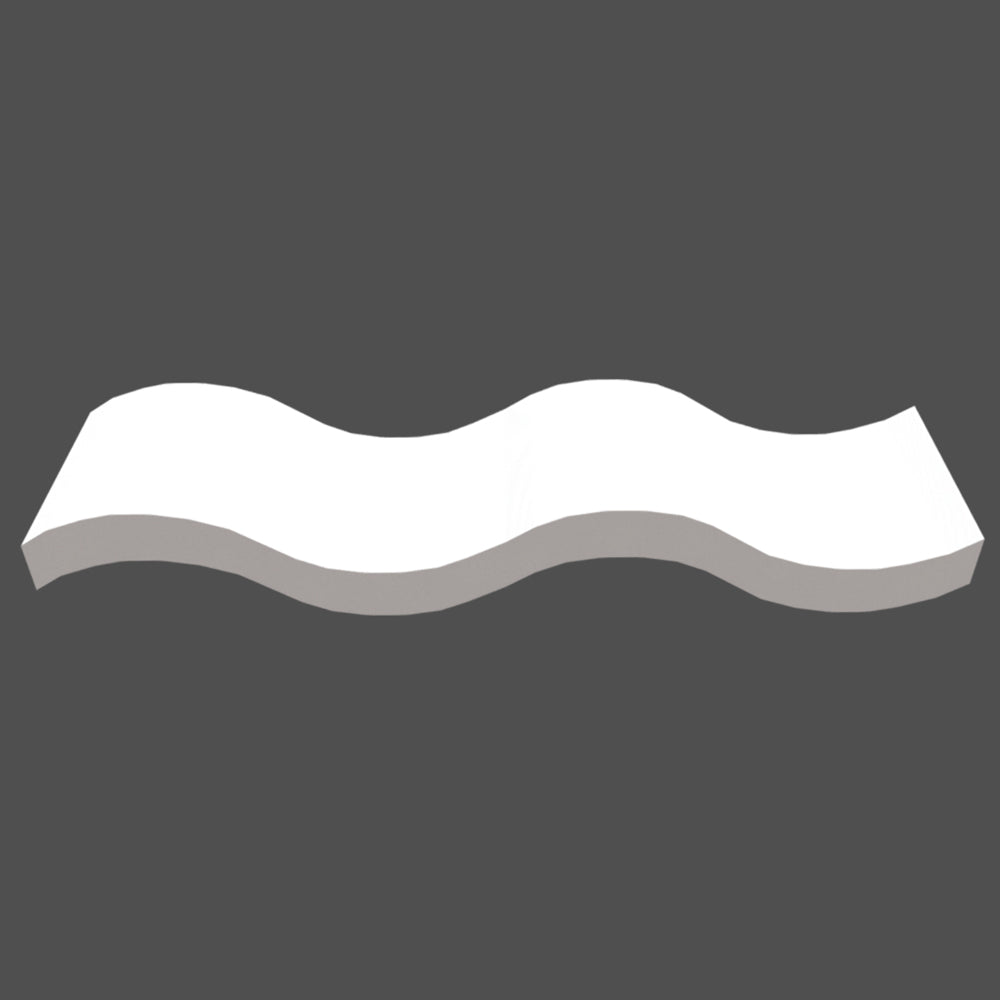

Double Mini Wave Acoustic Panels

Techlite®Double Mini Wave Panels are the perfect examples of how cost, design and functionality can harmonize to create environments that are pleasing to the eye, ear and mind.

Part Number: TA-011
Get A Quote
View full details

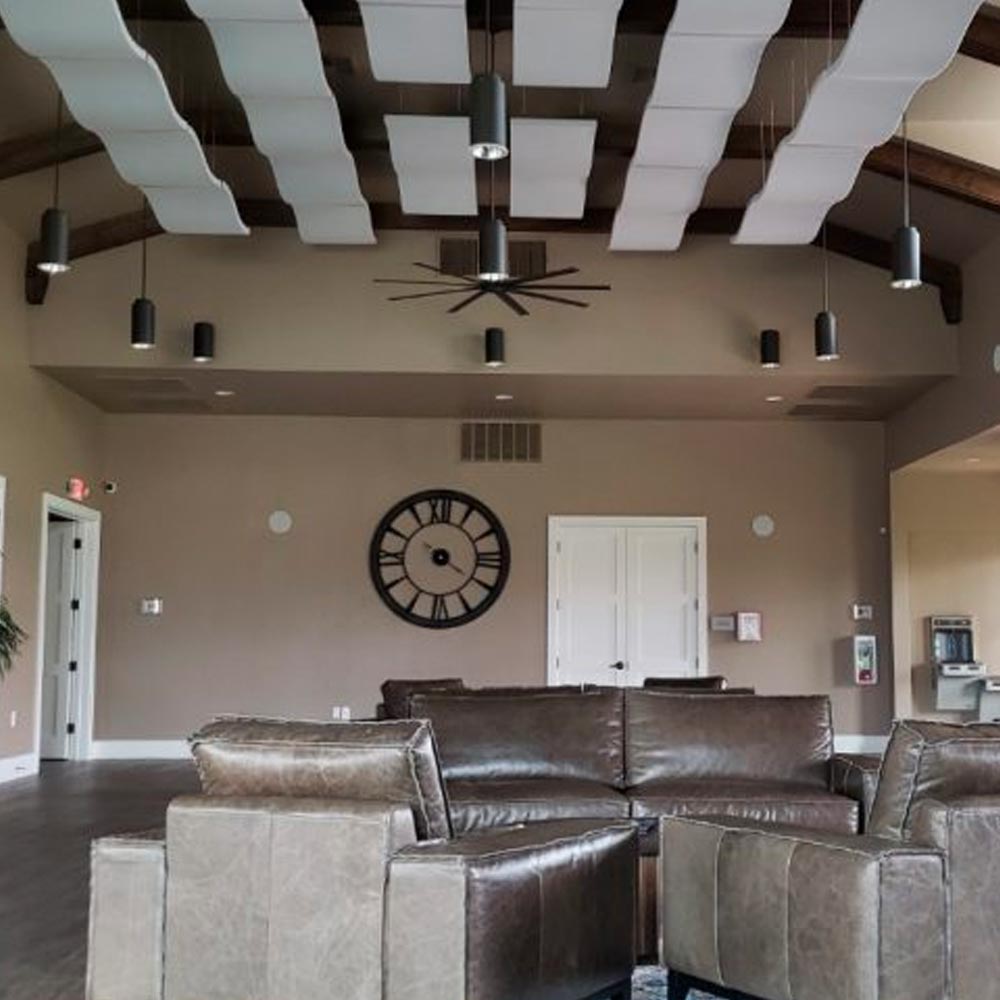

Suspending Acoustical Treatment From The Ceiling Offers Effective Reverberation Control While Adding A Striking Visual Element To The Space.

TECHLITE® Wave Panels, Baffles, and Clouds not only provide superior acoustical performance, but are also lightweight, economical, Class A fire-rated per ASTM E 84, can be coated 1 of over 1,500+ colors using our acoustically-transparent paint. Contractors agree TECHLITE® Wave Panels are very easy to install irrespective of the application.

TECHLITE® natural melamine foam Double Mini Wave Panels are our most economical of the bunch. All of our free-floating Wave Panels can be suspended vertically as baffles, or horizontally as clouds, or if desired can easily be adhered to wall surfaces for an added architectural feature in lieu of typical flat-surfaced gypsum board using off-the-shelf, water-based construction adhesive. For ceiling applications the Waves are incredibly easy to install, suspended down from the structural ceiling via aircraft cable/wire hanger attaching to TECHLITE® patented corkscrew hangers screwed into the backside of the panel. Standard sizes of the Double Mini Wave include 12″ x 48″ or 18″ x 48″, both at 2″ thick designed for optimal sound absorption at the frequencies of interest.

So whether you are trying to provide the highest quality audio reproduction by reducing sound reverberation, or maybe you’re maximize speech intelligibility from speaker to listener in a lecture hall, or perhaps you are simply wanting to add a unique architectural feature suitable to the space in question (e.g. swimming pool); with a veritable plethora of sizes, shapes and colors available to you, TECHLITE® Wave Panels are perfect examples of how design and functionality can harmonize to create environments that are pleasing to the eye, ear and mind. Custom sizes and thicknesses of all Wave products available upon request.


The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Acoustic Foam Sound Absorption Chart

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free
  • Very lightweight, easy install with aircraft cable/wire
  • Creates a unique texture and aesthetic for ceilings
  • Customizable size, baffles/cloud spacing and baffle/cloud depth
  • Painted 1 of 1,500+ colors with acoustically-transparent paint
  • Acoustically tested in accordance with ASTM C423-17 for Sound Absorption
  • Class A fire-rated per ASTM E 84
  • Highly sound-absorptive (NRC 1.00 at 2.5″ thick)
  • High Light Reflectance, LEED points


Uses and Applications

  • Retail, Restaurants
  • Education, Classrooms
  • Auditoriums, Theaters
  • Performing Arts Centers
  • Swimming Pools, Aquatic Centers
  • Gymnasiums
  • Lecture Halls
  • Large arenas, stadiums
  • Airports


Specifications

  • Size: 12"x48", 18"x48", Custom
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Thickness: 2", 3", Custom

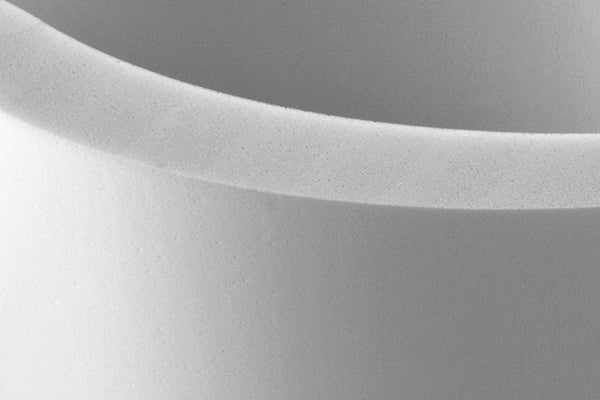

  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
