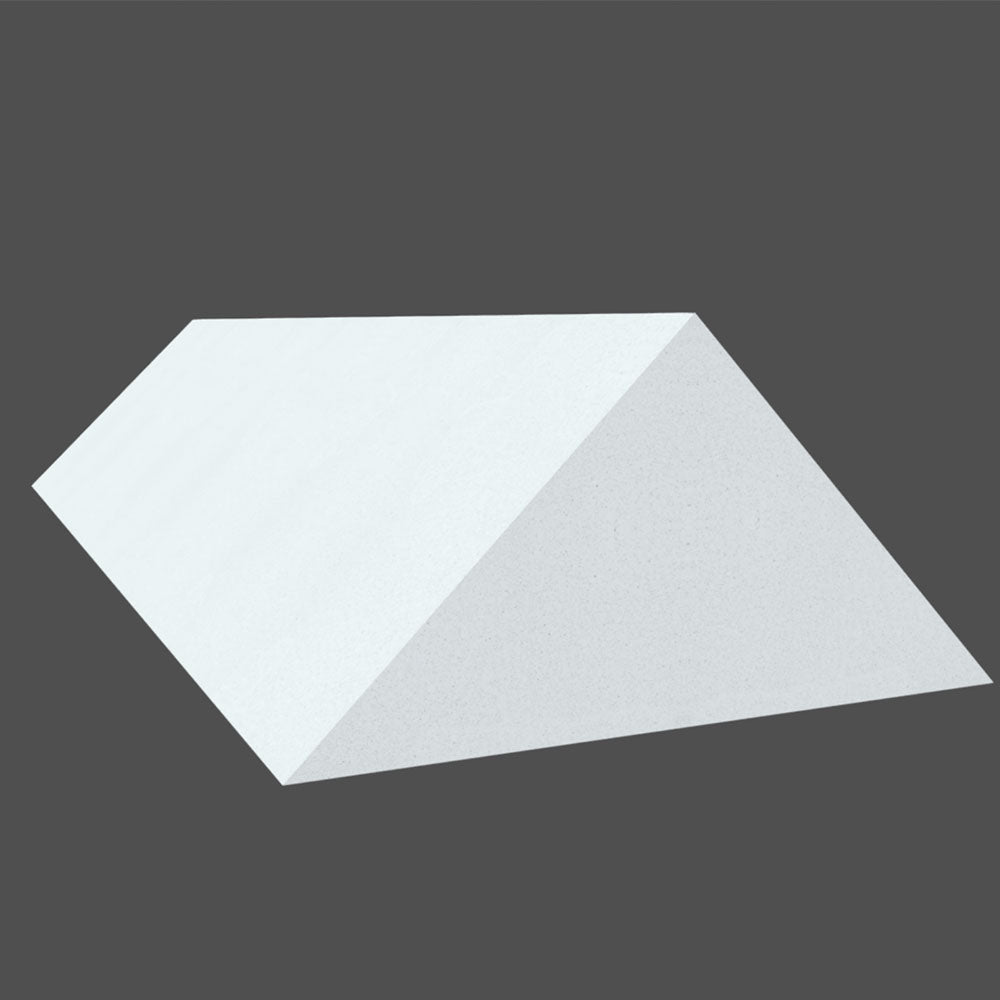

Planar Acoustic Bass Trap

Planar bass trap features a flat design profile that treats low-frequency sound waves.

Part Number: TA-EA-020-002-1248-WHITE
Get A Quote
View full details

The Techlite Planar bass trap is a cutting-edge acoustic treatment solution designed to tackle low-frequency sound waves with precision in recording studios, home theaters, and critical listening spaces. Its sophisticated engineering ensures efficient control over bass frequencies, resulting in improved sound clarity and reduced unwanted resonances.

Crafted with a sleek and contemporary design, the Techlite Planar bass trap not only enhances acoustic performance but also adds a touch of modern aesthetics to any space. Its construction utilizes lightweight melamine foam, a material known for its exceptional absorption capabilities, particularly in the bass range.

One of the standout features of this bass trap is its innovative planar profile. This design maximizes the surface area available for sound absorption while minimizing the physical footprint of the trap. This versatility makes it suitable for various room layouts and configurations, offering flexibility in installation options without compromising on performance.

Overall, the Techlite Planar bass trap excels in providing superior acoustic performance, making it an ideal choice for audio professionals and enthusiasts seeking to elevate their listening experience to new heights.

Acoustic Foam Sound Absorption Chart

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Planar profile
  • Lightweight
  • Simple design
  • Targets low frequency bass waves
  • Provides sound absorption for room corners
  • Easy Install


Specifications

  • Size: Bass trap is available in 48" lengths for
    wall corners and 24" lengths for ceiling corners.
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Material: Mass Loaded Vinyl, TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
