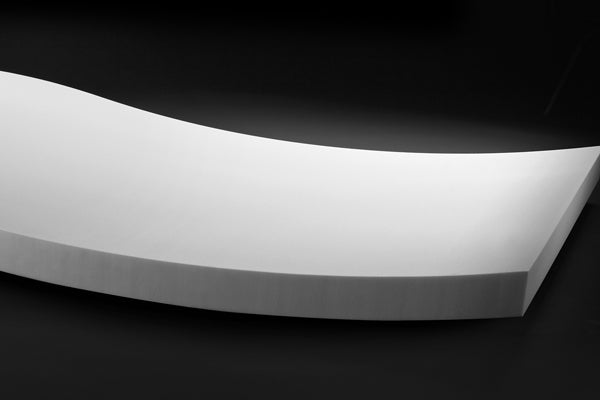

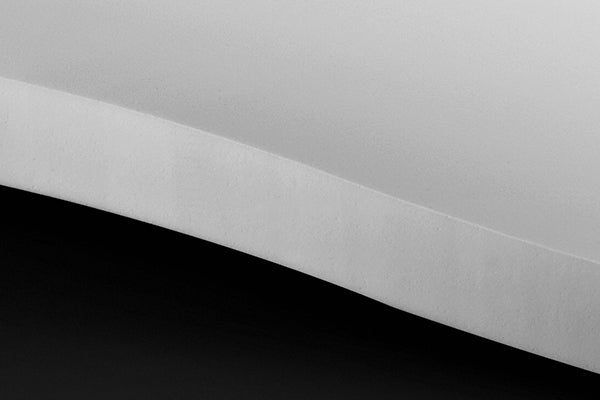

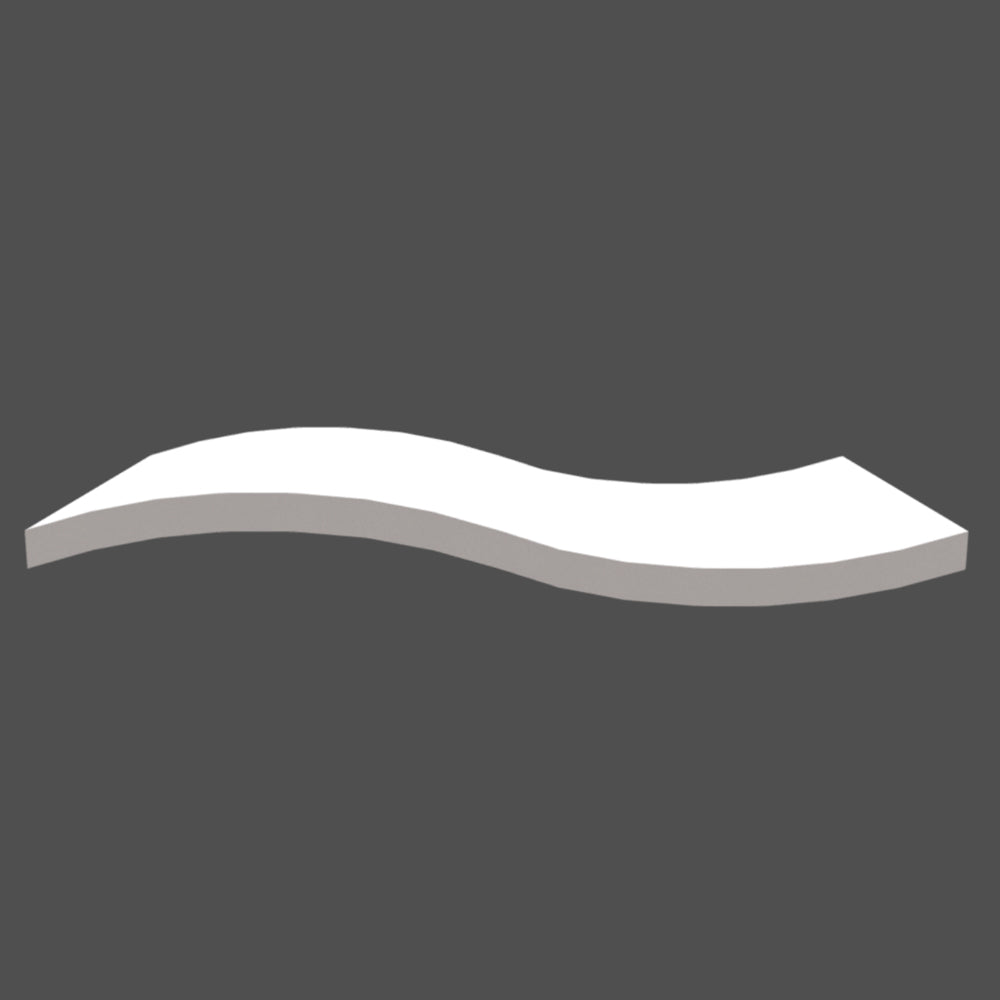

Standard Single Wave Acoustic Panels

Techlite’s natural melamine foam Standard and Large Wave Panels are larger versions of the Mini Wave and pack a powerful acoustical punch.

Part Number: TA-009
Get A Quote
View full details

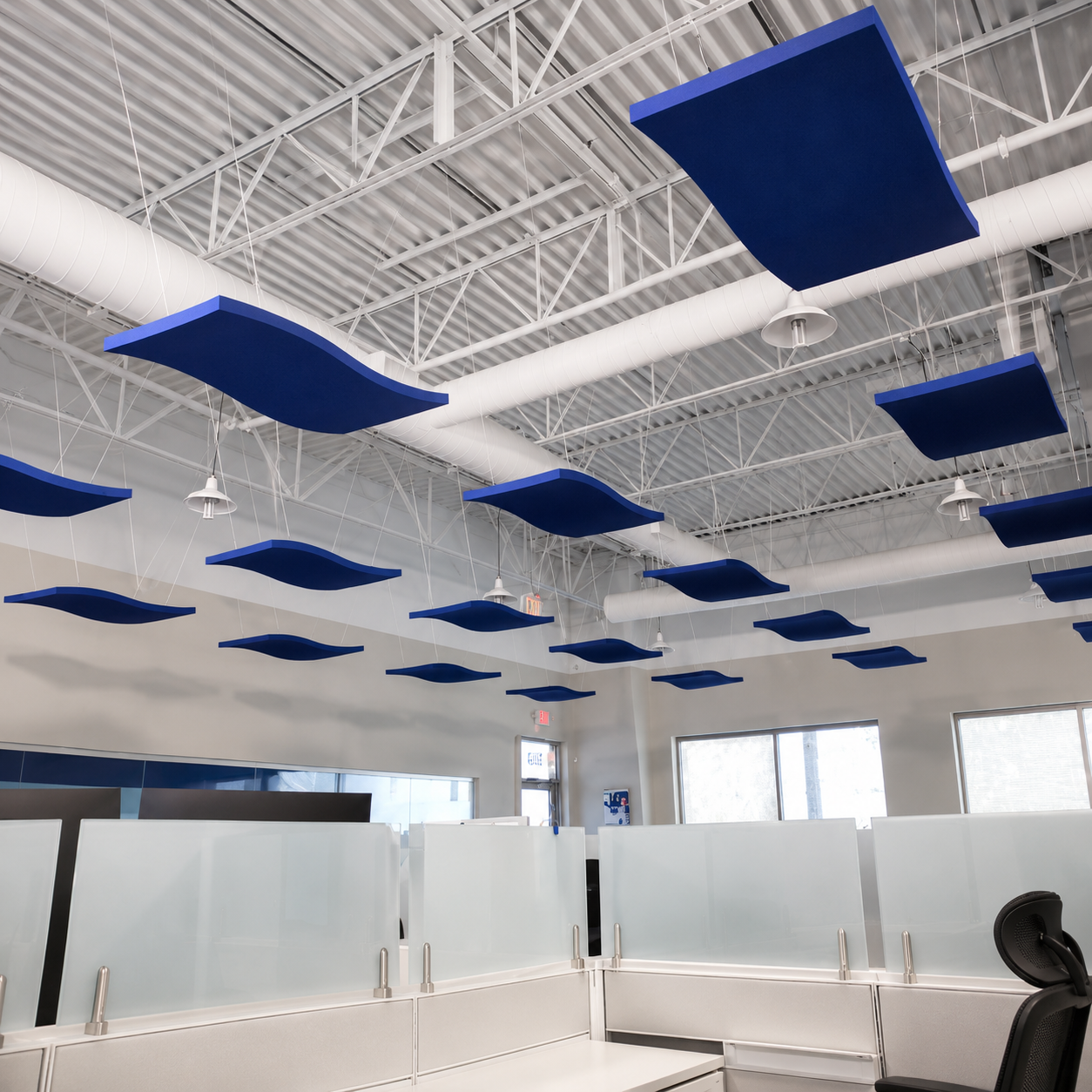

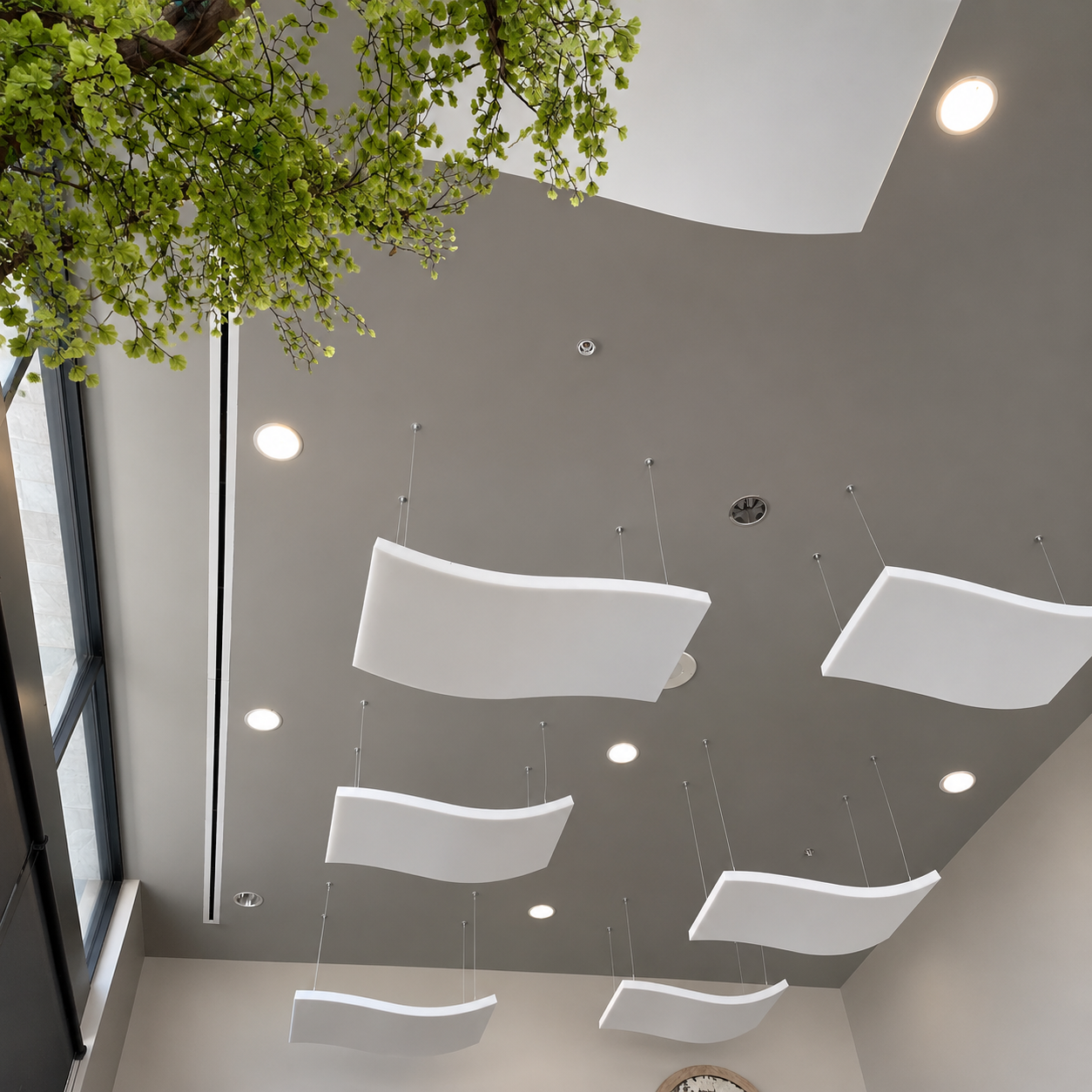

Suspending Acoustical Treatment From The Ceiling Offers Effective Reverberation Control While Adding A Striking Visual Element To The Space.

TECHLITE® Wave Panels, Baffles, and Clouds not only provide superior acoustical performance, but are also lightweight, economical, Class A fire-rated per ASTM E 84, can be coated 1 of over 1,500+ colors using our acoustically-transparent paint. Contractors agree TECHLITE® Wave Panels are very easy to install irrespective of the application.

TECHLITE® natural melamine foam Standard and Large Wave Panels are larger versions of the Mini Wave and pack a powerful acoustical punch. The acoustical performance of any interior surface can generally be improved by increasing the sound absorptive material’s surface area and thickness. That is why our Standard and Large Wave Panels come in a wide variety of sizes including 24″ x 24″ 24″ x 48″, 48″ x 48″, 48″ x 72″ and 48″ x 96″, with standard thicknesses ranging from 2″ up to 3″ thick. The noise reduction coefficients of the Wave Panels were derived from accredited lab tests conducted in accordance with ASTM C 423 and showcase the Waves acoustic supremacy in the marketplace as the data indicates the Waves become 100% absorptive in the human speech frequencies (250 Hertz to 2,000 Hertz) at a mere 2.5″ thick.

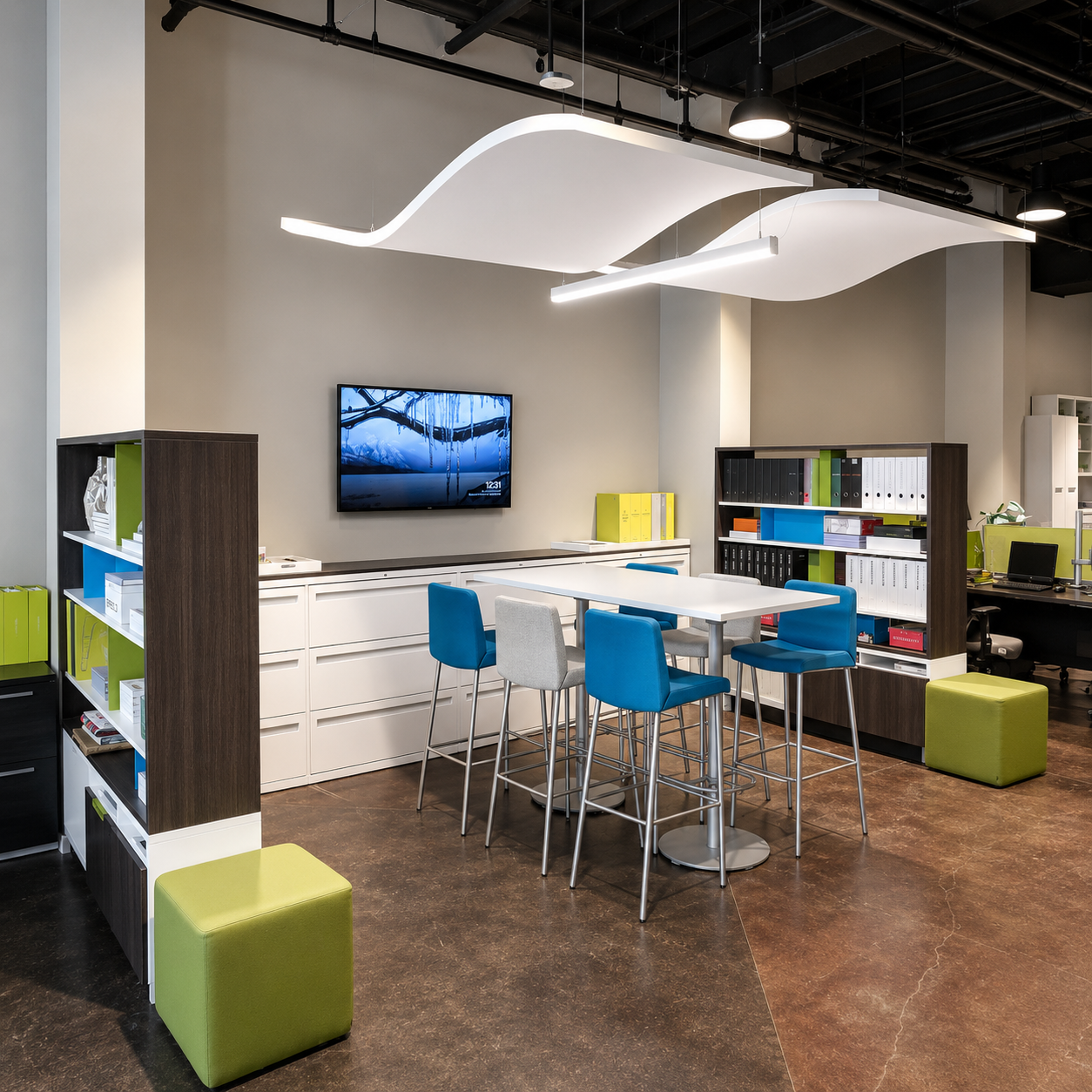

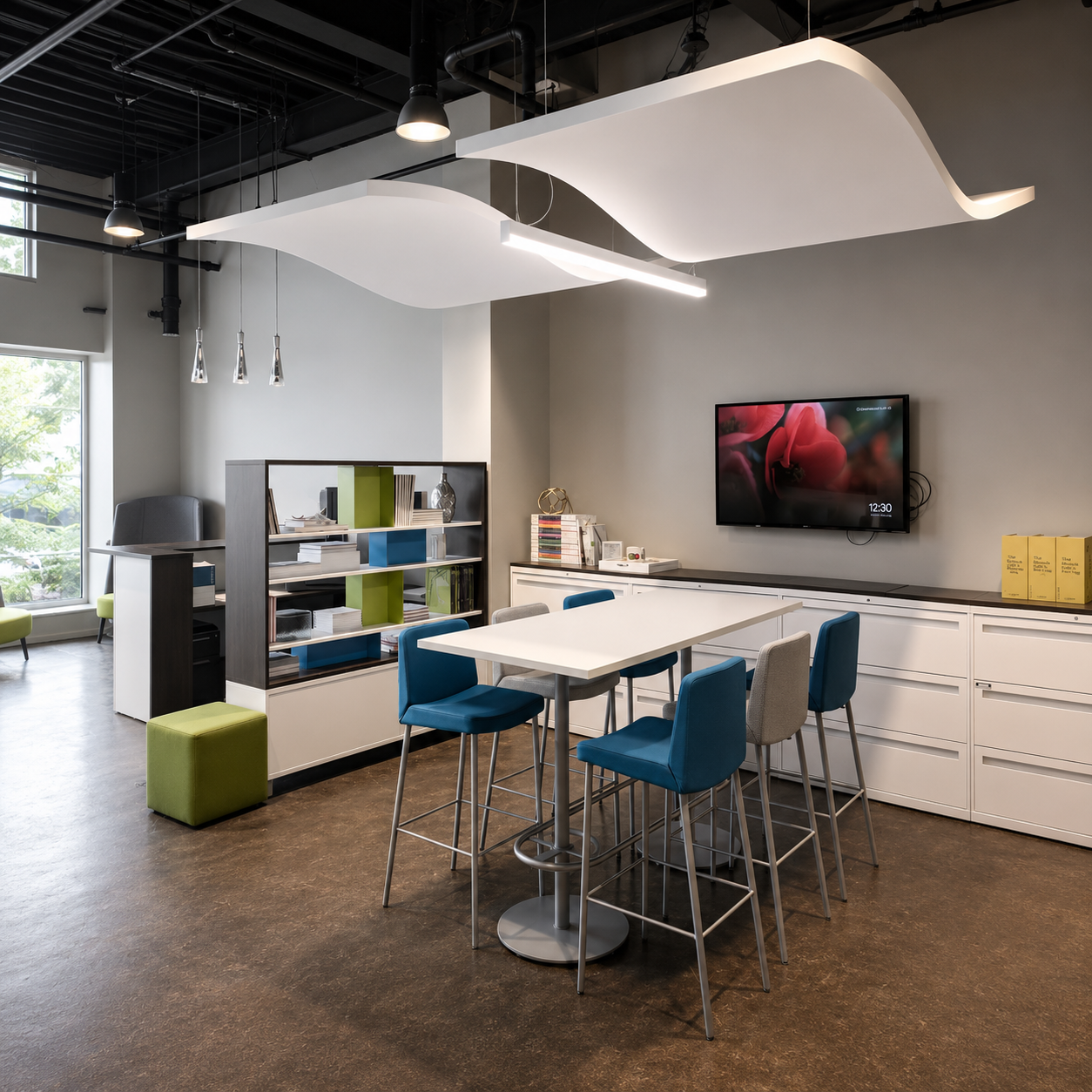

So whether you are trying to provide the highest quality audio reproduction by reducing sound reverberation, or maybe you’re maximizing speech intelligibility from speaker to listener in a lecture hall, or perhaps you are simply wanting to add a unique architectural feature suitable to the space in question (e.g. swimming pool); with a veritable plethora of sizes, shapes and colors available to you, TECHLITE® Wave Panels are perfect examples of how design and functionality can harmonize to create environments that are pleasing to the eye, ear and mind. Custom sizes and thicknesses of all Wave products available upon request.


The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free
  • Very lightweight, easy install with aircraft cable/wire
  • Creates a unique texture and aesthetic for ceilings
  • Customizable size, baffles/cloud spacing and baffle/cloud depth
  • Painted 1 of 1,500+ colors with acoustically-transparent paint
  • Acoustically tested in accordance with ASTM C423-17 for Sound Absorption
  • Class A fire-rated per ASTM E 84
  • Highly sound-absorptive (NRC 1.00 at 2.5″ thick)
  • High Light Reflectance, LEED points


Uses and Applications

  • Retail, Restaurants
  • Education, Classrooms
  • Auditoriums, Theaters
  • Performing Arts Centers
  • Swimming Pools, Aquatic Centers
  • Gymnasiums
  • Lecture Halls
  • Large arenas, stadiums
  • Airports


Specifications

  • Size: 24" x 48", 48" x 48", 48" x 96", Custom
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
  • Thickness: 2", 2.5", 3", Custom
  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
