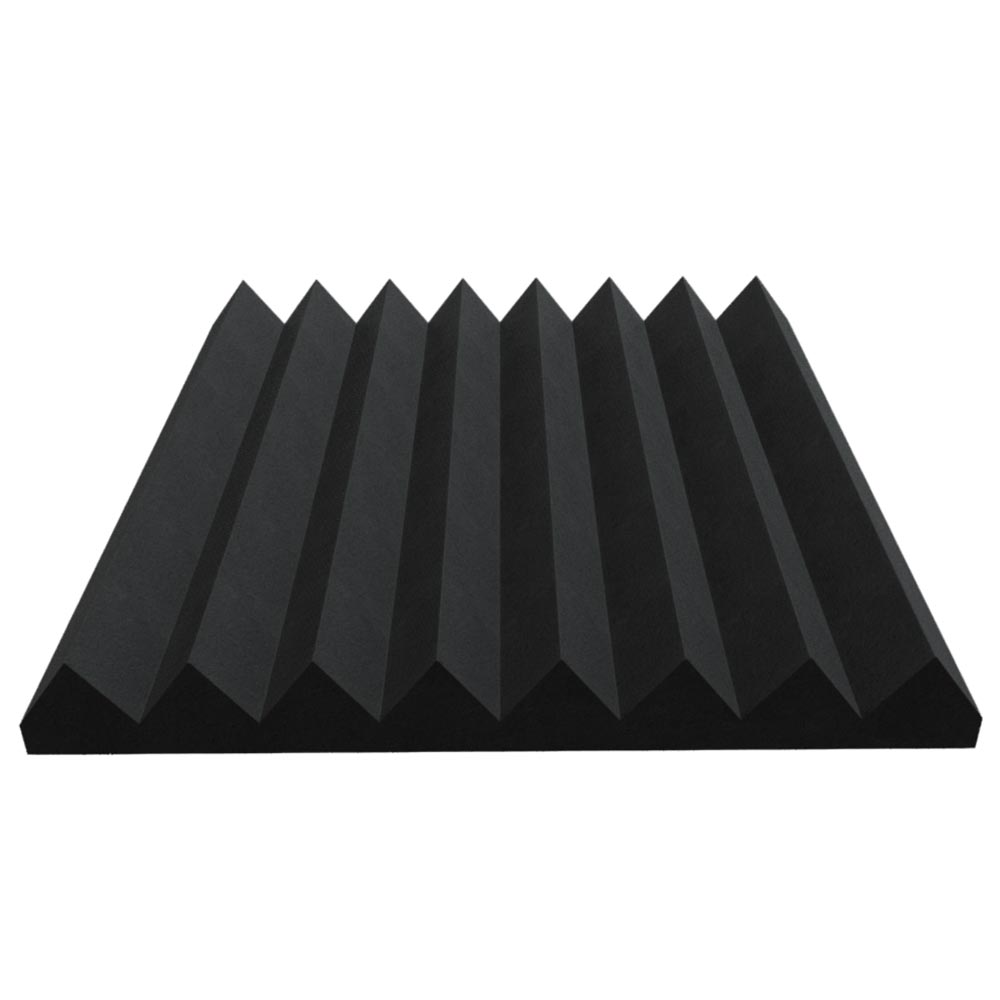

Triangular Acoustic Wedge Panels - Obsidian™
Couldn't load pickup availability
Techlite® Triangular Wedge Panels in Obsidian™ are developed for architects, interior designers, and sound engineers who require effective acoustic control paired with a defined geometric aesthetic. Manufactured from Basotect® Ecobalanced Melamine Foam, these panels are designed to reduce mid- and high-frequency reflections while introducing a structured surface profile suited for studios, control rooms, and other acoustically demanding interiors.
The triangular wedge configuration creates a consistent angular pattern that enhances sound absorption while helping to break up direct reflections across treated surfaces. For sound engineers, this results in improved clarity and reduced echo artifacts. For architects, it offers a repeatable system that integrates cleanly into wall layouts. For interior designers, the faceted profile introduces depth and shadow variation, contributing to a more dynamic yet controlled visual environment.
Techlite® Triangular Wedge Panels also support sustainability-focused design objectives. Basotect® Ecobalanced Melamine Foam contributes to responsible material selection and may assist in achieving LEED-related goals tied to Indoor Environmental Quality and Materials & Resources. The panels are also Class A fire-rated per ASTM E84, aligning with performance and safety requirements for interior applications.
Obsidian™ Coloration & Visual CharacterObsidian™ is a deep, dark charcoal acoustic foam with subtle blue undertones. Depending on lighting conditions, it can range from a rich charcoal gray to a dark navy hue—and when installed in high ceilings or low-light environments, it presents as visually black. The result is an acoustic material that integrates seamlessly into contemporary architecture while delivering the performance Techlite® is known for. For applications requiring an ultimate, rich black appearance, Obsidian™ panels may be coated utilizing Techlite®’s proprietary paint system. [Pictured Right: Obsidian™ foam color under various interior lighting] |
 |
| Finish | Thickness [in] | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| Light Grey | 1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A | |
| Obsidian (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.) |
1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A |
*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.
