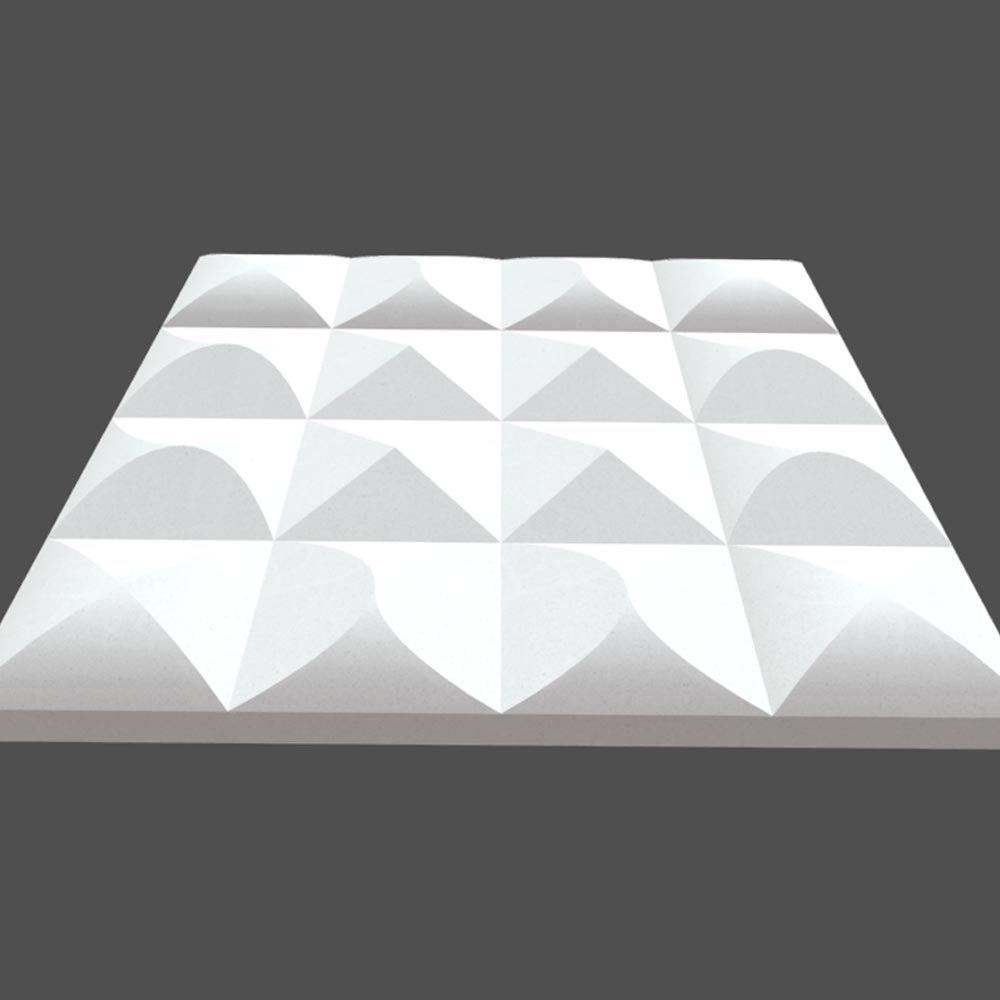

Designer Apex Acoustic Panel

Lightweight designer acoustic panel that features an elegant mosaic pattern

Part Number: TA-EA-038-2424-200-007-001-WHITE
Architectural: Ceiling/Suspended Ceiling; Wall Tiles
Size: Size: 23"x23 (Applied Ceiling Grid Tiles), 24"x24" (General Wall Applications)
Custom Capabilities: Color Coating & Size
Availability: Made to Order/Special Order
Lead Time: Standard: 2-3 Weeks; Custom: 4-8 Weeks
Expand all
Get A Quote

Content:Basotect® EcoBalanced Melamine Foam
Color:Natural White or Light Grey
Thickness: 2.0"
Coating Options:Pitch Black, Hushed Grey, White Noise, Custom

Indoor & Outdoor:Indoor
Applications:Ceiling/Suspended Ceiling; Wall Tiles
Installation:Drop-In Ceiling Tile or Adhesive Applied
Maintenance: Acoustic Foam Cleaning Instructions

Flammability (Natural White):ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
Flammability (Light Grey):ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
Minimum Operating Temperature:-40°F
Maximum Operating Temperature:350°F
Density:Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3

View full details

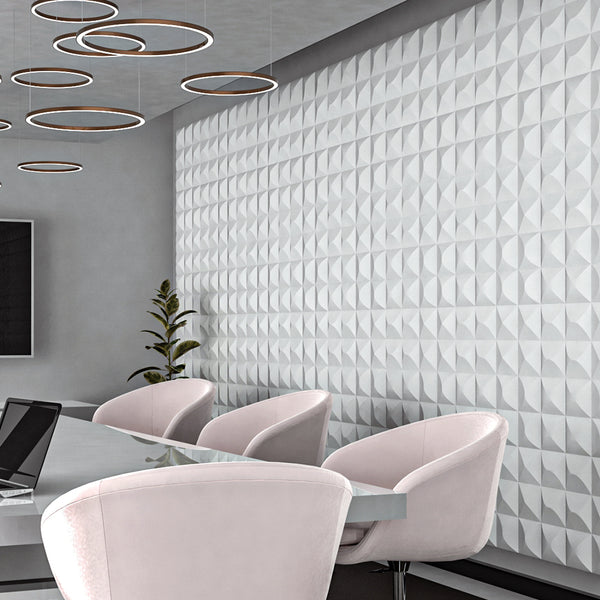

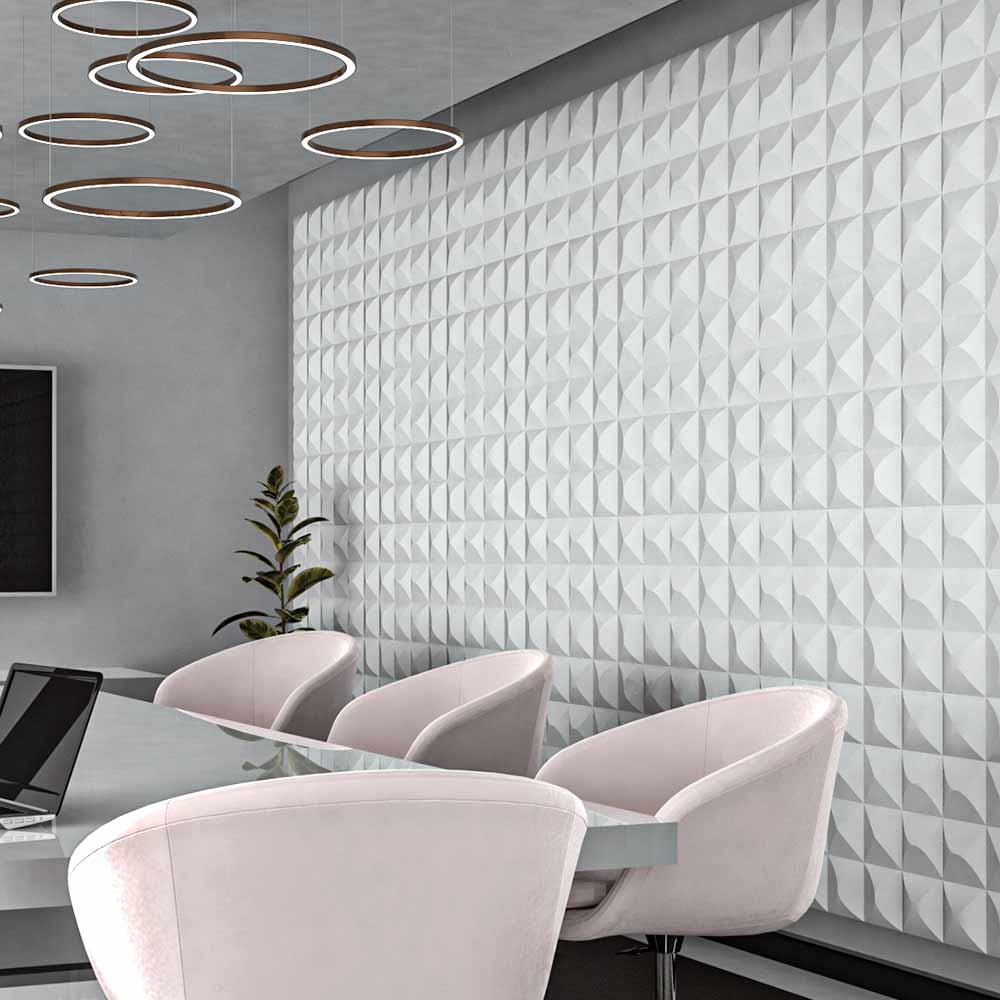

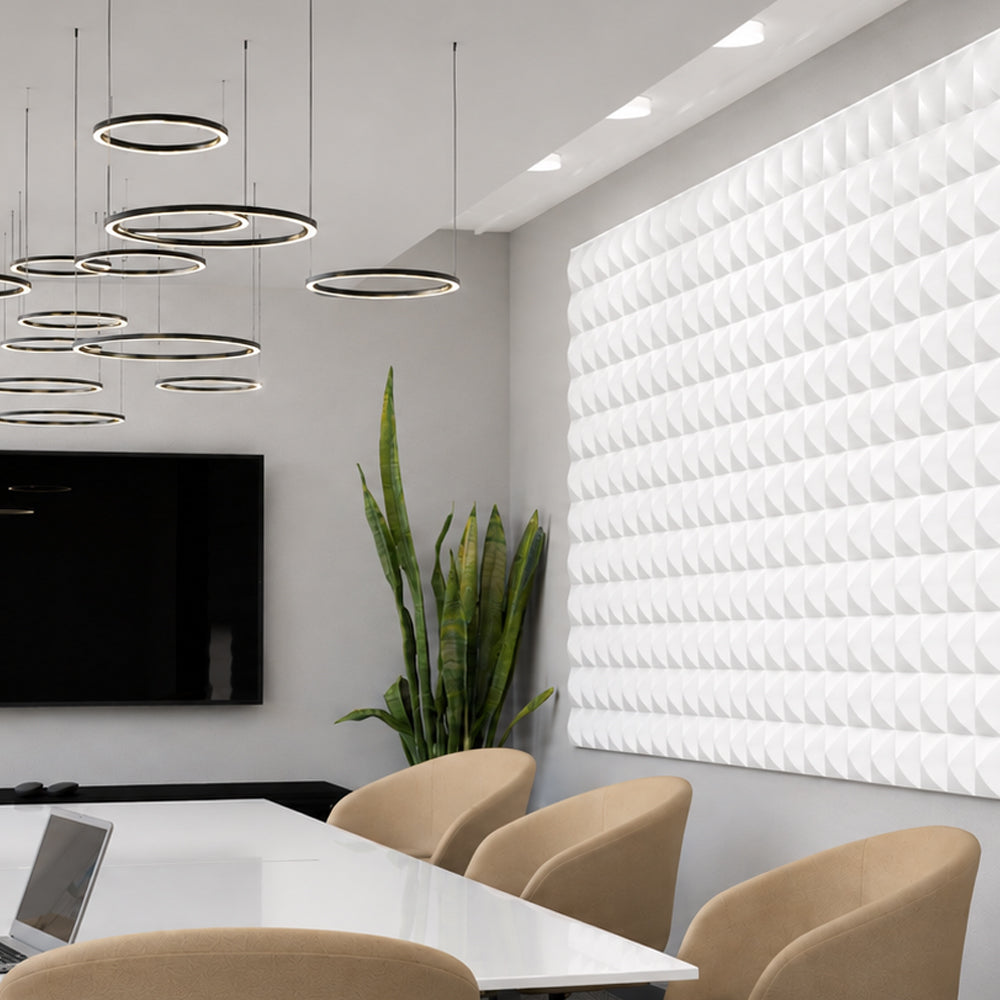

Elevate the ambiance of your office or studio with the sophistication of Techlite Designer series Apex profile acoustic tiles. Crafted from premium melamine foam, these tiles not only enhance the aesthetic appeal of your space but also provide superior sound absorption properties, ensuring a quieter and more conducive environment for work or creativity.

The Apex profile boasts a stylish pattern that is both contemporary and versatile, allowing you to create a striking accent wall or ceiling that effortlessly captures attention. Its sleek lines and geometric design add a touch of modern elegance to any room, while the soft texture of the melamine foam adds a tactile dimension to the space.

Whether you're looking to revitalize a drab wall or ceiling, the endless repeatability of the Apex profile allows for seamless integration into any design scheme. Mix and match colors to create a customized look, or opt for a uniform palette for a more minimalist appeal.

Beyond its aesthetic charm, these acoustic tiles offer practical benefits as well. By effectively absorbing and diffusing sound, they help reduce noise levels within your office or studio, promoting a more comfortable and productive environment. Say goodbye to distracting echoes and reverberations, and hello to improved focus and clarity.

Transform your workspace into a haven of creativity and inspiration with Techlite Designer series Apex profile acoustic tiles. Let your walls and ceilings become canvases for expression, where style meets functionality in perfect harmony.

Sound Absorption Coefficient [Sabins / ft²]

Finish Thickness [in] 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
White 1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
Light Grey 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Obsidian
(Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)
1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Absorption results tested in accordance to ASTM C 423-09a

Sound Absorption

Sound Absorption Testing to ASTM Standard C423-09a indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TechLite® foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TechLite® is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell melamine foam
  • Single repeatable designer profile
  • Eligible for Acoustically Transparent Coating
  • Lightweight
  • Easy Install
  • Same NRC as 1"-thick acoustic sheet


Specifications

  • Size: Panel is available in 24" x 24" for general wall applications, or 23" x 23" for applied grid ceiling tiles. Call for custom sizing options
  • Color: Natural White Foam, Light Grey Foam, Custom Coated
  • Coated: Pitch Black, Hushed Grey, White Noise, Custom
  • Material: TECHLITE® Flexible Open-Cell Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
  • Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
  • Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30
