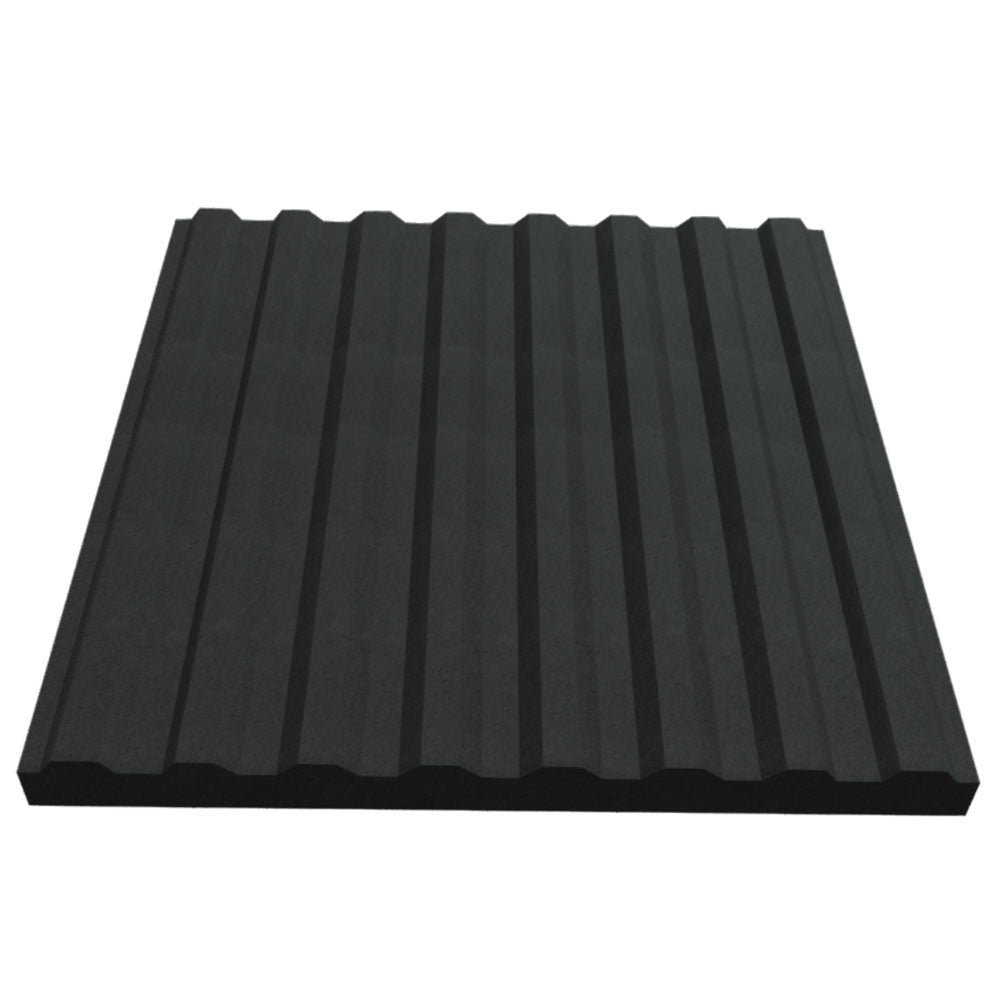

The TECHLITE® Designer Corrugated Acoustic Panel in Obsidian introduces a repeating fluted profile that establishes order, depth, and directional emphasis across interior walls and ceilings. Its structured linear ridges create shadow variation and surface articulation, enabling architects and interior designers to incorporate acoustic control into the architectural language of a space. For sound engineers, the alternating peaks and recesses increase surface interaction, supporting effective reverberation management and improved room intelligibility.
Engineered utilizing Basotect® Ecobalanced Melamine Foam, the Corrugated panel provides consistent broadband absorption in a lightweight, dimensionally stable format designed exclusively for interior environments. The open-cell composition mitigates reflected sound energy, enhances clarity, and supports acoustic balance in offices, hospitality interiors, education facilities, and performance-oriented spaces. The material is inherently flame resistant and achieves Class A fire-rated performance per ASTM E 84, aligning with interior life-safety requirements.
From a sustainability perspective, the TECHLITE® Designer Corrugated Acoustic Panel supports responsible material specification. Basotect® Ecobalanced Melamine Foam is produced through a reduced carbon footprint methodology and may contribute toward LEED-related credits, including low-emitting materials and environmentally conscious sourcing strategies. This combination of architectural structure, acoustic precision, and environmental accountability ensures performance without compromise.
Obsidian Coloration & Visual CharacterObsidian is a deep, dark charcoal acoustic foam with subtle blue undertones. Depending on lighting conditions, it can range from a rich charcoal gray to a dark navy hue—and when installed in high ceilings or low-light environments, it presents as visually black. The result is an acoustic material that integrates seamlessly into contemporary architecture while delivering the performance Techlite® is known for. For applications requiring an ultimate, rich black appearance, Obsidian panels may be coated utilizing Techlite®’s proprietary paint system. [Pictured Right: Obsidian foam color under various interior lighting] |
 |
| Finish | Thickness [in] | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| Light Grey | 1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A | |
| Obsidian (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.) |
1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A |
*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.
