Designer Hills and Valleys Acoustic Panel
Designer series acoustic panel with soft hills and narrow valleys
Couldn't load pickup availability
The Techlite Designer series presents a sophisticated addition to your acoustic solutions with the sleek Hills and Valleys profile. Crafted from high-quality melamine foam, these panels offer both aesthetic appeal and exceptional sound control properties.
With its subtle yet distinctive design, the Hills and Valleys profile effortlessly enhances any space, whether it's utilized as a wall panel or an applied ceiling tile. Its minimalist appearance adds a touch of modern elegance, making it suitable for a variety of environments, from offices and conference rooms to studios and home theaters.
Despite its slim profile, the Hills and Valleys panel delivers outstanding acoustic performance comparable to our thicker 1-inch acoustic sheets. Its innovative design effectively absorbs sound waves, reducing echo and reverberation to create a more comfortable and productive environment. Whether you're aiming to improve speech intelligibility, enhance music clarity, or simply create a quieter atmosphere, these panels excel in delivering premium sound control.
Constructed from durable melamine foam, these panels are not only lightweight and easy to install, but they also boast excellent fire resistance and long-lasting performance. Additionally, their low-maintenance nature ensures hassle-free upkeep, making them a practical and cost-effective choice for both commercial and residential applications.
From offices seeking a more conducive work environment to homeowners looking to enhance their living spaces, the Hills and Valleys profile from the Techlite Designer series offers a versatile and stylish solution for your acoustic needs.

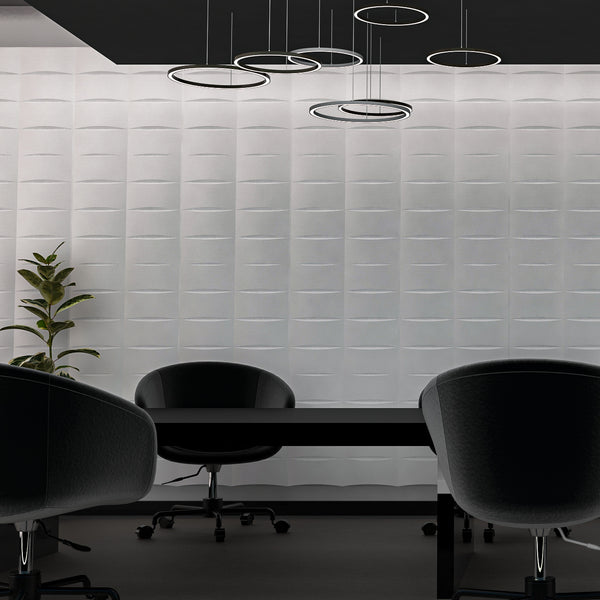

![Designer Hills and Valleys Acoustic Panel Wall Installation](http://techlite.com/cdn/shop/files/cr_v2.276.jpg?crop=center&v=1719414687&width=600)
*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.
Additional Information
Benefits and Highlights
- Open-cell melamine foam
- Slim designer profile
- Eligible for Acoustically Transparent Coating
- Lightweight
- Easy Install
- Same NRC as 1"-thick acoustic sheet
Specifications
- Size: Panel is available in 24" x 24" for general wall applications, or 23" x 23" for applied grid ceiling tiles. Call for custom sizing options
- Color: Natural White Foam, Light Grey Foam, Custom Coated
- Coated: Blue Jay, Charcoal, Desert, Garnet, Hushed Grey, Latte, Mantis, Moss Green, Navy, Pitch Black, Poppy Blue, Red Jam, Sea Foam, Slate, Urban Bronze, White Noise, Not Coated, Sherwin-Williams (1,500+)
- Material: TECHLITE® Flexible Open-Cell Melamine Foam
- Minimum Service Temp: -40°F
- Maximum Service Temp: 350°F
- Density: Light Grey 0.56 0.09 lb/ft3, Natural 0.47 0.13 lb/ft3
- Fire Rating (Light Grey): ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
- Fire Rating (Natural): ASTM E 84 Class A | Flame Spread Index = 5 / Smoke Developed Index = 20, CAN/ULC S102 | Flame Spread Index = 0 / Smoke Developed Index = 30

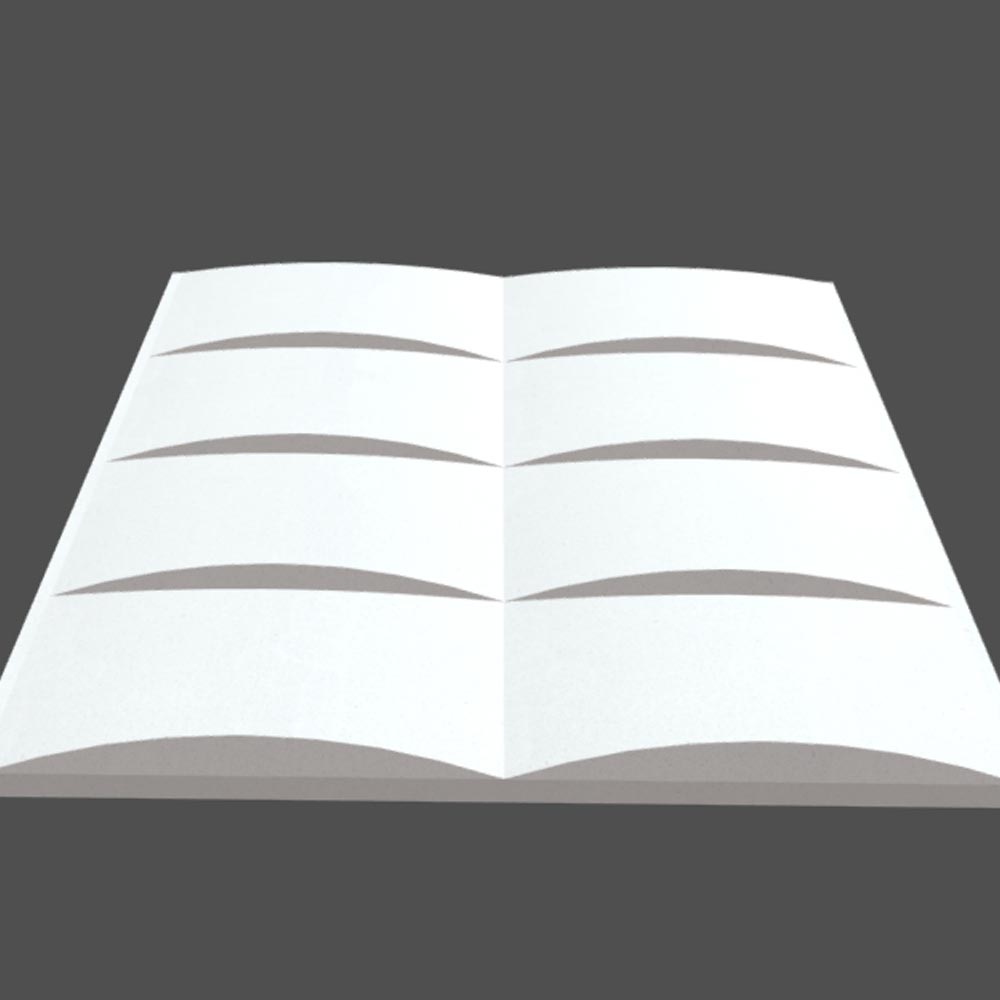

![Designer Hills and Valleys Acoustic Panel](http://techlite.com/cdn/shop/files/hills.jpg?v=1715109958&width=1445)

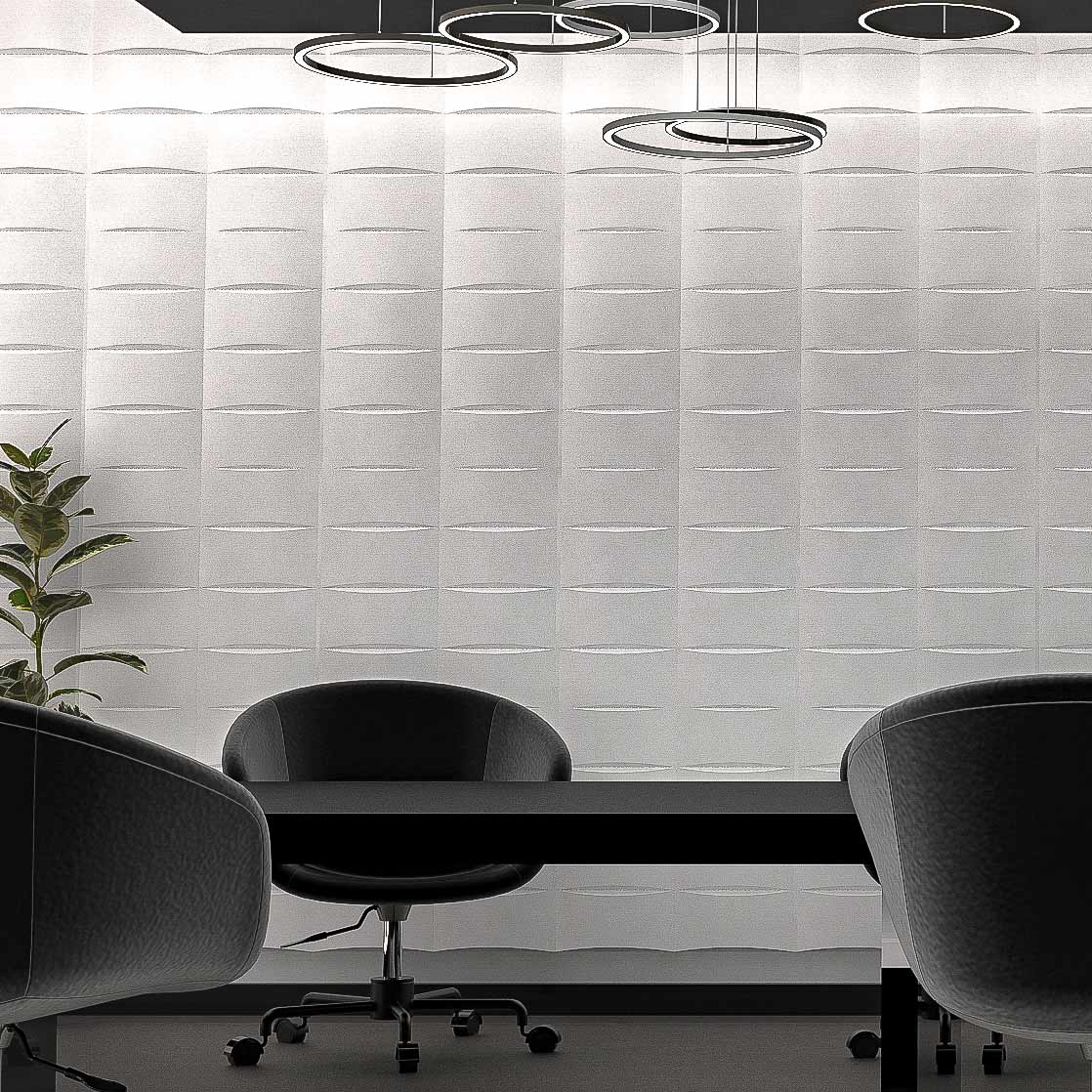

![Designer Hills and Valleys Acoustic Panel](http://techlite.com/cdn/shop/files/WEB_-HILLS-AND-VALLEYTS.jpg?v=1722432642&width=1445)
