Designer Offset Diamond Acoustic Panel
Couldn't load pickup availability
Introducing the latest addition to the Techlite Designer series: the Offset Diamond profile melamine acoustic foam panel. Elevating both form and function, this panel boasts a luxurious design coupled with a thick foam base, offering unparalleled acoustic performance and aesthetic appeal.

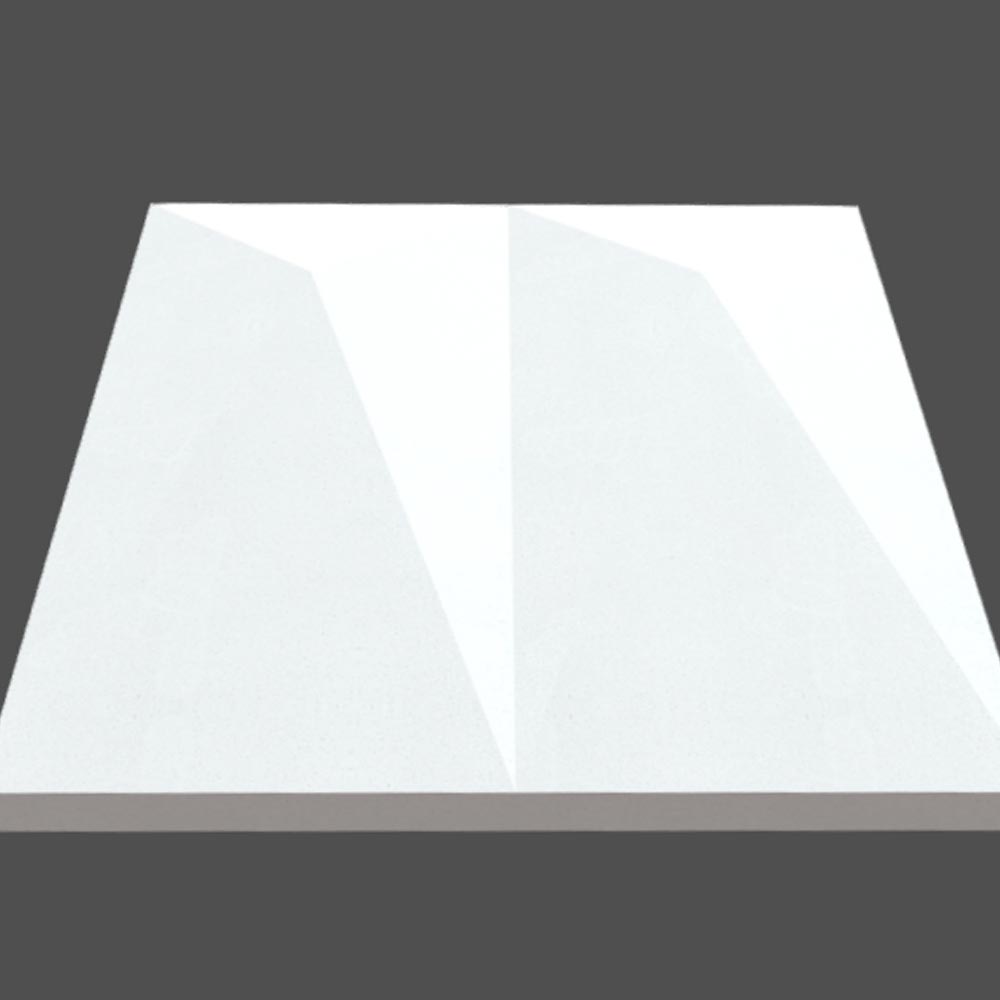

Crafted with precision, the Offset Diamond profile adds a touch of sophistication to any space. Its unique diamond-shaped pattern, combined with the offset arrangement, creates an eye-catching visual effect that enhances the ambiance of any room or lobby.

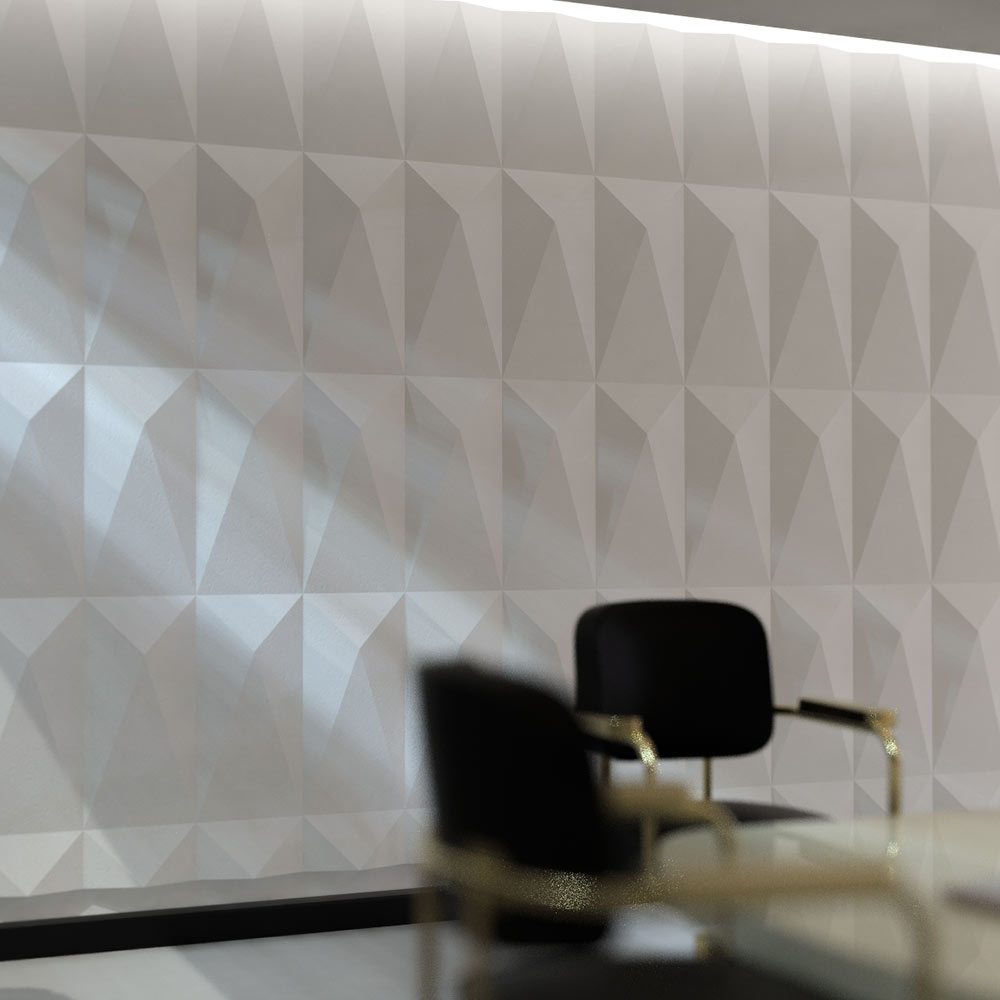

Designed for versatility, these panels can be effortlessly applied to any standard grid ceiling tile, seamlessly integrating into existing architectural designs. Alternatively, they can be strategically placed on walls to not only improve acoustics but also to serve as striking design elements, transforming ordinary spaces into extraordinary ones.
The thick foam base of the Offset Diamond profile ensures exceptional sound absorption, effectively reducing echo and reverberation in various environments. Whether it's a bustling office, a vibrant restaurant, or a serene hotel lobby, these panels contribute to a more comfortable and enjoyable acoustic experience for everyone.
With the Offset Diamond profile from the Techlite Designer series, you can achieve the perfect balance between aesthetics and functionality, enhancing the beauty and acoustics of any space with ease.
| Finish | Thickness [in] | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| Light Grey | 1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A | |
| Obsidian (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.) |
1.50 | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00 | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00 | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A |
*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.
