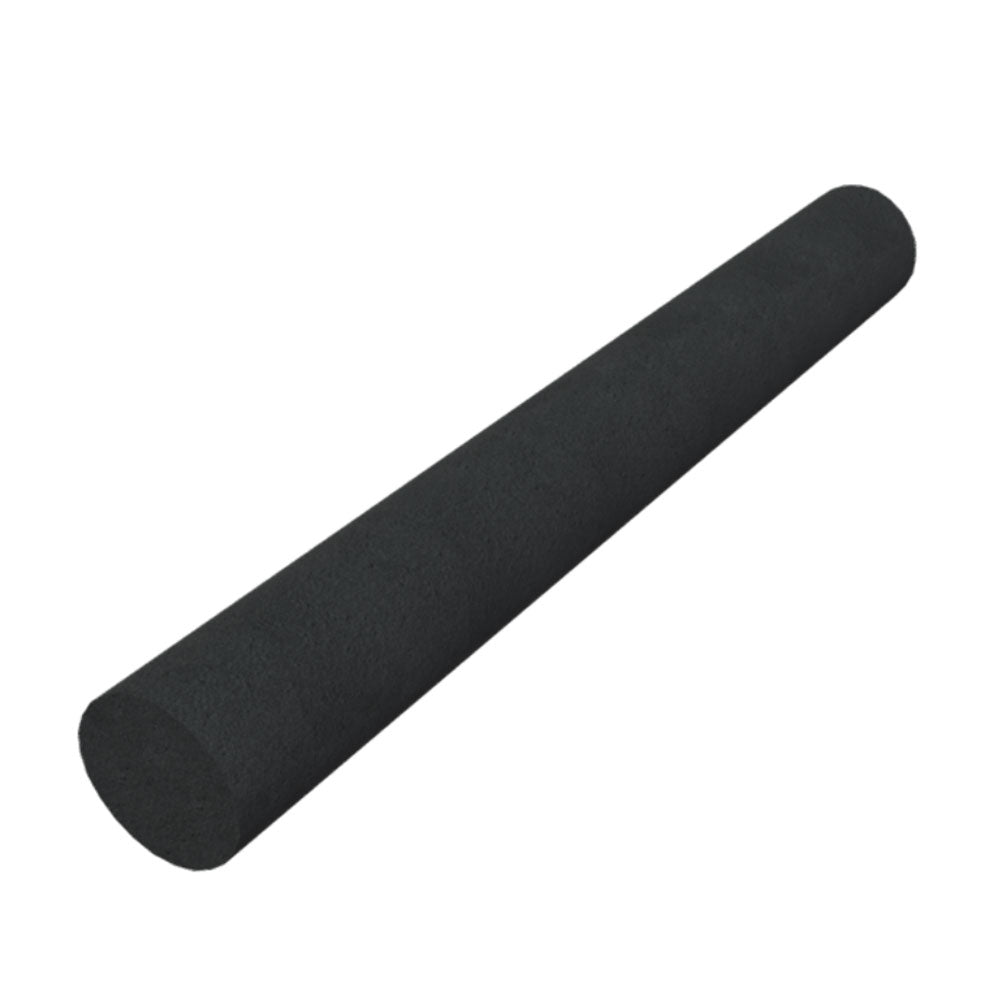

Round Acoustic Hanging Baffles - Obsidian

Suspended circular acoustic baffles in Obsidian, utilizing Basotect® Ecobalanced Melamine Foam for Class A fire-rated interior sound control with refined architectural impact.

Part Number: TA-017-OBSIDIAN
Get A Quote
View full details

Techlite® Round Hanging Baffles in Obsidian are engineered to provide high-efficiency acoustic absorption while creating a sculptural overhead feature within interior environments. The circular profile softens architectural lines and introduces balance and rhythm into open ceilings, atriums, lobbies, and collaborative spaces. For architects, the system offers a clean suspended solution; for interior designers, it becomes a floating visual element; for sound engineers, it delivers targeted reverberation control in large-volume interiors.

Fabricated utilizing Basotect® Ecobalanced Melamine Foam, these baffles combine lightweight performance with outstanding sound absorption across speech frequencies. Their open-cell structure effectively reduces echo and reverberation buildup in expansive interior spaces where exposed ceilings, glass, and hard finishes often compromise acoustic clarity. The material is Class A fire-rated per ASTM E 84, supporting life-safety compliance in commercial and institutional applications.

Suspended vertically from ceilings, the round geometry maximizes exposed surface area, allowing sound waves to interact with both faces of the panel. This dual-sided absorption improves acoustic efficiency without requiring full ceiling coverage, making it an effective solution for retrofit projects, performance venues, education facilities, hospitality interiors, and corporate environments. Additionally, the material composition may contribute toward LEED credits in areas such as low-emitting materials and environmental impact transparency.

Obsidian Coloration & Visual Character

Obsidian is a deep, dark charcoal acoustic foam with subtle blue undertones. Depending on lighting conditions, it can range from a rich charcoal gray to a dark navy hue—and when installed in high ceilings or low-light environments, it presents as visually black.

The result is an acoustic material that integrates seamlessly into contemporary architecture while delivering the performance Techlite® is known for. For applications requiring an ultimate, rich black appearance, Obsidian panels may be coated utilizing Techlite®’s proprietary paint system.

[Pictured Right: Obsidian foam color under various interior lighting]




Sound Absorption Coefficient [Sabins / ft²]

Finish Thickness [in] 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
White 1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
Light Grey 1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Obsidian
(Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)
1.50 0.17 0.28 0.86 0.99 1.02 1.02 0.79 0.80 A
2.00 0.20 0.51 1.05 1.05 1.03 1.05 0.91 0.90 A
3.00 0.36 0.90 1.24 1.04 1.02 1.09 1.05 1.05 A
Absorption results tested in accordance to ASTM C 423-09a

Sound Absorption

Sound Absorption Testing to ASTM Standard C-348-85 indicates a better than 90% absorption coefficient at a frequency of 2000 Hz when using 2” thick TECHLITE foam. Combined with a Class A fire rating, excellent thermal insulating value, its light weight and low toxicity, TECHLITE is an excellent choice for your application.

*The information contained in this data sheet derives from accredited laboratory tests, but without warranty. The physical properties are typical values and intended for reference only. They are not specifications. Recommended uses are based on testing, but it is always recommended the customer evaluate the product suitability under their actual process conditions.

Additional Information

Benefits and Highlights

  • Open-cell, fiber-free melamine foam core
  • Lightweight, easy, flexible installation
  • Architecturally decorative
  • Tested in accordance with ASTM C423-17 for Sound Absorption
  • ASTM E 84 Class A (Official test results pending; performance expected to align with TECHLITE® light gray melamine foam.)
  • Highly Sound-Absorptive (Apparent NRC 0.85 @ 6″ diameter, 24″ long)
  • High Light Reflectance
  • Increased speech intelligibility and overall comfort


Uses and Applications

  • Fitness facilities
  • Restaurant / Bars
  • Auditoriums
  • Lobbies
  • Office Buildings
  • Indoor Aquatic / Swimming Pools
  • Gymnasiums
  • Indoor Gun Range


Specifications

  • Size: 6" x 24", 4" x 24", 4" x 48", 6" x 12", 6" x 18", 6" x 36", Custom
  • Color: Obsidian
  • Coating Options: Pitch Black
  • Thickness: 4", 6", Custom
  • Material: Basotect® EcoBalanced Melamine Foam
  • Minimum Service Temp: -40°F
  • Maximum Service Temp: 350°F
  • Density: 0.53 +/- 0.09 lb/ft3
  • Fire Rating: Official test results pending; performance expected to align with TECHLITE® light gray melamine foam. ASTM E 84 Class A | Flame Spread Index = 10 / Smoke Developed Index = 55
